Atomic Emission Spectroscopy

Atomic Emission Spectroscopy (AES) is a technique that utilises light emissions from atoms to detect elements. Each element emits a distinct spectrum, making AES essential for accurate elemental analysis in laboratories, environmental monitoring, and forensic investigations.

Understanding Emission Spectra

• Emission Spectrum Basics:
  • An emission spectrum consists of a unique set of wavelengths emitted by elements, functioning like a fingerprint.

• Element Identification:
  • To identify elements:
    • Capture the emission spectrum of the sample.
    • Observe the position and intensity of spectral lines.
    • Compare these observations with known elemental spectra.

Excitation Process

• Atom Excitation:
  • Atoms are excited by energy sources such as thermal energy or electric discharge, prompting electrons to shift to higher energy levels.
  • Electrons absorb energy and transition to outer shells.
  • Example: Similar to heating iron and observing it glow as its atoms become energised.

Role of Temperature and Energy Sources

• Effect on Photon Emission:
  • Higher temperatures enhance electron excitations, analogous to how heat vaporises water into steam, increased energy elevates excitation levels in atoms.
  • Practical applications in laboratories:
    • Electric Discharge: Highly efficient for energy provision.
    • Thermal Energy: Effective when applied at higher temperatures.

Mathematical Foundations

Simplified Explanation of Formula

• The Formula: The relationship between energy and wavelength is: $E = \frac{hc}{\lambda}$

Breakdown Simplified:

• Photon Energy ($E$): The energy carried by light particles.
• Planck's Constant ($h$): $6.626 \times 10^{-34} \text{ m}^2\text{ kg/s}$.
• Speed of Light ($c$): $2.998 \times 10^8 \text{ m/s}$.
• Wavelength ($\lambda$): The distance from one wave peak to the next.

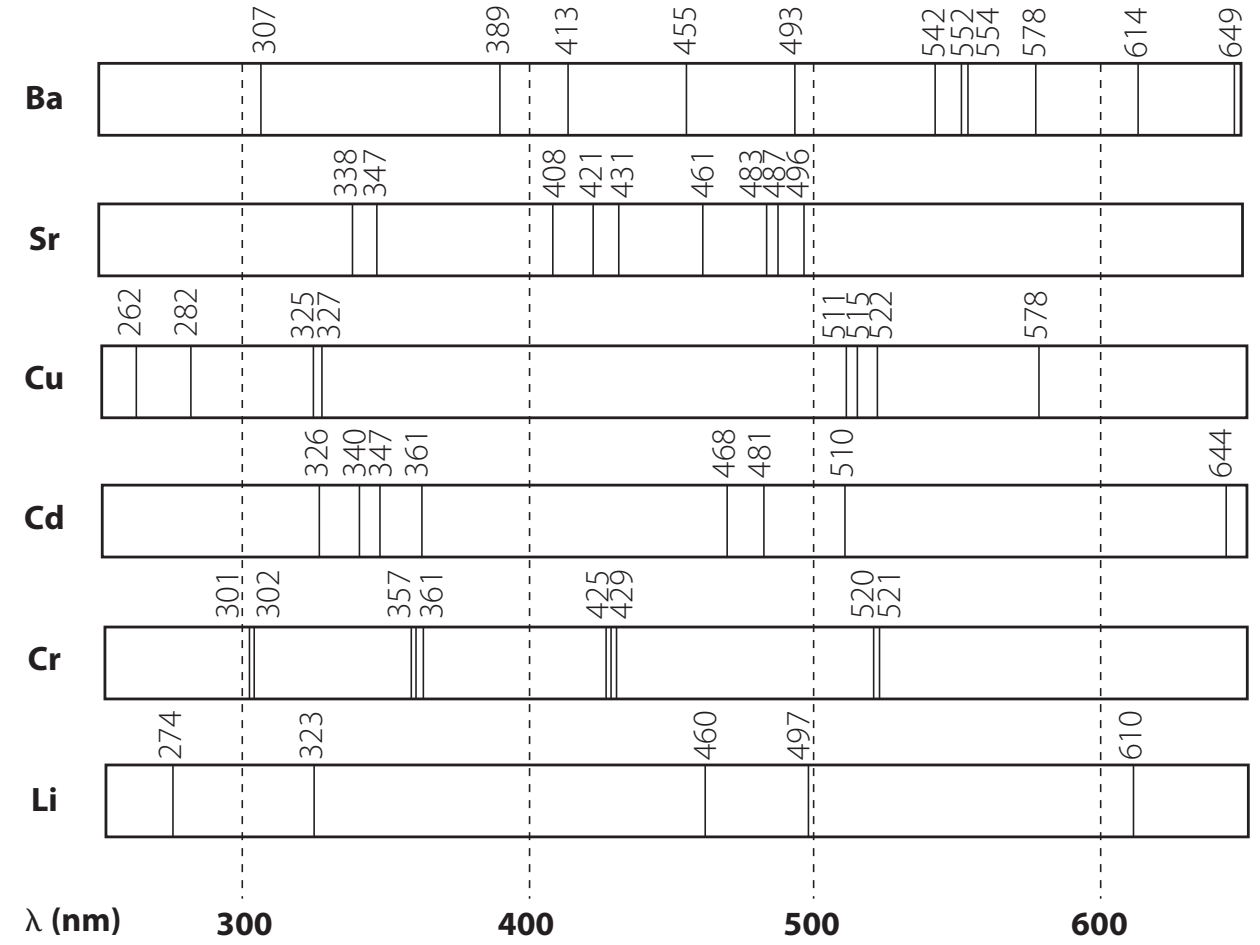

Spectral Line Formation and Element-Specific Spectra

• Photon Emission and Spectral Lines:
  • When excited electrons return to lower levels, they emit photons.
  • This creates unique spectral lines with specific energies as electrons transition.

• Understanding Unique Spectral Lines:
  • Different transitions result in distinct spectral lines, enabling precise analysis.
  • AES relies on spectral "fingerprints" for accurate element identification.

Instrumentation and Techniques

AES Instrumentation

• Significance:
  • Understanding AES components is vital for enhancing analytical precision.
• Excitation Sources:
  • Flame: Uses heat to excite atoms. Traditional yet relevant.
  • Electric Discharge: Offers higher sensitivity, beneficial for detailed analyses.
  • Plasma: A modern advancement, facilitating broad-spectrum analysis.

Monochromator and Detectors

• Monochromator: Filters emitted radiation to isolate specific wavelengths, improving accuracy.

• Detectors Used in AES:
  • Photomultiplier Tubes (PMTs): Amplify signals from weak light emissions. Highly sensitive.
  • Charge-Coupled Devices (CCDs): Capture multiple wavelengths simultaneously, providing comprehensive data.
  • Photodiode Arrays (PDAs): Enable rapid data collection, adaptable in various contexts.

Factors Influencing Emission Intensity

• Impact of Temperature and Sources:
  • Temperature and type of excitation significantly influence the intensity of emitted spectral lines.

Advantages and Limitations of AES

Advantages

• Sensitivity and Detection Limits: AES is highly sensitive, allowing for the detection of low concentration levels.
• Multi-element Capability: Conducts simultaneous analysis of multiple elements, enhancing efficiency.
• Speed and Throughput: Provides rapid analysis, ideal for processing large sample volumes.
• Minimal Sample Preparation: Saves time and effort.
• Versatility in Various Fields: Applicable in environmental monitoring, metallurgy, and the pharmaceutical industry.

Limitations

• Spectral Interference: Overlapping spectral lines, akin to hearing a friend in a noisy room.
• Instrumentation Requirements: Needs advanced detectors, increasing costs.
• Need for Skilled Operators: Essential for accurate interpretation of spectra.
