Physical States and Transitions

Understanding compressibility, particle arrangement, and phase transitions is essential in both scientific contexts and everyday applications. This note examines solids, liquids, and gases, along with their behaviours during transitions such as melting, boiling, and sublimation.

Characteristics of Solids, Liquids, and Gases

Solids

• Feature: Fixed shape and volume
  • Description: Particles are arranged in a crystalline lattice, ensuring rigidity.
  • Strong intermolecular forces maintain the structure despite minor vibrations.
  •

Liquids

• Feature: Indefinite shape, definite volume
  • Description: A close yet fluid particle arrangement allows liquids to conform to the shape of their containers.
  • Viscosity: Affects flow and varies with temperature.
  •

Gases

• Feature: Indefinite shape and volume
  • Description: Particles are widely spaced, allowing for easy compression and diffusion.
  •

Understanding Compressibility

Terms

• Compressibility: The capacity to decrease in volume when subjected to pressure.
• Intermolecular Forces: Forces that influence particle packing and compressibility.
•

Characteristics by State

• Solids: Generally incompressible due to their dense lattice structure.
• Liquids: Nearly incompressible, with slight variations due to temperature and viscosity.
• Gases: Highly compressible owing to significant particle spacing.

Phase Transitions and Energy Dynamics

Key Transitions

• Melting/Freezing: Energy exchange changes a solid to a liquid and vice-versa.
• Boiling/Condensation: Transforms a liquid into a gas with energy input and reverses with energy release.
• Sublimation/Deposition: Direct transitions between solid and gas states without traversing the liquid phase.

Importance of Energy

• Endothermic and Exothermic Processes:
  • Endothermic: Absorb heat, increasing potential energy to facilitate transitions (e.g., melting).
  • Exothermic: Release heat, leading to bond formation (e.g., freezing).
• Thermodynamics and Entropy: Monitor disorder and energy to predict behaviour.
  •

Calculations

• Specific Heat: $q = mc\Delta T$ for determining energy required for temperature change.

• Latent Heat: $Q = mL$ for energy involved in phase change.

  infoNote

  Worked Example: Calculate the energy required for transitioning 50g of ice at -10°C to steam at 110°C.

  Step 1: Calculate energy to heat ice from -10°C to 0°C $q_1 = mc\Delta T = 50\text{ g} \times 2.09\text{ J/g°C} \times 10\text{°C} = 1045\text{ J}$

  Step 2: Calculate energy to melt ice at 0°C $q_2 = mL_f = 50\text{ g} \times 334\text{ J/g} = 16700\text{ J}$

  Step 3: Calculate energy to heat water from 0°C to 100°C $q_3 = mc\Delta T = 50\text{ g} \times 4.18\text{ J/g°C} \times 100\text{°C} = 20900\text{ J}$

  Step 4: Calculate energy to vaporise water at 100°C $q_4 = mL_v = 50\text{ g} \times 2260\text{ J/g} = 113000\text{ J}$

  Step 5: Calculate energy to heat steam from 100°C to 110°C $q_5 = mc\Delta T = 50\text{ g} \times 2.01\text{ J/g°C} \times 10\text{°C} = 1005\text{ J}$

  Total energy: $q_{total} = q_1 + q_2 + q_3 + q_4 + q_5 = 152650\text{ J} = 152.65\text{ kJ}$

Addressing Misconceptions

Common Misunderstandings

• Phase vs. Chemical Changes: Phase changes do not result in new substances.
• Temperature Stability: During phase changes, energy alters potential rather than kinetic energy, explaining temperature stability.
• Pressure's Role: Boiling point decreases at higher altitudes, and evaporation is not solely pressure-dependent.
• Compressibility in Gases: Determined by greater particle spacing as opposed to solids or liquids.

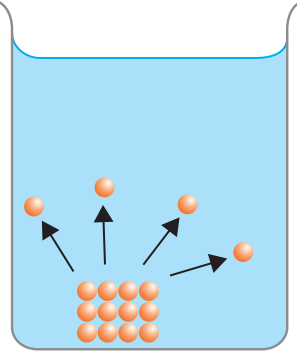

Use diagrams for clarification:

•
