Covalent Network Solids

Structure and Properties

• Definition: Covalent network solids: Comprising atoms interconnected by covalent bonds in an extended network, these materials do not form discrete molecules. This characteristic results in unique properties such as high melting points and significant hardness.

• Key Characteristics:
  • High Melting Points: The strong covalent bonds in these materials require considerable energy to break, leading to very high melting points.
    • Examples:
      • Diamond: Known for its unmatched hardness.
      • Silicon Dioxide: Utilised in construction for its strength.
  • Hardness: Materials such as diamond exhibit exceptional hardness due to tightly bonded atomic structures forming a 3D lattice.
  • Electrical Insulating Properties: The lack of free electrons renders these materials effective insulators.
    • Example: Silicon dioxide is often employed for its insulating capabilities.

Structural and Chemical Nuances

• Absence of Discrete Units: This aspect distinguishes covalent network solids from molecular solids, influencing macroscopic properties such as hardness and structural stability.

  • Example: Diamond and graphite showcase contrasting properties due to their different atomic structures.

• Unique Physical Properties: Emerge from the elaborate 3D lattice formations. A comparison with graphite highlights distinct behaviours arising from diverse atomic configurations.

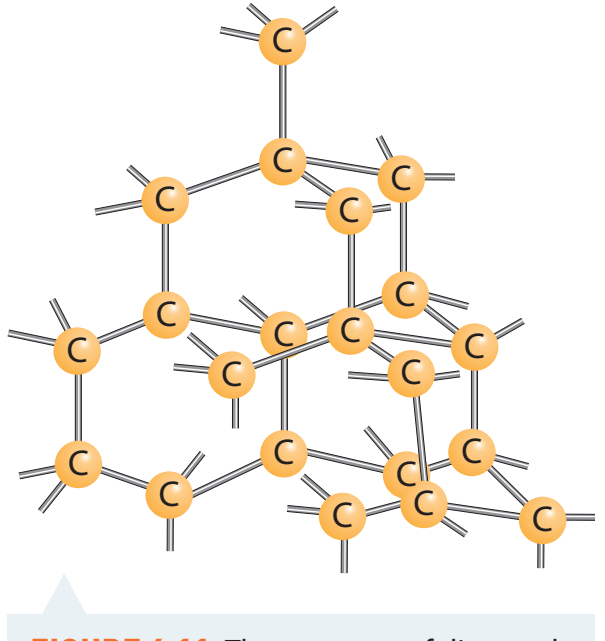

Structure of Diamond

Introduction

Diamond: A prime example of covalent network solids, celebrated for its superior hardness and thermal conductivity, making it indispensable in precision tools like cutting instruments.

Atomic Arrangement

• Diamond's structure features a tetrahedral arrangement of carbon atoms, resulting from sp³ hybridisation.
• sp³ hybridisation: Occurs when one s orbital and three p orbitals from carbon atoms combine to form four equivalent hybrid orbitals.

Bonding and Geometry

• Each carbon-carbon bond in diamond maintains angles of 109.5°, crucial for preserving its rigid structure.
• Diamond: Non-conductive due to the lack of free electrons; graphite, conversely, conducts electricity via free-moving π-electrons.

Comparison with Graphite

• Graphite possesses a layered, conductive architecture facilitated by sp² hybridisation.
• Exam Tip: Clarify why graphite's conductive nature makes it appropriate for electrode use, unlike diamond.

Importance in Chemistry

• Strong Interatomic Connections: Understanding these is vital for grasping materials with extreme properties and their applications across industries.
  • Applications:
    • Electronics: Serve as insulators in semiconductor technology.
    • Construction: Provide durability and stability in building materials.

Properties of Silicon Dioxide

Overview

• Silicon Dioxide (SiO₂): A prevalent covalent network solid, especially in the Earth's crust as quartz.
• Key Role: Integral in natural and industrial contexts, used in construction materials and electronic components.

Key Properties

• Hardness and Melting Point: Stems from robust Si-O covalent bonds.
• Electrical Conductivity: SiO₂ acts as a poor conductor, ideal for insulation purposes.
• Chemical Inertness: Highly resistant to many reactions, essential from glassmaking to ceramics.

Key Investigation Techniques

• X-ray Diffraction (XRD): Identifies structural formations within covalent networks, elucidating atomic arrangements.
• Nuclear Magnetic Resonance (NMR): Assesses local bonding conditions.
• Scanning and Transmission Electron Microscopy (SEM/TEM): Offers detailed, high-resolution imagery.

Practical Relevance

• Mastering these techniques aids in forecasting heat and electrical behaviour.
• Combined, XRD and TEM present an extensive understanding of structures and applications.

Problems and Practice Questions

1. Describe the structure and properties of covalent network solids, focusing on diamond and SiO₂.
   • Solution: Covalent network solids like diamond and SiO₂ feature extensive 3D networks of atoms connected by strong covalent bonds. This structure gives them distinctive properties including extreme hardness (especially in diamond), very high melting points (>1000°C), and electrical insulating properties. In diamond, each carbon atom forms four covalent bonds in a tetrahedral arrangement, while in SiO₂, silicon atoms bond with oxygen atoms in a three-dimensional network. Their rigid structures prevent free electron movement, explaining their non-conductive nature despite being composed of elements that might otherwise conduct electricity.

Conclusion

The distinctive properties of covalent network solids, exemplified by diamond and SiO₂, result from their extensive covalent bonding networks. This uniqueness facilitates their use across various industries, from electronics to cutting tools. A thorough understanding of these properties and their molecular structures is crucial for exams and industrial pursuits alike.
