Charles's Law

Charles's Law : represents the direct relationship between the volume of a gas and its absolute temperature while maintaining constant pressure.

Historical Context

• Jacques Charles (1780s):

  • A pioneer in gas studies.
  • Conducted extensive research to demonstrate the effects of temperature on gas volume.
  • His work laid the fundamental principles that define Charles's Law.

• Joseph Louis Gay-Lussac (early 1800s):

  • Validated Charles's experiments.
  • Instrumental in disseminating Charles's Law's importance within scientific circles.
  • Emphasised its practical implications for understanding gas behaviours.

Key Formula

• Proportional Relationship: $V \propto T$
• Equation: $\frac{V_1}{T_1} = \frac{V_2}{T_2}$

Worked Example:

• Scenario: $V_1$ = 3.0L, $T_1$ = 300K, $T_2$ = 360K
• Calculate: New Volume $V_2$

$\frac{3.0}{300} = \frac{V_2}{360}$

• Step 1: Multiply both sides by 360K:

$V_2 = 3.0 \times \frac{360}{300}$

• Step 2: Calculate to find $V_2 = 3.6L$

Temperature Scales:

Understanding Absolute Temperature

• Kelvin Scale:
  • Begins at absolute zero ($-273.15^\circ$C), devoid of thermal energy.
  • Essential for gas laws, providing a baseline reference point.

Common Misconceptions

• Conversion Error: Incorrectly using Celsius instead of Kelvin may result in errors.

Simple Conversion Exercise:

• Convert 25°C -> 25 + 273.15 = 298.15K

• Ideal Gas Reality:

  • Under conditions of high pressure and low temperature, real gases differ from ideal behaviour.

Interactive FAQ:

• Q: Why is Kelvin the preferred scale?
  • A: It ensures an absolute starting point needed for accuracy.
• Q: Do real gases strictly follow Charles's Law?
  • A: Not exactly; deviations may occur due to varying environmental conditions.

Overview of the Ideal Gas Law

Ideal Gas Law: Integrates gas pressure, volume, temperature, and moles to describe an ideal gas's behaviour.

Equation: $PV = nRT$

• Components:
  • $P$: Pressure
  • $V$: Volume
  • $n$: Moles of the gas
  • $R$: Universal gas constant
  • $T$: Temperature (in Kelvin)

Real-world analogy: Balloon Inflation

• As air is inflated into a balloon, size change is observed.
• In a sealed balloon, increased pressure and temperature cause volume expansion according to the Ideal Gas Law.

Enhanced Derivation

• Start with: $PV = nRT$

• Conditions: Constant Pressure $P$ and Moles $n$.

• Derivation Steps:

  • Rearrange: $V = \frac{nR}{P} \cdot T$
  • Conclude: $V \propto T$
  • Express with datasets: $\frac{V_1}{T_1} = \frac{V_2}{T_2}$

• Worked Example:

  • Consider a balloon containing 2.5 L at 300 K. The temperature rises to 400 K.
  • Using $\frac{V_1}{T_1} = \frac{V_2}{T_2}$:
  • Calculate: $V_2 = \frac{V_1 \cdot T_2}{T_1} = \frac{2.5 \cdot 400}{300} = \frac{1000}{300} \approx 3.33$ L.

Graphical Representation and Experiments for Charles's Law

Volume-Temperature Graph and Its Interpretation

Linear Relationship

• Graphs of Charles's Law depict Volume (V) against Temperature (T) on a Kelvin scale as straight lines.
• The line intersects the x-axis at absolute zero (0 Kelvin).

Key Features of the Graph

• Slope:
  • Symbolises the constant k in $V = kT$.
  • Greater slope signifies a larger constant.
• Intersection:
  • Graph meets the x-axis at absolute zero, implying zero volume.
  • Example Scenario: A balloon significantly shrinks when placed in a freezer due to reduced temperature lowering the gas volume.

Creating a Visual Aid

Graph Plotting Steps

• Procedure:
  • Label axes: Volume in litres, Temperature in Kelvin.
  • Start at absolute zero.
  • Choose an appropriate range to reveal trends.

Classroom Experiment Setup

Materials Needed

• Required Materials:
  • Syringes
  • Water baths
  • Thermometers
  • Gas samples
• Alternatives: Use available resources like plastic syringes.

Step-by-Step Procedure

• Preparation:
  • Fill the syringe with a fixed gas volume.
  • Utilise a water bath to vary temperatures.
• Measurement:
  • Obtain accurate volume measurements.
• Safety Precautions:
  • Handle hot water and equipment with caution.

Data Collection and Analysis

Data Recording

• Template for Entry:
  • Ensure meticulous data recording.
  • Document anomalies diligently.

Graphical Analysis

• Plot and Analyse Data:
  • Observe the trends to verify adherence to Charles's Law.

Important Discussion Points

Graph Analysis

• Discussion:
  • Analyse trends and linearity.
  • Address deviations due to experimental errors.

Absolute Zero Concept

• Further Explanation:
  • Graph extensions indicate absolute zero implications.
  • Example: Discuss the notion of absolute zero as an unattainable concept practically.

Theoretical vs Experimental

• Dialogue:
  • Explore differences between theoretical expectations and observed data.
  • Discuss potential sources of experimental errors or deviations.

Integrate interactive discussions and inquiries throughout to engage students actively. Consider examining Charles's Law's practical implications in everyday contexts to enhance comprehension further.

Introduction to Real-World Applications

Charles's Law: For a fixed gas amount at constant pressure, the volume is directly proportional to its absolute temperature (Kelvin). This principle is significant in numerous technological and industrial applications. Here are some examples:

Hot Air Balloons

• Function: Charles's Law elucidates how heating or cooling impacts a balloon's buoyancy.
  • Mechanism: Heating the air inside the balloon causes expansion, decreasing density, and allowing the balloon to rise. Conversely, cooling contracts the air, reducing buoyancy, and causing descent.
  • Safety: Safe operation requires precise temperature control to manage altitude effectively and prevent abrupt directional shifts.

Automotive Engines

• Application: Charles's Law is crucial for understanding engine operations.
  • Efficiency: In engines, ignition increases the gas temperature within cylinders, expanding the volume and driving pistons to enhance efficiency.

Refrigeration and Air Conditioning

• Refrigeration Cycle: Relies on adjusting refrigerant volumes through temperature variations.
  • Environmental Considerations: The choice of refrigerant type is pivotal for minimising environmental effects; modern refrigerants aim for greater environmental compatibility.

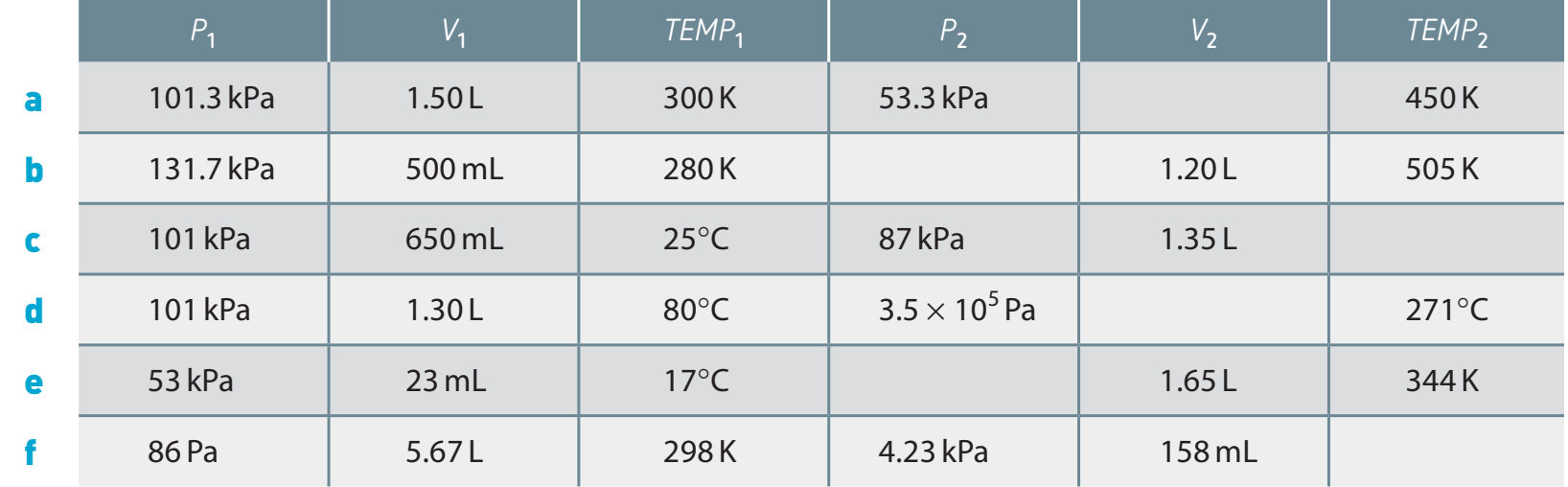

Practice Problems and Solutions

Sample Problems

• Volume Calculation:
  • Problem 1: A gas at 300K with a volume of 2L. What is the volume at 350K, given constant pressure?
    • Solution: Using $\frac{V_1}{T_1} = \frac{V_2}{T_2}$
    • $\frac{2L}{300K} = \frac{V_2}{350K}$
    • $V_2 = 2L \times \frac{350K}{300K} = 2.33L$
• Balloon Inflation Assessment: Does a balloon inflating from 1m³ to 1.2m³ as the temperature increases from 20°C to 30°C conform to Charles's Law?
  • Solution: Converting to Kelvin:
  • T₁ = 20°C + 273.15 = 293.15K
  • T₂ = 30°C + 273.15 = 303.15K
  • Using Charles's Law: $\frac{V_1}{T_1} = \frac{V_2}{T_2}$
  • $\frac{1m³}{293.15K} = \frac{1.2m³}{303.15K}$
  • $\frac{1.2m³}{303.15K} \times 293.15K = 1.16m³$
  • Since 1.16m³ ≈ 1.2m³ (accounting for experimental error), the balloon's inflation generally conforms to Charles's Law.

Additional Challenges and Scenarios

Cryogenic Conditions

• Low Temperature Effects: At cryogenic temperatures, gases might liquefy. Understanding diatomic gases' behaviours using Charles's Law helps predict behaviours in extreme conditions.

Non-Ideal Gas Behaviour

• Limitations: Under high pressure or low temperatures, real gases may deviate from ideal behaviour, influencing Charles's Law's predictions.

Industry Benefits

Industries

• Aerospace: Applying Charles's Law enhances fuel efficiency and pressure control in aircraft systems.
• HVAC Systems: Utilising gas laws promotes energy conservation in heating and cooling systems.
• Chemicals: Gas behaviour knowledge aids reaction control and storage design improvements.
