Chemistry - Esters

Definition and Properties of Organic Acids and Bases

Definitions

• Organic Acids with Carboxyl Group (-COOH): Function as proton donors. Example: Ethanoic acid.
• Organic Bases with Amine Group (-NH2): Operate as proton acceptors. Example: Ammonia.

Organic Compound	Functional Group	Example	Role
Organic Acid	Carboxyl (-COOH)	Ethanoic Acid	Proton Donor
Organic Base	Amine (-NH2)	Ammonia	Proton Acceptor

Functional Groups and Acidity/Basicity

• The resonance of the carboxyl group enhances the acidity of organic acids.
• Nitrogen's lone pairs in amines increase their basic nature.
• Highlighted: Bronsted-Lowry theory provides a framework for assessing acid-base strength, which is crucial in chemistry labs and applications.
• Application Example: Vinegar's acidity, attributed to its carboxyl group, is beneficial in both cooking and cleaning.

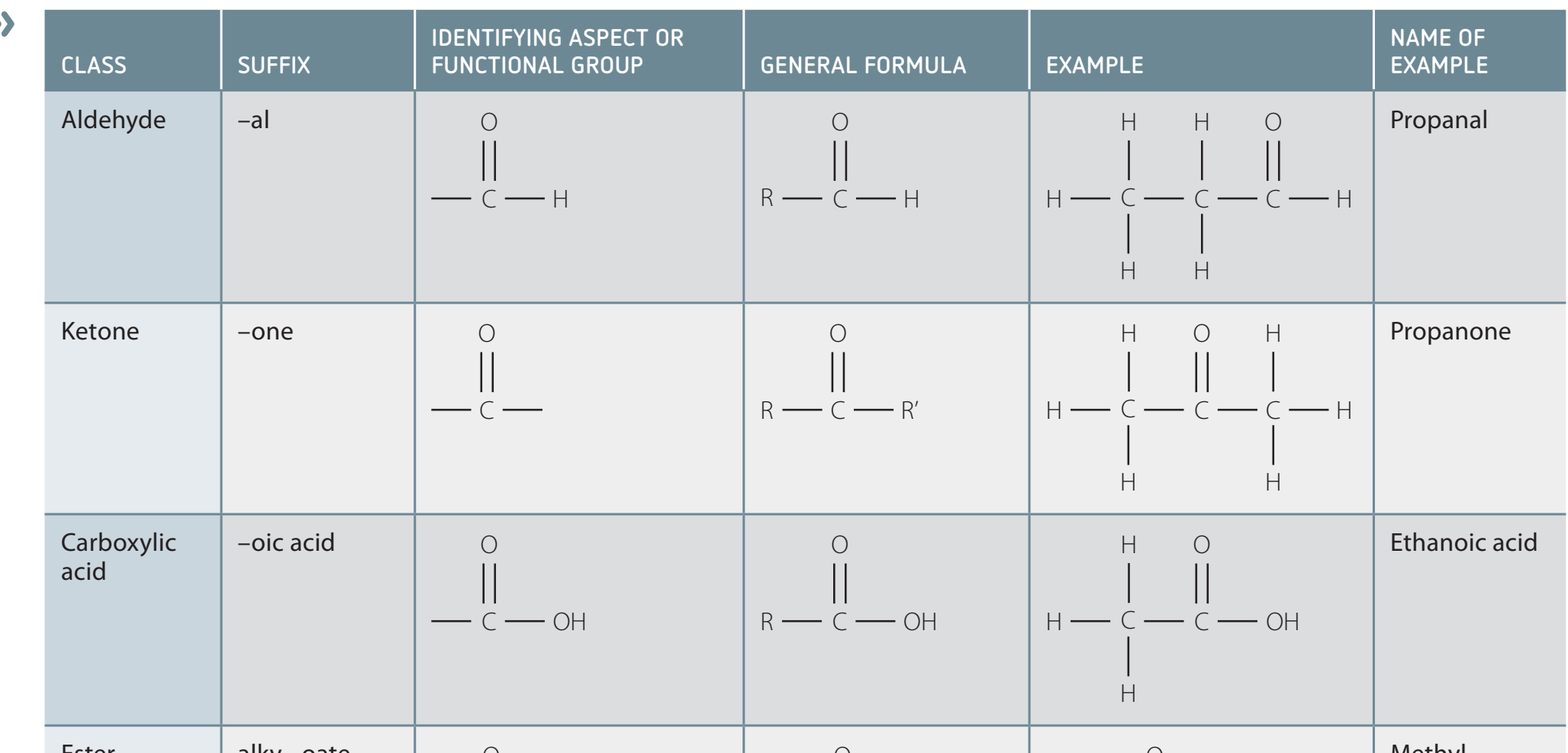

Structural Formulas and Common Examples

• Ethanoic Acid (Structural Formula):

Visual Depictions of Hydrogen Bonding and Lone Pairs

Hydrogen Bonding in Acids

• Hydrogen bonding in carboxylic acids increases their acidity and solubility.

Lone Pairs in Bases

• Illustration of lone-pair interactions assisting proton acceptance in amines.

Comparative Visuals

• Diagram comparing hydrogen bonding between alcohols and acids, focusing on intermolecular forces and boiling points.

Practical Questions

• Why is the carboxyl group more acidic compared to alcohols?
• How does hydrogen bonding affect the solubility of organic acids?
• Describe the role of lone pairs in amine bases during proton transfer.

Interactive Exploration

• Identify everyday items at home that serve as organic acids or bases, such as vinegar or cleaning ammonia, to explore real-world applications.

Definition of Esters as Organic Compounds

• Esters are compounds formed when an organic acid reacts with an alcohol.
• Ester Linkage (RCOOR') : This structural feature is fundamental in determining their chemical characteristics.

Esterification Process

• Reaction Mechanism:
  • A condensation reaction occurs, where an alcohol and acid join to produce an ester and water.
  • Nucleophilic Attack: Picture this as assembling LEGO pieces. The slightly negative oxygen in the alcohol targets the slightly positive carbon in the acid, leading to the formation of an ester and water.

• Role of Catalysts:
  • Sulphuric Acid is often used to accelerate the reaction, facilitating the 'LEGO fitting' process without being consumed.
  • Reaction Conditions: Appropriate conditions, like temperature, are crucial for successful esterification.

• Chemical Equilibrium:
  • Consider a see-saw: altering conditions can sway the balance towards increased ester production.

• Equation Writing:
  • Example with ethyl acetate formation: $\text{CH}_3\text{COOH} + \text{C}_2\text{H}_5\text{OH} \rightarrow \text{CH}_3\text{COOC}_2\text{H}_5 + \text{H}_2\text{O}$
  • Steps:
    • Identify reactants and products.
    • Balance the equation by ensuring an equal number of each type of atom on both sides.

Practice Questions

• Equations for Practice: Develop balanced equations for ester formation, such as ethyl acetate.
  • Solution: $\text{CH}_3\text{COOH} + \text{C}_2\text{H}_5\text{OH} \rightarrow \text{CH}_3\text{COOC}_2\text{H}_5 + \text{H}_2\text{O}$
• Conceptual Questions: Evaluate how catalysts impact reaction dynamics and energy necessities.
  • Solution: Catalysts provide an alternative reaction pathway with lower activation energy, allowing the reaction to proceed more quickly without affecting the equilibrium position or energy change.

Key Points

Experimental Setup and Safety Protocols

Materials and Equipment

• Alcohol: Reactant — requires precise measurement.
• Carboxylic Acid: Reactant — handle with care due to volatility.
• Sulphuric Acid: Catalyst — employ gloves and goggles owing to its corrosive nature.
• Reflux Apparatus: Facilitates reaction — ensures controlled reaction conditions.
• Heating Mantle: Provides heat — maintain appropriate temperature.
• Fume Cupboard: Ensures ventilation — essential for safety.
• PPE (Gloves, Goggles): Safety — essential for personal safety.

Experimental Procedure

• Measure Reactants: Employ specific ratios for accuracy.
• Mix Reactants: Combine the alcohol and carboxylic acid in a flask.
• Add Catalyst: Introduce sulphuric acid carefully.
• Secure Setup: Stabilise the apparatus with clamps.
• Begin Heating: Position on the heating mantle and regulate heat.
• Monitor Reaction: Watch for signs of completion:
  • Visual Cues: A colour change to pale yellow or the appearance of layers.
  • Olfactory Cues: A sweet aroma suggests ester formation; unpleasant odours may indicate potential issues.

Troubleshooting and Optimisation

Common Issues During Esterification

• Volatile Loss: Ensure correct sealing and temperature regulation to prevent this.
• Pressure Build-Up: Maintain the reflux apparatus correctly to avoid hazardous pressures.

Optimisation Strategies

• Maximising Yield and Purity:
  • Use precise reactant ratios.
  • Adjust reaction duration if needed.
  • Employ distillation for further purification post-reaction.

Observation-Based Questions

• Q1: Describe two visual indicators that demonstrate reaction completion.
  • Solution: 1) Colour change to pale yellow, 2) Formation of distinct layers in the reaction mixture

Explanation of Protocols

• Q2: Outline procedures for safely managing a chemical spill during the experiment.
  • Solution: 1) Alert others in the vicinity, 2) Contain the spill using appropriate spill kits, 3) Neutralise acids with sodium hydrogen carbonate if needed, 4) Clean up using proper disposal methods, 5) Document the incident

Application Scenario-Based Questions

• Q3: Explain how you would respond to an unexpected pressure build-up during the reaction.
  • Solution: 1) Turn off heat source immediately, 2) Do not attempt to open the apparatus while hot, 3) Allow system to cool completely, 4) Check for blockages in the condenser or outlets, 5) Reassemble with properly functioning equipment before continuing

Enhancements

• Simplify the language for better comprehension by students.
• Emphasise critical steps and safety measures consistently.
• Include key term definitions in context to facilitate learning.

Chemical Equation Balancing and Yield Calculations

Overview of Esterification Reaction:

• Definition: Chemical equation: Illustrates how reactants convert to products.
• In esterification, alcohol combines with carboxylic acid to yield an ester and water.

Step-by-Step Balancing Guide:

• Identify the Participants: Recognise reactants and products (e.g., Ethanol + Acetic acid).

• Count and Balance Atoms: Ensure equal numbers of each atom on both sides (C, H, O).

  • Begin Simply: Start with compounds appearing once in reactants/products.

• Example Process:

  • Write the unbalanced equation: $\text{C}_2\text{H}_5\text{OH} + \text{CH}_3\text{COOH} \rightarrow \text{CH}_3\text{COOC}_2\text{H}_5 + \text{H}_2\text{O}$
  • Balance first the carbon atoms, followed by hydrogen, and finally, oxygen atoms.

• Yield Calculations:

  • Theoretical Yield: The maximum obtainable product if the reaction is perfectly efficient.
  • Actual Yield: The quantity of product actually obtained.
  • Example Calculation:
    • Start with ideal moles; if 1 mole of ethanol reacts with 1 mole of acetic acid, determine moles of methyl acetate expected. Calculate the mass using molar mass.

Equations Table:

• Visual representation of common ester reactions for easy reference.

Interpretation of Results

• Chromatography Techniques:

  • Thin Layer Chromatography (TLC): Rapidly identifies esters by tracking their movement on a plate.
  • Gas Chromatography (GC): Separates mixtures based on volatility, allowing passage through a column.

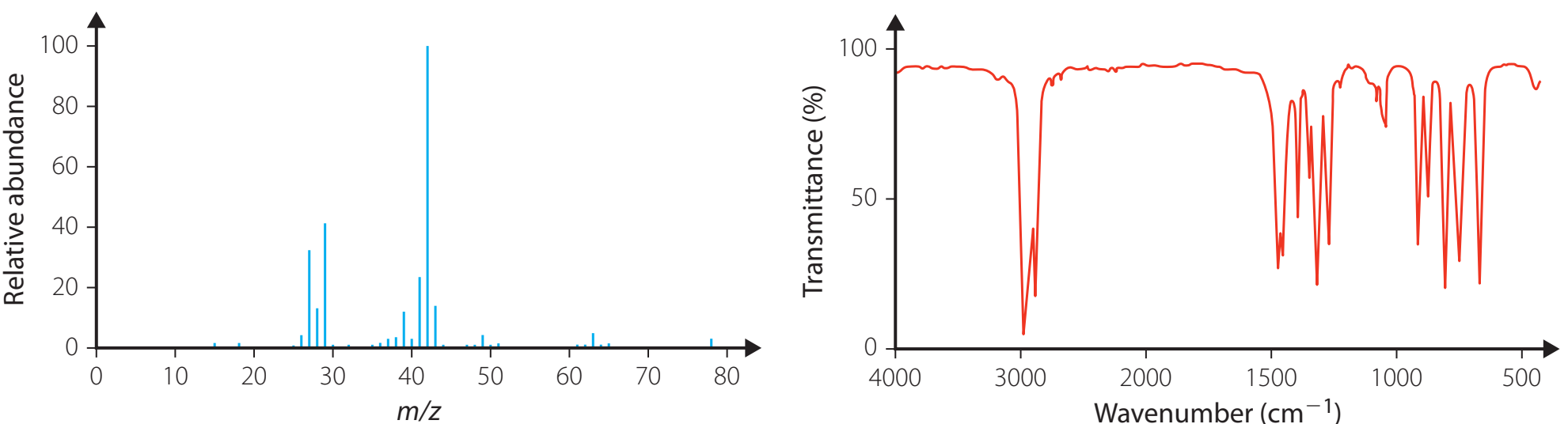

• Spectroscopy Utilisation:

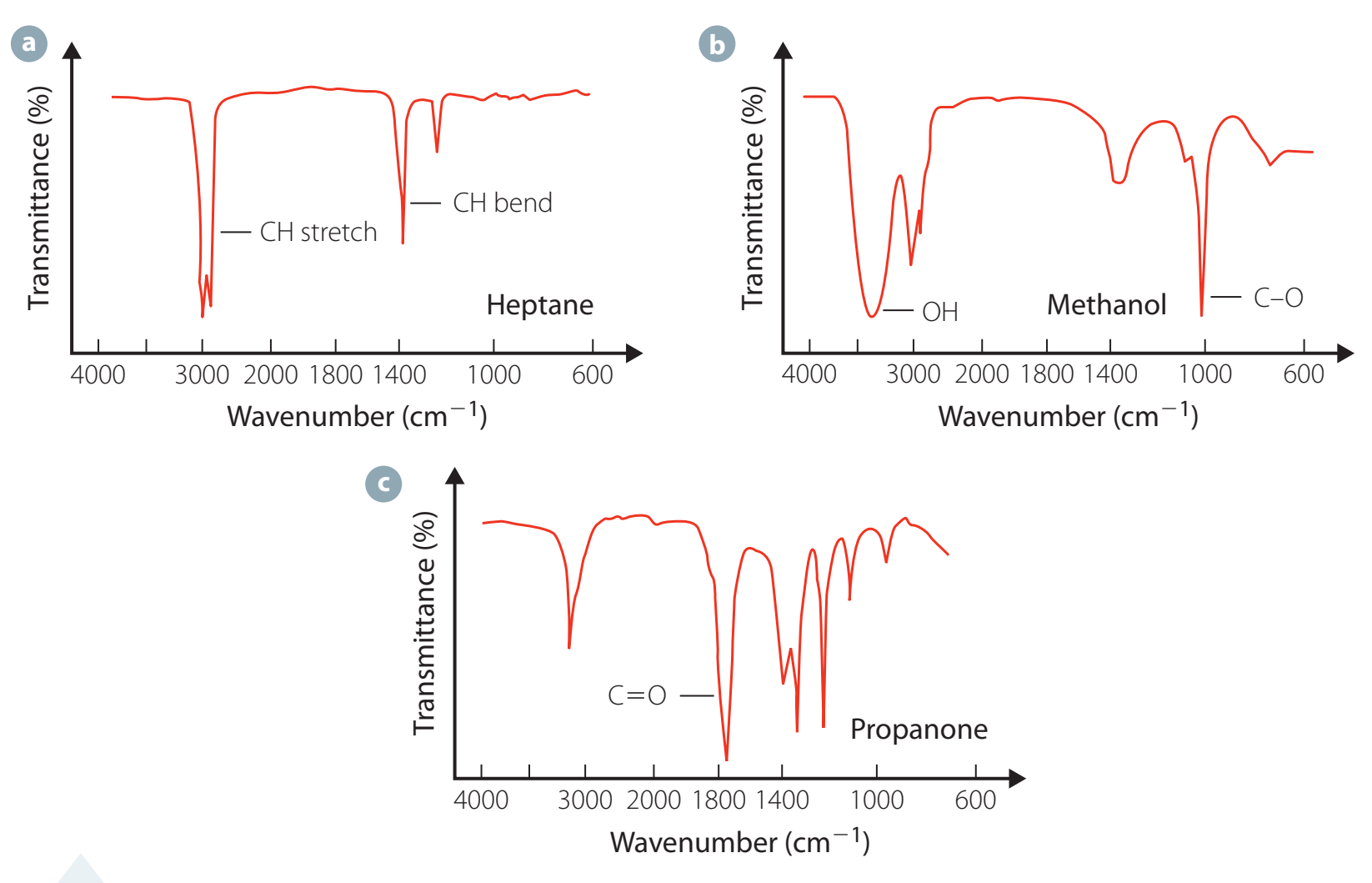

  • Infrared (IR) Spectroscopy: Detects specific functional groups present in esters.
  • Key Spectral Features: An ester usually shows a pronounced peak in the 1735-1750 cm^-1 region.

• Purity Determination:
  • Concentration is calculated using spectroscopy.
  • Chromatograms display purity by the height and area of peaks.

Practice Questions

• Calculation Examples:

  • Start with basic calculations: Determine the yield of ethyl acetate from 2 moles of ethanol.
    • Solution: Since the stoichiometric ratio is 1:1, and assuming ethanol is the limiting reagent, the theoretical yield would be 2 moles of ethyl acetate. If the molecular mass of ethyl acetate is 88 g/mol, the theoretical yield would be 2 mol × 88 g/mol = 176 g.
  • Progress to computing purity from a given IR spectrum peak data.
    • Solution: If a sample shows a characteristic ester peak at 1740 cm^-1 with the expected intensity and no significant impurity peaks, the sample likely has high purity.

• Interpreting Chromatograms:

  • Practice identifying errors by analysing chromatograms for atypical peaks.
    • Solution: Additional peaks appearing at retention times not corresponding to the expected ester indicate impurities. The relative sizes of these peaks compared to the main product peak can be used to estimate percentage purity.

• Worked Example:
  • Problem: Determine molar yield of methyl acetate.
  • Solution: If 0.5 moles of methanol react with 0.5 moles of acetic acid, and 0.4 moles of methyl acetate are produced:
    1. Calculate theoretical yield: 0.5 moles (assuming complete conversion)
    2. Calculate percentage yield: (0.4 moles ÷ 0.5 moles) × 100% = 80%
    3. Therefore, the actual molar yield is 0.4 moles, representing an 80% yield.

Misconceptions and Clarifications

Reaction Rates and Catalysts

• Misconception 1: "Catalysts speed up reactions and change the equilibrium."
  • Clarification:
    • Catalysts increase reaction rates but do not change equilibrium.
    • Sulphuric acid is a commonly used catalyst.
    • Relate to Bronsted-Lowry theory.

• Misconception 2: "Faster reactions yield more products."
  • Clarification:
    • Speed affects the rate, not the equilibrium yield.

Equilibrium Understanding

• Misconception 3: "Reaction completion means no reverse reaction."
  • Clarification:
    • The dynamic nature of equilibrium ensures reactions continue even if they appear complete.

• Misconception 4: "Increasing reactants automatically raises yield, regardless of equilibrium."
  • Clarification:
    • Discuss Le Chatelier's principle.
    • More reactants can shift equilibrium but don't fully dictate yield alone.

Laboratory Challenges and Solutions

Safety and Reaction Setup

• Challenge: Incorrect reflux setup can lead to errors or hazards.
  • Solution:
    • Follow a comprehensive checklist for safe setup.
    • Highlight potential common errors.

• Challenge: Managing pressure and avoiding excessive boiling.
  • Solution:
    • Use diagrams for correct heating and vapour management.

Separation and Optimisation

• Challenge: Ester loss due to volatility during distillation.
  • Solution:
    • Apply correct cooling and distillation methods.

• Challenge: Impure results due to inadequate separation.
  • Solution:
    • Provide a step-by-step guide on purification methods, including the use of drying agents.

Practice Questions

• Conceptual:
  • What is the role of a catalyst in an esterification reaction?
    • Solution: A catalyst (like sulphuric acid) provides an alternative reaction pathway with lower activation energy, allowing the reaction to proceed more quickly without being consumed or affecting the equilibrium position.
• Scenario-Based:
  • Describe the effect on equilibrium when reactant concentration is increased.
    • Solution: According to Le Chatelier's Principle, increasing reactant concentration shifts the equilibrium towards the products, resulting in greater ester formation. However, this doesn't change the equilibrium constant, only the position of equilibrium.
