Predicting Precipitation

Introduction to Precipitation Reactions

What are Precipitation Reactions?

Definition: Precipitation reactions are chemical reactions in which soluble reactants form insoluble products, termed precipitates.

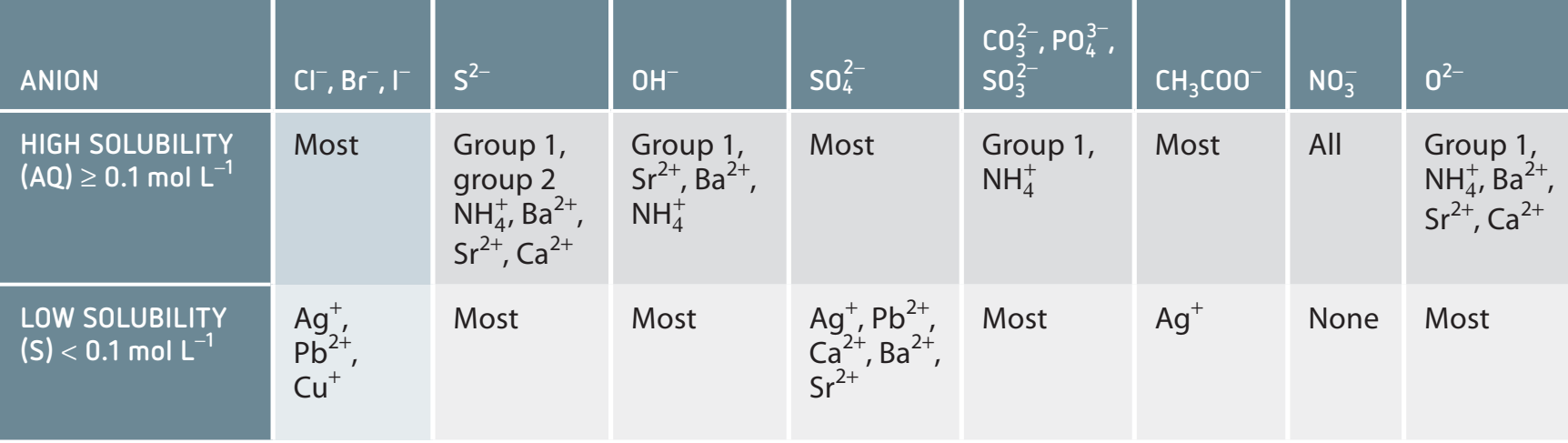

• These reactions rely on solubility rules, which allow the prediction of whether the resulting products will dissolve or not.

Why are They Important?

Industrial Applications

• Utilised in waste management to effectively remove contaminants and impurities.
• Crucial for water purification by forming insoluble substances.

Laboratory Uses

• Vital for ion separation in analytical chemistry.
• Facilitates identification and analysis by yielding specific precipitates for detected ions.

Understanding Solubility

• Solute: The component dissolved in a solution.
• Solvent: The medium in which the solute dissolves.
• Unsaturated: Capable of dissolving more solute.
• Saturated: Incapable of dissolving additional solute.
• Supersaturated: Contains more solute than can usually be dissolved.

This diagram illustrates how the solubility of a substance varies with temperature, highlighting the different states of saturation.

Formation of Insoluble Compounds

• Ions interact in a solution to form insoluble products.

Worked Example: The reaction between silver nitrate and sodium chloride yields a silver chloride precipitate.

• Chemical Equation: $\mathrm{AgNO}_3 (aq) + \mathrm{NaCl} (aq) \rightarrow \mathrm{AgCl} (s) + \mathrm{NaNO}_3 (aq)$

Recognising Precipitation Reactions

• Cloudiness observed in the solution.
• Colour change of the solution.
• Sediment formation at the bottom.

Understanding Molecular Interactions

• Diagrams depict how ions combine to create a lattice structure.

Description: The diagram shows ions approaching each other and ultimately forming an insoluble lattice, resulting in the formation of a precipitate.

Solubility Product Constant (Ksp)

1. Introduction to Ksp

Definition: Solubility Product Constant (Ksp):

• A distinct equilibrium constant that illustrates the solubility of ionic compounds.
• Crucial for predicting precipitation in saturated solutions.

2. Equation and Components

General Formula:

The equilibrium for the dissolution of an ionic compound is expressed as:

$K_{\mathrm{sp}} = [A^+]^m [B^-]^n$

• $[A^+]$ = Concentration of cation in solution
• $[B^-]$ = Concentration of anion in solution
• m, n = Stoichiometric coefficients from the balanced equation

Explanation: These coefficients depict the quantity of ions generated in the solution from one formula unit of the ionic compound.

Example Compounds:

• Lead iodide (PbI$_2$):
  $\mathrm{PbI}_2 (s) \rightleftharpoons \mathrm{Pb}^{2+} (aq) + 2\mathrm{I}^- (aq)$

  • Ksp Expression: $K_{\mathrm{sp}} = [\mathrm{Pb}^{2+}][\mathrm{I}^-]^2$

• Calcium carbonate (CaCO$_3$):
  $\mathrm{CaCO}_3 (s) \rightleftharpoons \mathrm{Ca}^{2+} (aq) + \mathrm{CO}_3^{2-} (aq)$

  • Ksp Expression: $K_{\mathrm{sp}} = [\mathrm{Ca}^{2+}][\mathrm{CO}_3^{2-}]$

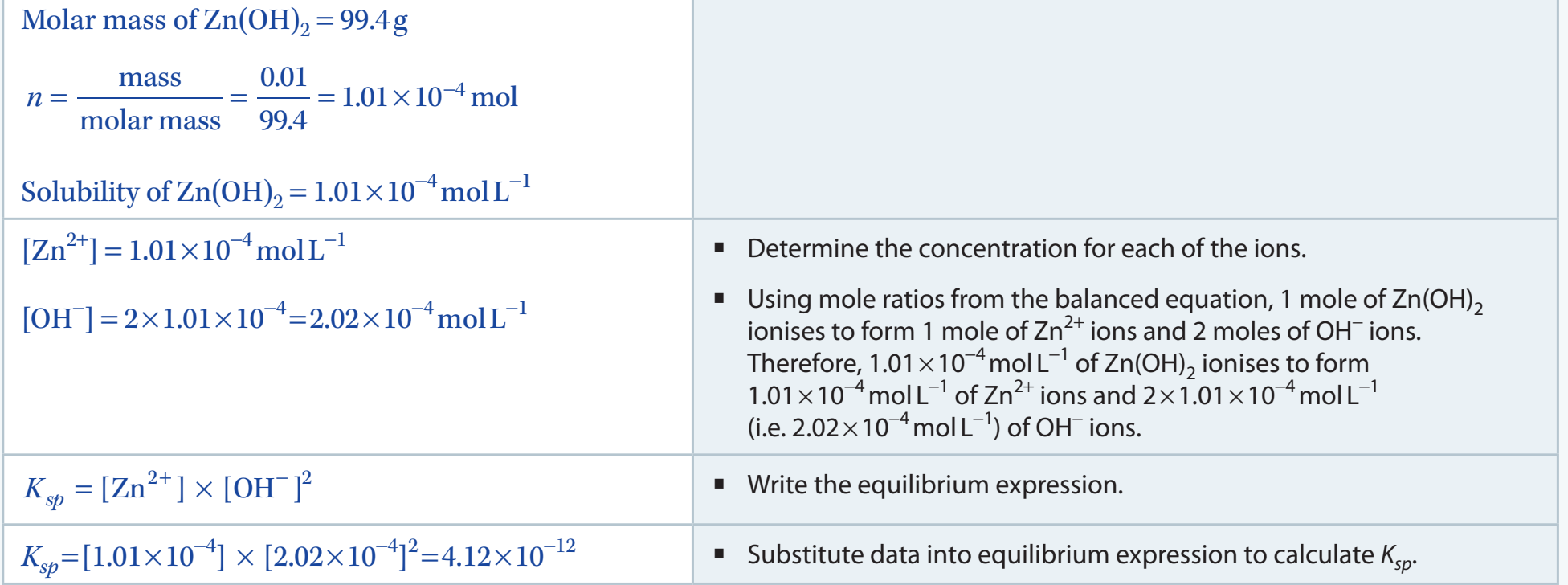

3. Calculating Ksp

Step-by-step Methodology:

• 1. Write the balanced dissolution equation. Highlight cations and anions.

• 2. Set up an equilibrium table. Include initial, change, and equilibrium concentrations.

  Example Equilibrium Table:

  Species	Initial	Change	Equilibrium
  $\mathrm{Pb}^{2+}$	0	+x	x
  $\mathrm{I}^-$	0	+2x	2x

• 3. Insert equilibrium concentrations into the Ksp expression.

• 4. Solve for unknowns if needed.

4. Significance of Ksp in Precipitation Prediction

• Practical Applications:
  • Establishing solubility limits in laboratory settings and industrial processes such as mineral extraction.

5. Common Mistakes and Tips

Common Calculation Errors:

• Misidentifying cation and anion concentrations.
• Confusing stoichiometric coefficients.

Tips for Accuracy:

• Double-check stoichiometry: Ensure accuracy in balanced equations.
• Use known solubility tables to confirm constants.

6. Example Problem with Full Solution

Problem: Will a precipitate form if solutions of 0.01 M Pb(NO$_3$)$_2$ and 0.03 M KI are mixed?

Solution:

• 1. Write the balanced equation:
  $\mathrm{Pb}^{2+} (aq) + 2\mathrm{I}^- (aq) \rightleftharpoons \mathrm{PbI}_2 (s)$
• 2. Calculate the ion product (Q):
  $Q = [\mathrm{Pb}^{2+}][\mathrm{I}^-]^2$
  • Initial concentrations are: $[\mathrm{Pb}^{2+}] = 0.01$ M, $[\mathrm{I}^-] = 0.03$ M.
  • Substituting gives:
    $Q = (0.01)(0.03)^2 = 9 \times 10^{-6}$
• 3. Compare Q with Ksp:
  • If $Q > K_{\mathrm{sp}},$ precipitation occurs.
  • If $Q < K_{\mathrm{sp}},$ no precipitation.

Additional Problem:

Problem: Will mixing 0.05 M AgNO$_3$ with 0.04 M NaCl result in a precipitate?

Solution Steps:

• 1. Write the balanced equation: $\mathrm{Ag}^+ (aq) + \mathrm{Cl}^- (aq) \rightleftharpoons \mathrm{AgCl} (s)$
• 2. Set up equilibrium concentrations:
  • Initial $[\mathrm{Ag}^+] = 0.05$ M, $[\mathrm{Cl}^-] = 0.04$ M.
• 3. Calculate Q: $Q = [\mathrm{Ag}^+][\mathrm{Cl}^-] = (0.05)(0.04) = 2 \times 10^{-3}$
• 4. Compare Q with Ksp:
  • Compare calculated Q with known Ksp value for AgCl. A precipitate will form if $Q > K_{\mathrm{sp}}$. This exemplifies the practical application of Ksp in forecasting precipitate formation.

Calculating Ion Concentrations

Calculating ion concentrations is essential for exams, lab experiments, and careers in analytical chemistry. This vital skill aids in tackling complex chemistry problems you might encounter in evaluations.

Steps to Calculate Ion Concentrations

• Identify the Dissolution Reaction:

  • Recognise Reaction and Ions: Start by identifying the reaction and ions involved. Comprehending dissolution is a fundamental step when addressing precipitation reactions.
  infoNote

  Dissolution Reaction: The process where a solute dissolves in a solvent, creating a solution.

• Use Molar Concentrations:

  • Understanding Molarity: Apply given molarity values accurately in calculations. Convert when necessary.

• Ion Ratio Derivation:

  • Stoichiometry Use: Utilise the stoichiometric ratios from balanced reactions to derive ion concentrations clearly.

• Total Ion Concentration Calculation:

  • Compilation of Ion Concentrations: Aggregate individual solute contributions. Refer to balanced equations.

Worked Examples

Example 1: NaCl in Water

Let's explore how NaCl dissolves and splits into ions.

• Step 1: Dissolve NaCl in water.
• Step 2: Identify the equation: $\mathrm{NaCl} \rightarrow \mathrm{Na}^+ + \mathrm{Cl}^-$
• Step 3: For a NaCl concentration of 1 M:
  • [Na⁺] = 1 M
  • [Cl⁻] = 1 M

Example 2: Mixing AgNO3 and NaCl Solutions

In practical lab scenarios, comprehending mixtures is crucial.

• Step 1: Begin with solutions of AgNO3 and NaCl.
• Step 2: Calculate initial ion concentrations:
  • $\mathrm{AgNO}_3 \rightarrow \mathrm{Ag}^+ + \mathrm{NO}_3^-$
  • $\mathrm{NaCl} \rightarrow \mathrm{Na}^+ + \mathrm{Cl}^-$
• Step 3: Use solubility rules to anticipate precipitation, such as forming AgCl.

Practice Problems

• Basic Level: Determine ion concentrations from simple dissolutions, like KBr.
• Intermediate Level: Handle ionic mixtures forming precipitates, such as BaSO₄.
• Advanced Level: Tackle scenarios involving complex equilibria.

Common Challenges

• Spotlighting Conversion Errors:
  • Check conversions meticulously, especially from mM to M, to sidestep common mistakes.

• Ratio Miscalculations:
  • Use diagrams to contrast correct vs. incorrect stoichiometric ratios.

Strategies for Success

• Visual Learning Strategies:

  • Use colour-coded diagrams to depict ion reactions and concentrations.

• Checklist Approach:

  • Utilise checklists to simplify calculations and validate steps systematically.

Exam Tips

• Time Management Strategy:

  • Segment problems into smaller sections.

• Simplification Techniques:

  • Simplify complex calculations by splitting them into smaller, manageable parts.

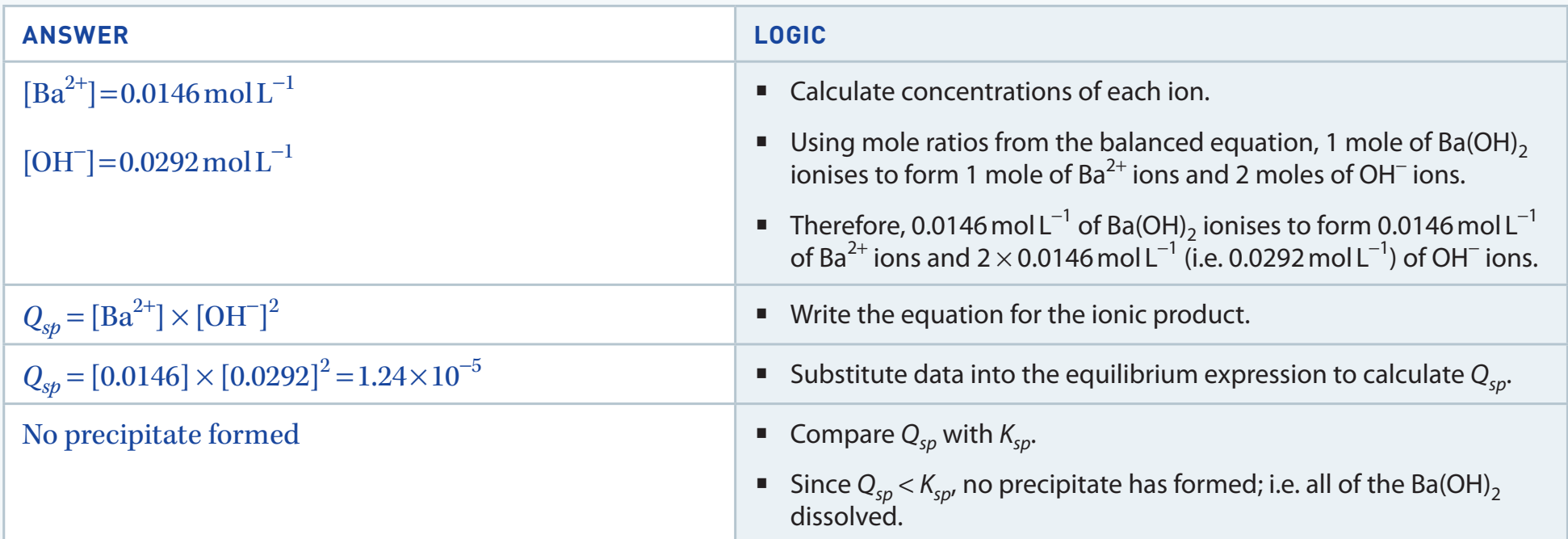

Introduction to Ionic Product (Q)

• Comparison with Ksp:

  Parameter	Ionic Product (Q)	Ksp
  Definition	Changes as ion concentrations vary	Constant at equilibrium for a given salt
  Analogy	Dynamic speed of a car at any instant	Average speed over the entire journey

• Real-Life Analogy:

  • Picture pouring coffee: the present fill level is Q, altering with each pour, while the spill point remains Ksp, a fixed cutoff.

Formula and Precise Calculation Steps

• Ionic Product Formula:
  $Q = [A^+]^m [B^-]^n$

• Step-by-step Calculation:

  • Identify ion concentrations from problem data.
  • Insert values into the Q formula.
  • Calculate to determine Q.

Decision-Making Using Q vs Ksp

Predicting Outcomes:

• If Q < Ksp:

  • Solution is unsaturated, preventing precipitation.

• Q = Ksp:

  • Saturated solution, equilibrium achieved.

• If Q > Ksp:

  • Supersaturated solution, precipitation probable.

• Decision-Making Flowchart

  • Use this flowchart to direct your decision process:


Practice Problems with Worked Solutions

• Problem Set:
  • Simple Problem: Determine Q for given $[\mathrm{Ca}^{2+}] = 0.02$ M and $[\mathrm{F}^-] = 0.04$ M. Compare with $K_{sp} = 3.2 \times 10^{-11}$.
  • Complex Problem: Extend to scenarios involving temperature fluctuations and ion strength variability.

Solution to Simple Problem:

1. Calculate Q: $Q = [\mathrm{Ca}^{2+}][\mathrm{F}^-]^2 = (0.02)(0.04)^2 = 3.2 \times 10^{-5}$
2. Compare with Ksp: $3.2 \times 10^{-5} > 3.2 \times 10^{-11}$
3. Conclusion: Since Q > Ksp, precipitation will occur.

Exam Tips and Common Mistakes

• Exam Strategy Points:
  • Focus on: Precise calculations and time allocation.
  • Common Pitfalls:
    • Mismanagement of units affects results markedly.
    • Overlooking temperature's influence on Ksp.
  • Spotting Tricks:
    • Identify distractors or ambiguous conditions the examiner might set.

Introduction to Equilibrium Calculations

Equilibrium calculations are crucial in predicting whether a precipitate will form in a solution. They help ascertain ion concentrations at equilibrium, anticipating precipitation outcomes.

Applications: These calculations hold a significant role in disciplines like environmental science and industry. For example, managing mineral precipitation during water treatment processes.

Writing Equilibrium Expressions

• Equilibrium Expression: A mathematical representation of the balance between reactants and products at equilibrium.

• Steps:

  • Identify reactants/products in a precipitation reaction.
  • Set up the $K_{\mathrm{eq}}$ expression for the reaction.

• Example Reagents:

  • Calcium Carbonate ($\mathrm{CaCO}_3$): $K_{\mathrm{sp}} = [\mathrm{Ca}^{2+}][\mathrm{CO}_3^{2-}]$
  • Barium Sulfate ($\mathrm{BaSO}_4$): $K_{\mathrm{sp}} = [\mathrm{Ba}^{2+}][\mathrm{SO}_4^{2-}]$

Worked Examples

Example 1: Simple Reaction

• Objective: Predict $\mathrm{CaCO}_3$ precipitation.
• Steps:
  • Balanced Equation: $\mathrm{Ca}^{2+} + \mathrm{CO}_3^{2-} \rightleftharpoons \mathrm{CaCO}_3$
  • Equilibrium Expression: $K_{\mathrm{sp}} = [\mathrm{Ca}^{2+}][\mathrm{CO}_3^{2-}]$
  • Substitute Known Values: Compare to evaluate if $K_{\mathrm{sp}}$ is exceeded.

Conclusion: If concentrations surpass $K_{\mathrm{sp}}$, $\mathrm{CaCO}_3$ will precipitate.

Example 2: Complex Reaction

• Objective: Determine $\mathrm{BaSO}_4$ precipitation.
• Steps:
  • Balanced Equation: $\mathrm{Ba}^{2+} + \mathrm{SO}_4^{2-} \rightleftharpoons \mathrm{BaSO}_4$
  • Equilibrium Expression: $K_{\mathrm{sp}} = [\mathrm{Ba}^{2+}][\mathrm{SO}_4^{2-}]$
  • Analysis: Validate if concentrations exceed the $K_{\mathrm{sp}}$ threshold.

Conclusion: Precipitation occurs if concentrations surpass $K_{\mathrm{sp}}$.

Mini-Example: Variation

Objective: Evaluate ion valency influence.

• Scenario: Ions with different valencies like $\mathrm{PbCl}_2$ and $\mathrm{AgCl}$ exhibit varied $K_{\mathrm{sp}}$ impacts.

Step-by-Step Approach

• Identify initial concentrations and balance chemical equations.
• Formulate equilibrium expressions using $K_{\mathrm{sp}}$ values.

Common Errors and Strategies

• Common Errors:

  • Misinterpretation of stoichiometric coefficients.
  • Confusion between initial and equilibrium concentrations.

• Strategies:

  • Utilise
    checklists
    to confirm calculation accuracy:
    • Verify stoichiometry and repeat calculations.
    • Re-evaluate equilibrium against initial concentrations.

Diagrams and Visual Aids

Ensure diagrams seamlessly integrate with textual explanations for enhanced comprehension:

Wrap-Up and Summary

• Key Concepts:
  • Equilibrium Calculations are fundamental in predicting precipitate formation.
  • Worked Examples and Variations: Provide practical insights into calculations.
  • Common Errors: Primarily identified in stoichiometry and concentrations.
  • Strategies and Checklists: Promote accuracy and error prevention.

Common Ion Effect

Understanding Through Analogy

Common Ion Effect: Introduction of an ion already present lowers solubility as equilibrium is shifted. Imagine a crowded room; additional people force some to exit.

• This effect influences equilibrium by reducing solubility.

• Industrial Relevance: Knowledge of solubility reduces costs and forestalls side reactions. For example, adding sodium sulfate lessens barium sulfate solubility, crucial for reaction management.

Diagram:

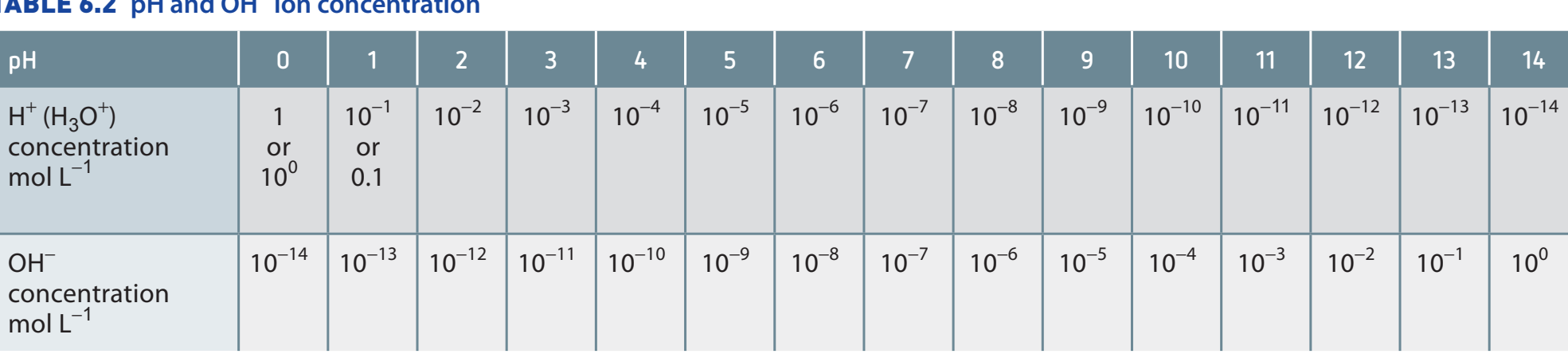

pH Influence on Solubility

Clarifying Concepts with Analogy

Effect of pH: Dissolution of substances is affected by pH, notably among acids and bases.

• Acid: Supplies hydrogen ions; akin to vinegar.

• Base: Accepts hydrogen ions or releases hydroxide ions; like baking soda.

• Acidic substances dissolve better in basic environments, and vice versa.

Diagram:

Temperature Impact

Simplified Reaction Explanation

• Endothermic Process: Absorbs heat, assisting substances in dissolving. Visualise heat as crowding into a warm coat.
• Exothermic Process: Favours cooler conditions; releases heat, potentially impeding dissolving.

Graph:

Practical Examples

Applications and Context

• Acidic Rain & Limestone: Acidic rain erodes limestone due to its low pH, impacting historical buildings.
• Industrial Solubility: Temperature management is vital for efficiency in chemical production, linking science to technology.

Exploring with Scenarios

Envision yourself in a lab modifying solubility:

• Which common ions might diminish solubility?
• How could pH facilitate dissolving?
• Does temperature increase dissolving?

Multiple-Choice Problem:

• Q: If increased heat enhances solubility, which process is occurring?
  • A: Endothermic
  • B: Exothermic

Solution: A. Endothermic, because the process absorbs heat and higher temperatures favour this type of reaction.

Problem-Solving Tips

• Checklist:
  • Identify common ions.
  • Understand pH impacts.
  • Adjust temperature when necessary.

These theories underpin predictions regarding solution behaviour, assisting in exams and real-world labs.

1. Introduction to Problem-Solving

Practising problems cultivates your understanding and retention of the Ksp (Solubility Product Constant), vital for predicting precipitation occurrences.

2. Solved Problems Set

Simple Problem: Single Ion Pair

• Objective: Assess if AgCl will precipitate by checking if the ion product surpasses its Ksp.

  • Example: Provided Ksp for AgCl = $1.8 \times 10^{-10}$, initial concentration of Ag⁺ = 0.01 M, Cl⁻ = 0.01 M
    Solution Steps:
  1. Equilibrium Expression: Write the expression for Ksp: $K_{sp} = [\mathrm{Ag}^+][\mathrm{Cl}^-]$
  2. Insert Values: $[\mathrm{Ag}^+] = 0.01 \mathrm{M}$, $[\mathrm{Cl}^-] = 0.01 \mathrm{M}$
  3. Calculate Ion Product: $0.01 \times 0.01 = 1.0 \times 10^{-4}$
  4. Comparison: $1.0 \times 10^{-4} > 1.8 \times 10^{-10}$
  5. Conclusion: The ion product exceeds Ksp, so AgCl will precipitate.

• Real-World Context: Such precipitation is observed in operations like water treatment.

Intermediate Problem: Multiple Ion Interactions

• Example: Competing precipitates in a solution with PbCl₂ and BaSO₄.
  Solution Steps:

  1. Examine Solubility Rules: Identify which salts precipitate first according to solubility rules.
  2. Apply Ksp Values: Use known Ksp values to calculate ion product for each compound.
  3. Solution Interaction: Determine the sequence of precipitation by comparing ion product to Ksp values.

• Conclusion Summary: Prioritise compound precipitation order based on calculations.

Advanced Problem: Effect of pH on Precipitation

• Objective: Explore CaCO₃ precipitation under acidic conditions. Solution Steps:
  1. Concept Introduction: pH alterations cause equilibrium shifts affecting solubility.
  2. Ion Interaction: Increased H⁺ shifts equilibrium, impacting CO₃²⁻ concentration and solubility.
• Summary: Reinforce the principle that lower pH enhances CaCO₃ solubility due to increased H⁺ concentration.

3. Strategic Tips and Tricks

• Flowcharts:
  • Utilise flowcharts to outline calculations methodically before solving complex problems.
• Identifying Critical Information:
  • Highlight or underline essential data such as Ksp and ion concentrations for clear focus.

4. Key Mistakes to Avoid

• Potential Mistakes:

  1. Ignoring Units: Always ensure unit consistency in calculations.
  2. Data Misinterpretation: Confirm Ksp values and experimental conditions.

• Problem: What effect does ignoring unit consistency have on calculations? Solution: Inconsistent units lead to incorrect values. For example, using molarity in millimoles/litre instead of moles/litre would yield a result off by a factor of 1000, potentially leading to an incorrect prediction about precipitation.

• Scenario Exploration: Consider how misjudging competitive ion concentrations influences outcomes.

5. Visual Aids

• Ensure all diagrams include captions to relate their application directly to problem-solving techniques discussed.
