Titration in Chemistry

Introduction to Titration

Overview

In analytical chemistry, Titration is a quantitative method for determining the concentration of an unknown substance by adding a titrant with a known concentration. This process enables the accurate determination of the analyte's concentration.

Ever wonder how scientists measure the acidity of your juice or assess river pollution levels? Titration is instrumental. It's a vital analytical technique for gauging solution concentrations, widely applied in testing, quality control, and research.

Primary Purpose and Applications

• Primary Purpose: To achieve precise and accurate measurement of concentrations.
• Applications:
  • Environmental Monitoring: Essential for detecting contaminants in water.
  • Pharmaceutical Industry: Ensures the purity and correct dosage of pharmaceuticals.

Basic Setup of Titration Process

1. Burette: Used for precise titrant dispensing.
2. Pipette: Accurately measures the volume of the analyte.
3. Flask: The reaction takes place here.
4. Indicators: Change colour to indicate the endpoint or equivalence point.

Endpoint vs. Equivalence Point

• Endpoint: Observed when the indicator changes colour, marking the titration's end.

• Equivalence Point: The point where the quantity of titrant equals the analyte in the solution.

• Methods for Endpoint Detection:

  • Visual: Uses colour-changing indicators.
  • Instrumental: Potentiometry offers precise electronic measurements.

Common Pitfalls and How to Avoid Them

• Common Errors:
  • Parallax errors when reading the meniscus.
  • Incorrect choice of indicator.
• Strategies to Avoid Errors:
  • Align your eye level with the meniscus to prevent parallax errors.
  • Select an indicator that matches the expected pH range of the endpoint.

Practical Tips

• Keep Equipment Clean: Ensure all tools are thoroughly cleaned to avoid contamination.
• Record Accurately: Make precise and prompt recordings of measurements.
• Use the Formula $C_1V_1 = C_2V_2$: Here's an example for understanding:

Acid-Base Titrations

Overview

• Neutralisation Reaction: Combines acids and bases to form water and salt – a frequent occurrence in chemistry labs.
• Simplified Language: Imagine mixing lemon juice (acid) with baking soda (base) - you'll get fizz and ultimately a neutral solution!

Indicators and Equivalence Point

• Indicators: Essential for identifying the endpoint.

  Indicator	Suitable pH Range
  Phenolphthalein	8.2 - 10
  Methyl Orange	3.1 - 4.4

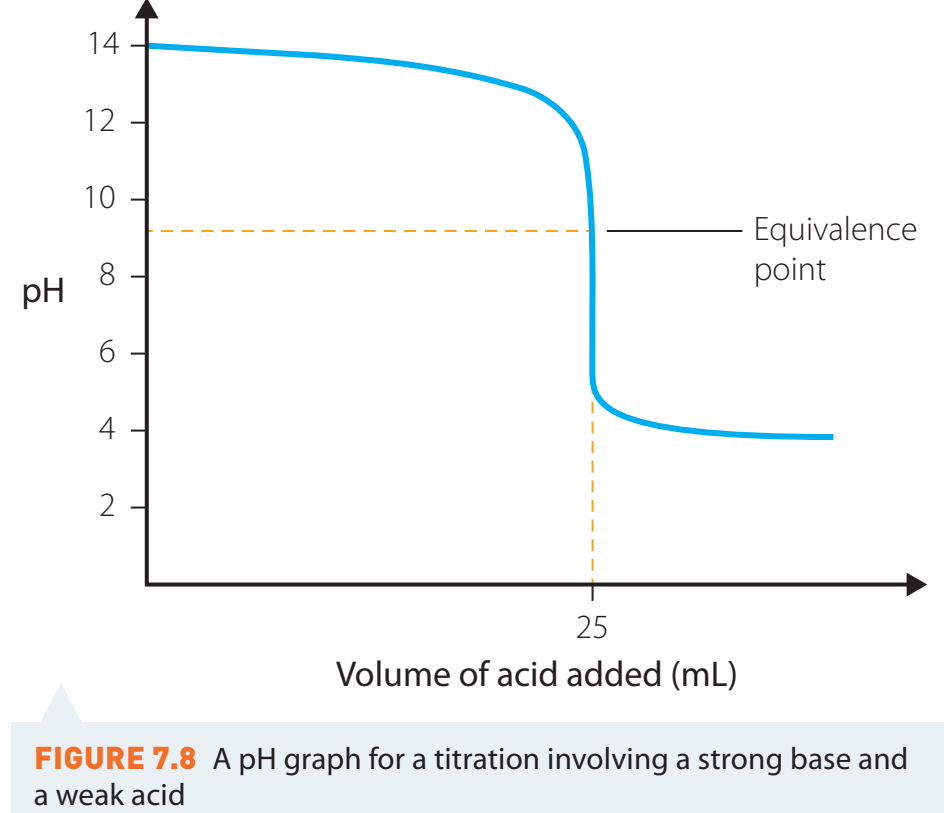

• Graphs: Analyse the graph to observe the sharp pH shift at equivalence, where neutralisation is completed.

Practical Example

• Vinegar Acidity Measurement: Calculate its acidity in a systematic process.

  1. Add a known solution (e.g., NaOH) to vinegar.
  2. Use phenolphthalein as an indicator until a faint pink remains.
  3. Measure the amount of NaOH used to calculate concentration.

  Example Calculation: If 25ml of NaOH is used, acidity is determined by:

  $\text{Concentration} = \frac{\text{Amount of NaOH}}{\text{Volume of Vinegar}}$

Redox Titrations

Fundamental Concepts

• Redox Reactions: One species loses electrons, and another gains them, similar to a baton passing in a relay.

Example Applications

• Determining Vitamin C Levels: Common in lab exercises.

  1. Juice reacts with iodine to indicate Vitamin C content.
  2. Exam-style question: Calculate concentration based on titration data, being mindful of errors in iodine drop counts.

Common Agents

• Oxidising: Potassium permanganate (KMnO₄).
• Reducing: Sodium thiosulphate (Na₂S₂O₃).

Complexometric Titrations

Role of Complexing Agents

• EDTA: Encloses metal ions for easier quantification.

Common Utilities

• Water Hardness Example:

  1. Measure how much EDTA binds to calcium.
  2. Calculate water hardness if 20ml EDTA is used with the formula:

  $\text{Hardness} = \frac{\text{Metal ions}}{\text{Sample volume}} \times 1000$

Precipitation Titrations

Formation and Methods

• Precipitation: Equivalence is shown when a solid forms.

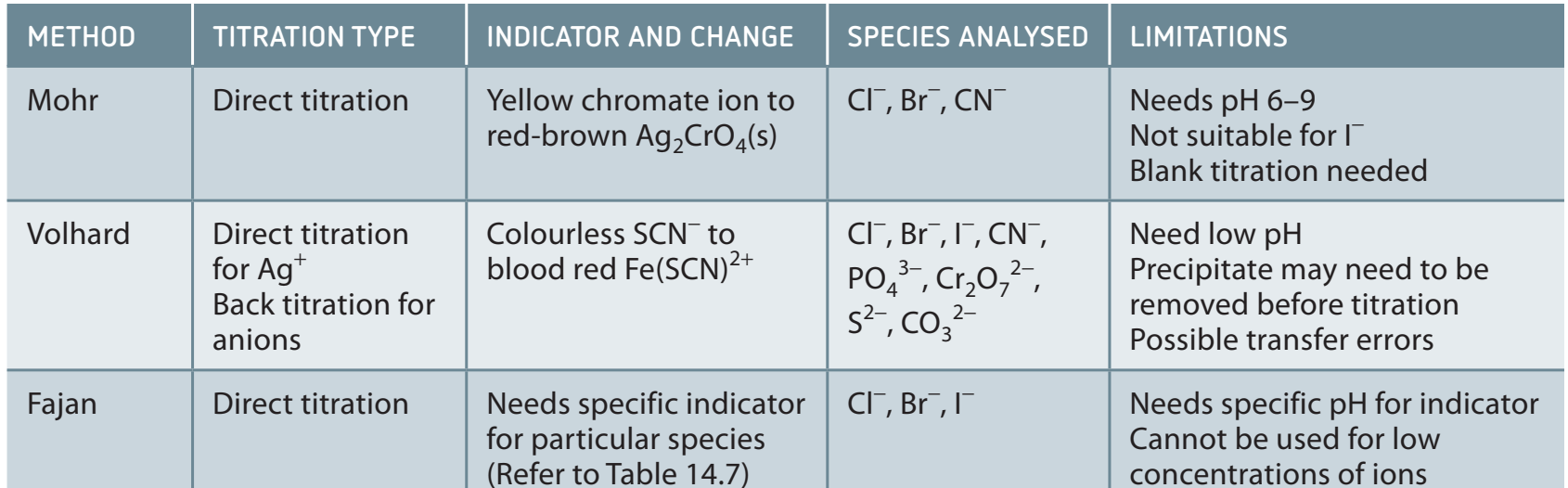

• Popular Techniques: Mohr's method for chloride detection using silver nitrate.

Real-world Scenarios

• Environmental Testing: Mohr's process for identifying halides in water.

  1. Add known silver nitrate to wastewater.

Applications of Titration

Overview: Applications of Titration

Curious about how your water is ensured to be safe? Titration plays a significant role, maintaining water purity by detecting pollutants. It is invaluable across industries, from pharmaceuticals to food production, ensuring safety and quality.

Environmental Monitoring

Phosphates and Nitrates in Water

• Role in Eutrophication Prevention: Excessive nutrients can lead to harmful algae blooms. Controlling them via titration safeguards ecosystems.
  • Detailed Methodology: Titration involves adding a titrant to a water sample until the endpoint, shown by a colour change. This indicates the reaction is complete.
  • Expanded Case Study: In Manchester, titration played a key role in guiding actions like reducing fertiliser application. Result: A 70% drop in phosphate levels, benefiting aquatic life.

Pharmaceutical Analysis

Drug Purity and Concentration

• Risk Prevention: Titration guarantees drugs have the correct concentrations, which is vital for safety and efficacy, reducing the risk of side effects.
  • Enhanced Quality Control: Titration ensures pharmaceutical labs meet strict regulations, such as keeping active ingredients within 2% of specified concentrations.
  • Example Expansion: Titration ensures aspirin purity above 98%, balancing efficacy and safety.

Food and Beverage Industry

Acidity and Preservative Levels

• Acidity Measurement: Titration helps maintain product stability and taste by ensuring proper acidity levels.
  • Legal & Compliance: Regular titration checks prevent fines and ensure products meet standards. In the UK, exceeding acidity limits can result in significant penalties.
  • Real-world Scenario: A beverage company uses titration to align consistently with health safety standards, avoiding legal issues and ensuring consumer safety.

Industry-Specific Examples

Alcohol Content in Wine

• Titration ensures compliance with strict regulations, maintaining product quality and consistency.

Metal Ion Concentration in Waste Water

• Titration monitors metal ions to meet environmental standards, vital for avoiding fines and preserving water quality.

Understanding Standard Solutions

• Accuracy & Protocols: Standard solutions, with known concentrations, are critical for precise titration outcomes. Adhering to protocols prevents significant errors.

Overview of Titration Calculations

Calculations in titration are essential for deriving unknown concentrations using stoichiometry and the mole concept.

Stoichiometry of Titration Reactions

Fundamental Concepts

• Balanced vs. Unbalanced Equations:
  • Balanced Equation: Each atom type has the same number on both sides.
  • Unbalanced Equation: Results in calculation errors and misrepresentation of chemical reactions.
  • Example:
    • Balanced: $2\text{H}_2 + \text{O}_2 \rightarrow 2\text{H}_2\text{O}$
    • Unbalanced: $\text{H}_2 + \text{O}_2 \rightarrow \text{H}_2\text{O}$

Step-by-step Guide

1. Identify the Titrant and Analyte

   • Examine the chemical equation.
   • Titrant: The solution in the burette.
   • Analyte: The solution in the flask.

   :::note[Clarification]: Typically, the titrant has known concentration. :::

2. Balance the Titration Reaction

   • Ensure each element type matches on both sides with balanced coefficients.
   • Techniques:
     • Start with complex molecules first.
     • Use coefficients to equalise atoms on both sides.
   • Example Balancing:
     • $\text{Ba(OH)}_2 + 2\text{HNO}_3 \rightarrow \text{Ba(NO}_3)_2 + 2\text{H}_2\text{O}$

3. Use Mole Ratios

   • Apply Mole Ratios from these questions.
   • Example reaction: $\text{HCl} + \text{NaOH} \rightarrow \text{NaCl} + \text{H}_2\text{O}$ (1:1 ratio)

Common Mistakes

• Typical Mistakes:

  • Failing to properly balance the equations.
  • Using incorrect mole ratios.

• :::troubleshooting[Balancing Tips]:

  • Begin with compounds with the largest number of atoms.
  • Leave diatomic gases till last (e.g., $\text{N}_2$). :::

• :::note[Checklist]:

  • Ensure coefficients balance atoms on both sides.
  • Verify using a simple run-through of each atom type. :::

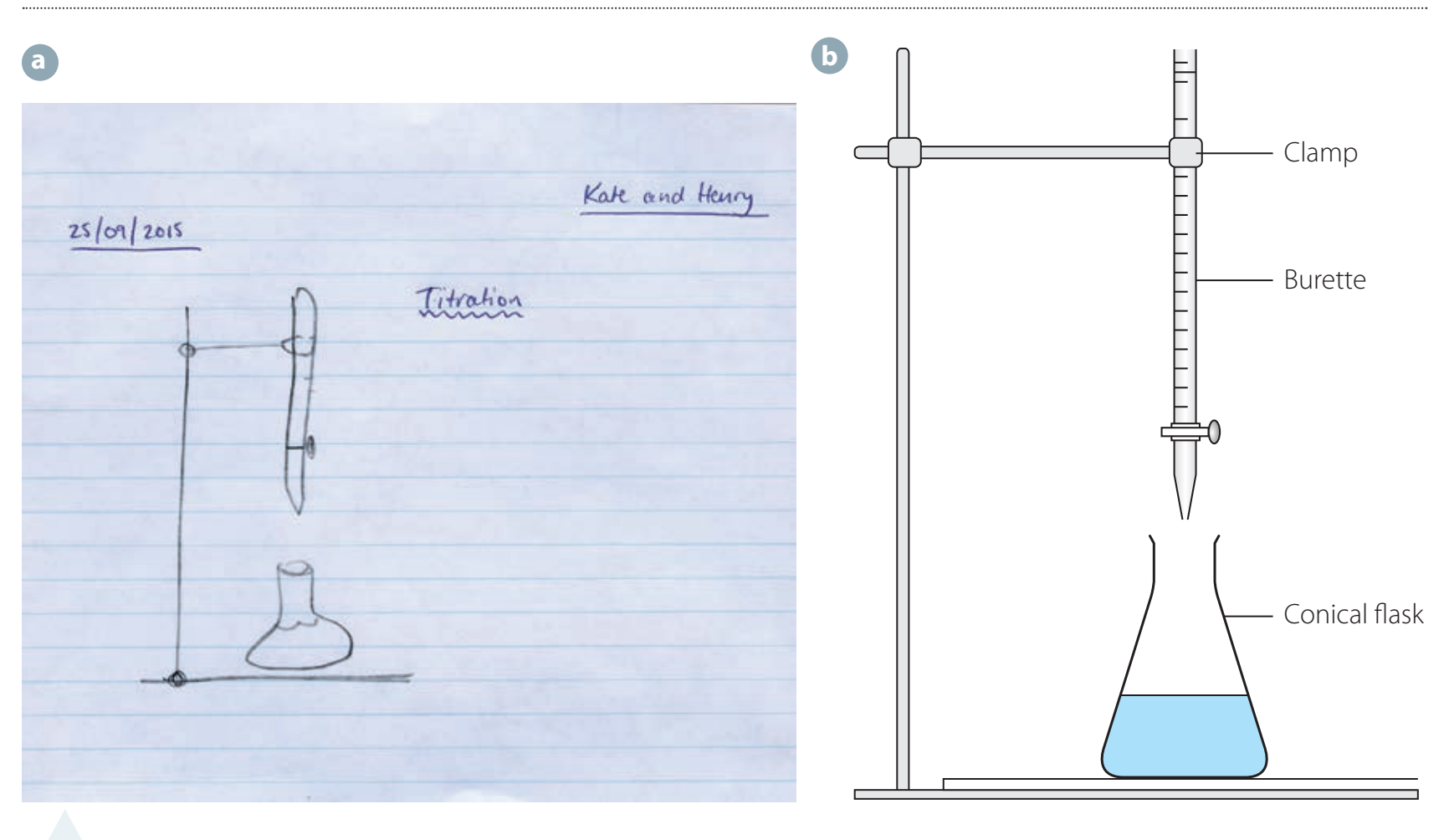

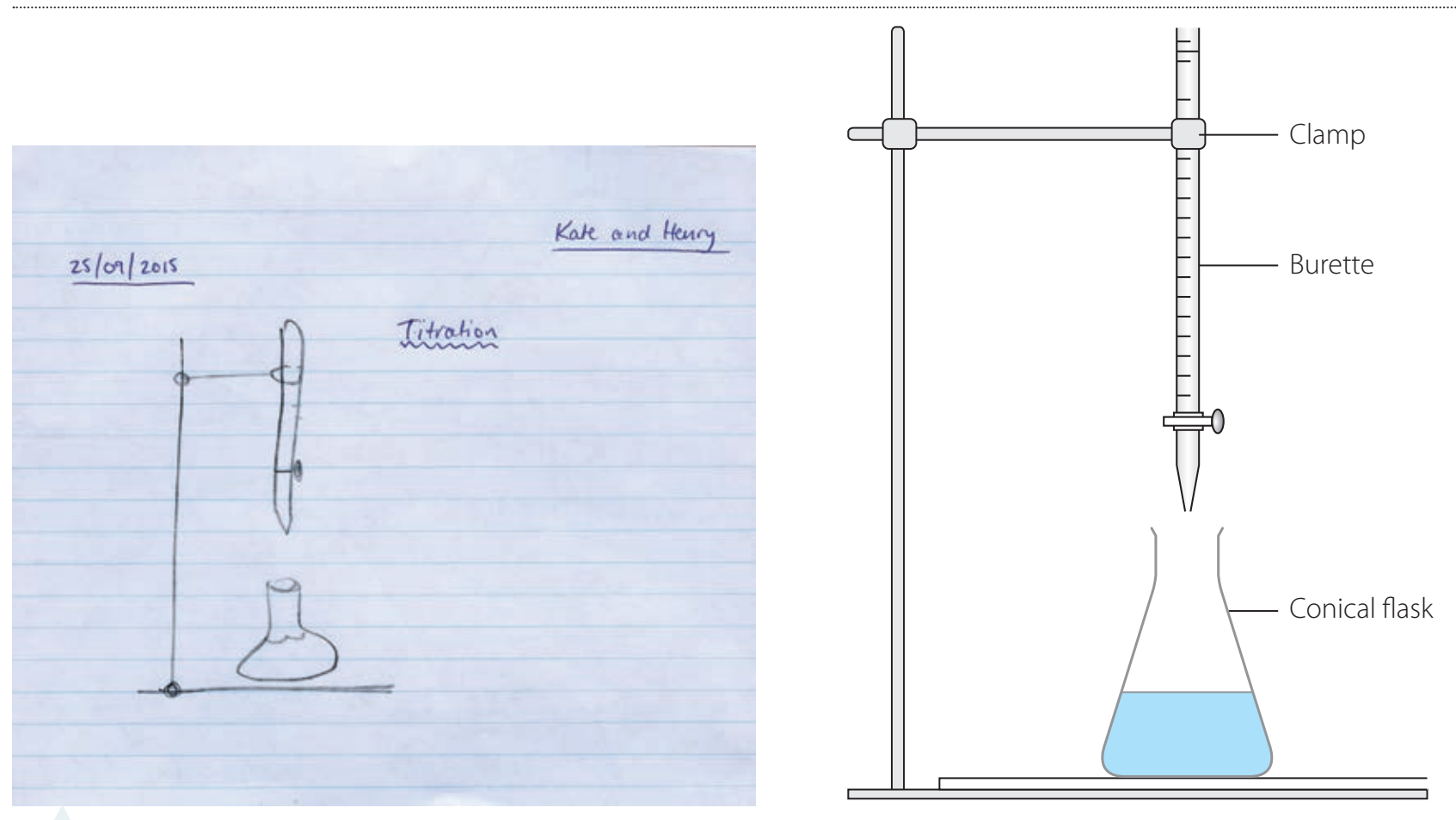

Caption: Set-up of a typical titration apparatus showing relative positions of components like burette and analyte flask.

Caption: Flowchart guiding through steps of performing stoichiometric calculations.

Caption: Key troubleshooting strategies for common errors in calculations.
