Question 2

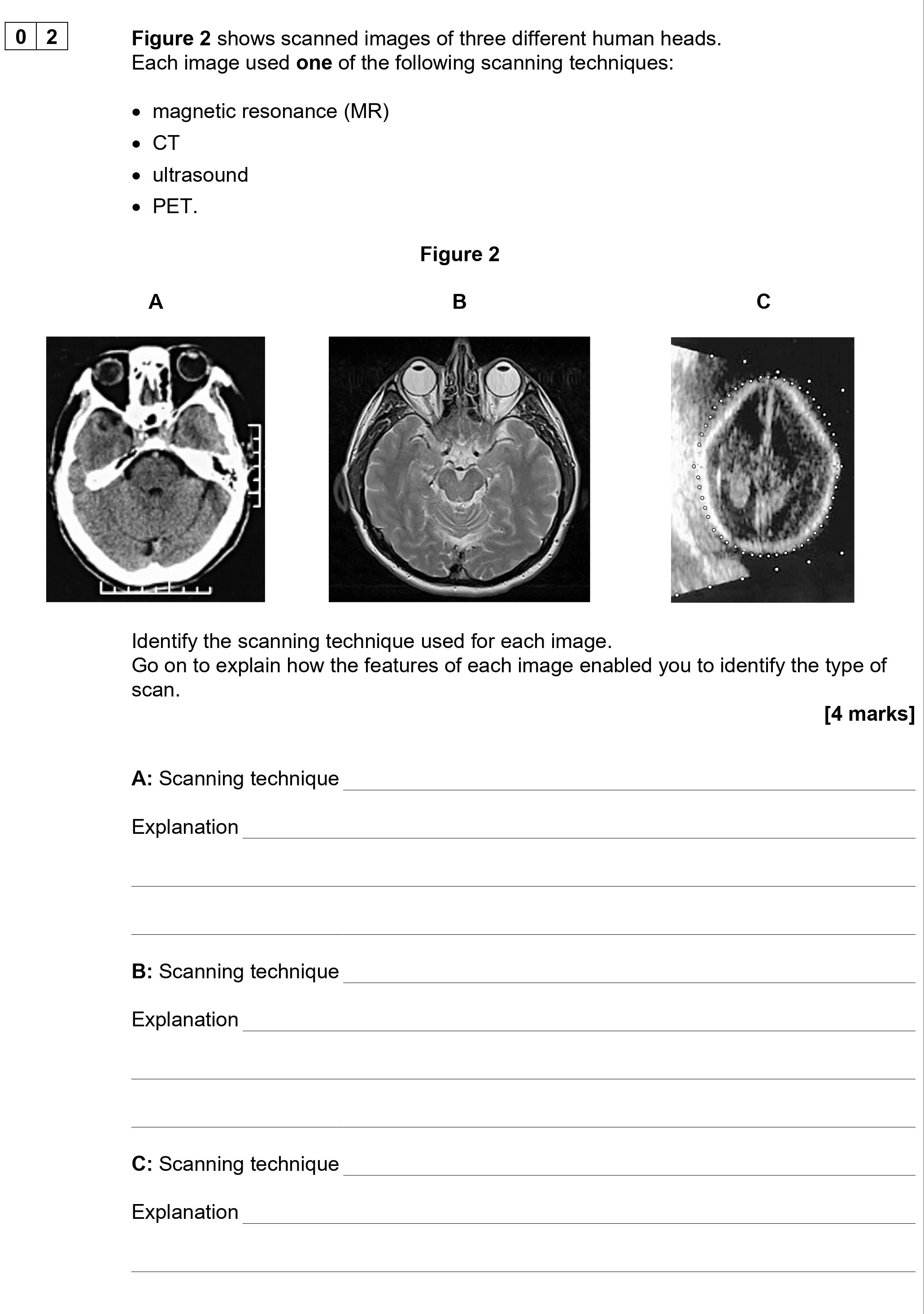

Figure 2 shows scanned images of three different human heads. Each image used one of the following scanning techniques:
• magnetic resonance (MR)
• CT
• ultrasound
... show full transcript
Worked Solution & Example Answer:Figure 2 shows scanned images of three different human heads - AQA - A-Level Physics - Question 2 - 2021 - Paper 5
Step 1
A: Scanning technique
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
CT scanner
The image shows distinct outlines of bony structures, which are typical for a CT scan. CT scans are particularly useful for visualizing bone detail.
Step 2
B: Scanning technique
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
MR scanner
This image provides a high-resolution, detailed view of soft tissues, especially the brain and eyes. MR imaging excels in highlighting soft tissue contrast.
Step 3
C: Scanning technique
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Ultrasound scanner
The image appears low resolution and shows external boundaries, typical of ultrasound. It lacks the detailed internal structures, particularly of hard tissues like bone.
