Question 20

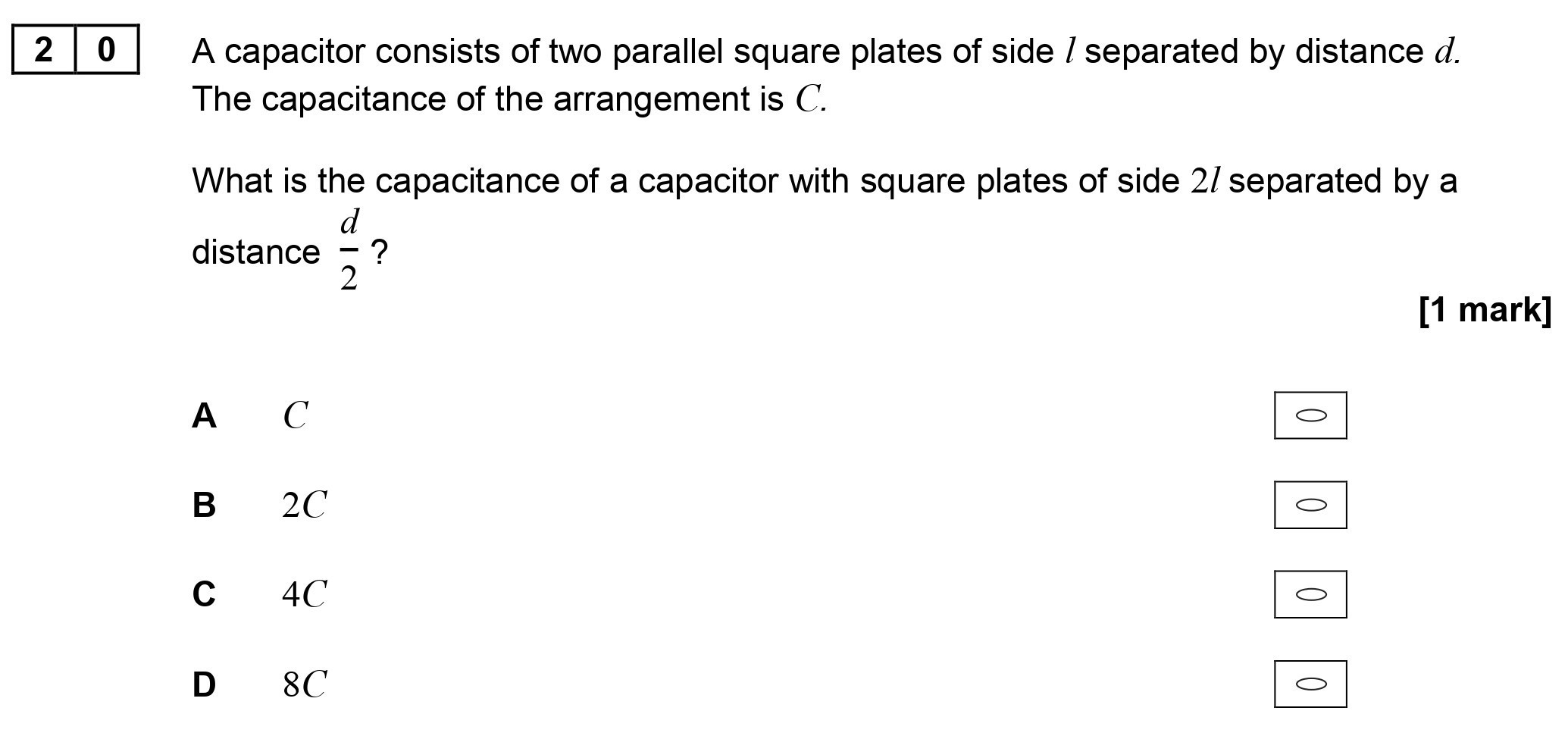

A capacitor consists of two parallel square plates of side / separated by distance d. The capacitance of the arrangement is C.
What is the capacitance of a capacito... show full transcript
Worked Solution & Example Answer:A capacitor consists of two parallel square plates of side / separated by distance d - AQA - A-Level Physics - Question 20 - 2017 - Paper 2
Step 1
What is the capacitance of a capacitor with square plates of side 2?
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The capacitance of a capacitor is given by the formula:
C = rac{ ext{ε} imes A}{d}
where
a is the area and d is the distance between the plates. For square plates, the area A will change with the side length.
Step 2
Determine the new area
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
If the side length of the plates is increased from l to 2l, the new area A' is calculated as:
A′=(2l)2=4l2=4A
where A is the original area.
Step 3
Calculate capacitance with updated area and distance
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Now using the new area with the reduced separation distance d/2, we substitute into the capacitance formula:
C' = rac{ ext{ε} imes A'}{d/2} = rac{ ext{ε} imes 4A}{d/2}. This simplifies to:
