Question 4

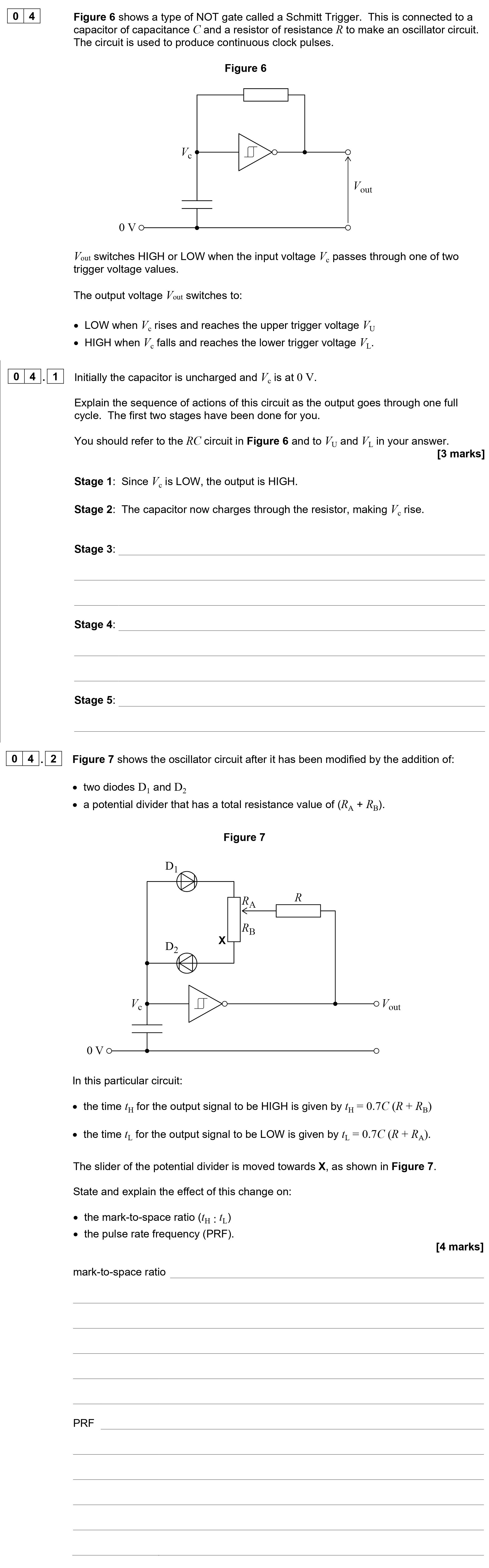

Figure 6 shows a type of NOT gate called a Schmitt Trigger. This is connected to a capacitor of capacitance C and a resistor of resistance R to make an oscillator ci... show full transcript
Worked Solution & Example Answer:Figure 6 shows a type of NOT gate called a Schmitt Trigger - AQA - A-Level Physics - Question 4 - 2022 - Paper 8
Step 1
Stage 1: Since Ve is LOW, the output is HIGH.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The output voltage Vout is HIGH as long as Ve remains below the lower trigger voltage Vl. This state allows the capacitor to charge, causing Ve to rise.
Step 2
Stage 2: The capacitor now charges through the resistor, making Ve rise.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
As the capacitor charges, the voltage across it increases. This process continues until the voltage reaches the upper trigger voltage Vu.
Step 3
Stage 3: When Ve reaches a value of Vu, the output voltage Vout drops LOW.
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Once Ve surpasses Vu, the Schmitt Trigger changes state, dropping Vout to LOW. This causes the capacitor to start discharging.
Step 4
Stage 4: The capacitor now discharges through the resistor causing the value of Ve to fall.
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
As the capacitor discharges, the voltage Ve decreases until it approaches the lower trigger voltage Vl.
Step 5
Stage 5: When Ve reaches a value of Vl, the output voltage Vout jumps HIGH.
97%
117 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
At this point, the cycle starts over. The output switches back to HIGH, and the capacitor begins charging again.
