A gas containing doubly-charged ions flows to give an electric current of 0.64 A - AQA - A-Level Physics - Question 25 - 2018 - Paper 1

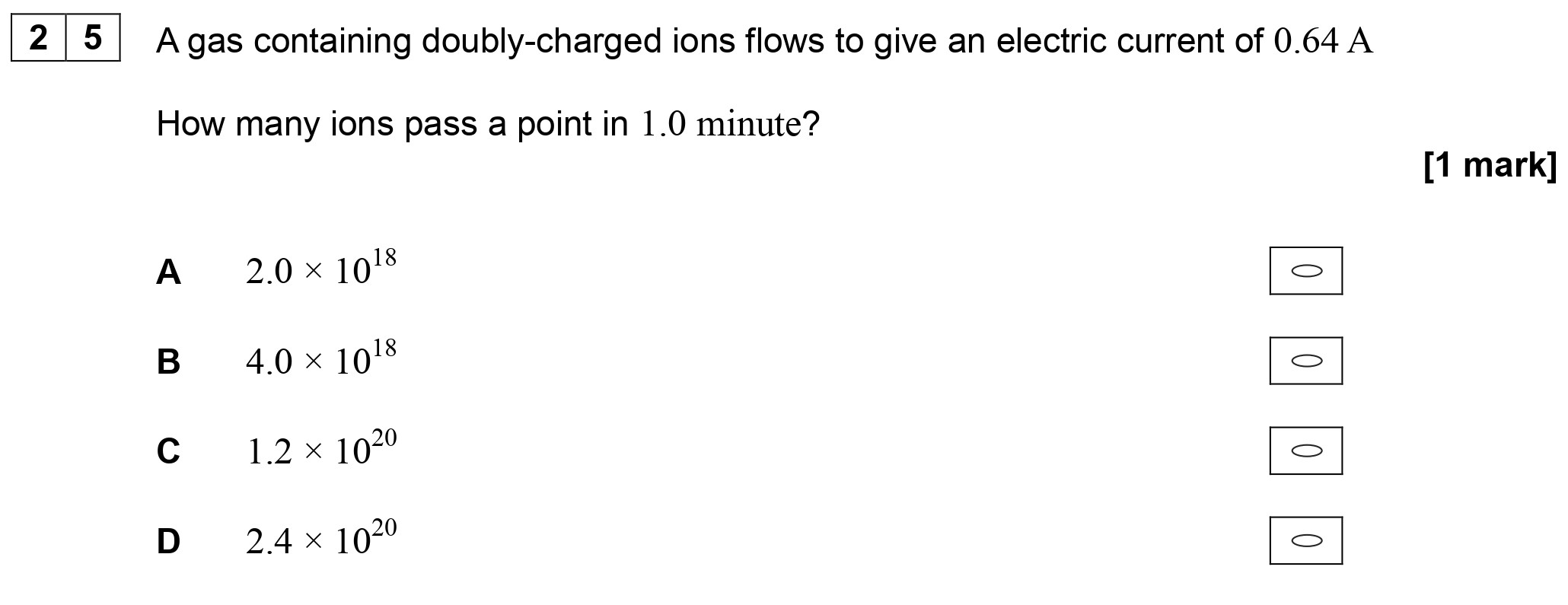

Question 25
A gas containing doubly-charged ions flows to give an electric current of 0.64 A.
How many ions pass a point in 1.0 minute?
Worked Solution & Example Answer:A gas containing doubly-charged ions flows to give an electric current of 0.64 A - AQA - A-Level Physics - Question 25 - 2018 - Paper 1
Step 1
Calculate the total charge in 1 minute
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The electric current (I) is given as 0.64 A, which means that 0.64 coulombs of charge pass a point every second. To find the total charge (Q) that passes in 1 minute (60 seconds), we use the formula:
Q=I×t
where:
(I = 0.64 A)
(t = 60 s)
Substituting the values:
Q=0.64×60=38.4 C
Step 2
Calculate the number of ions
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Since the ions are doubly charged, each ion contributes a charge of 2 elementary charges. The charge of one elementary charge (e) is approximately (1.6 \times 10^{-19} \text{ C}). Therefore, the charge contributed by one doubly charged ion is:
Qion=2×e=2×1.6×10−19=3.2×10−19 C
To find the number of ions (n) that pass a point, we use the formula:
n=QionQ
Substituting the values:
n=3.2×10−1938.4=1.2×1020
Step 3
Select the correct answer
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The number of ions that pass a point in 1.0 minute is (1.2 \times 10^{20}). Therefore, the correct option is:
