Question 4

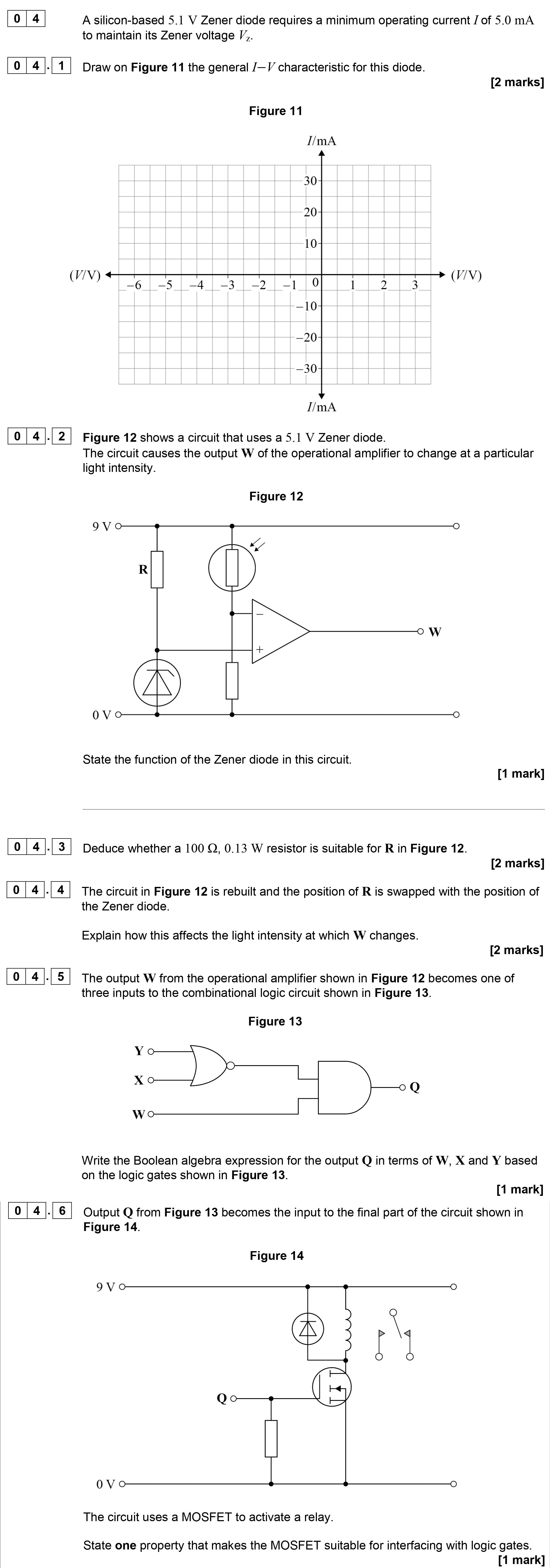

A silicon-based 5.1 V Zener diode requires a minimum operating current I of 5.0 mA to maintain its Zener voltage Vz.
Draw on Figure 11 the general I–V characteristi... show full transcript
Worked Solution & Example Answer:A silicon-based 5.1 V Zener diode requires a minimum operating current I of 5.0 mA to maintain its Zener voltage Vz - AQA - A-Level Physics - Question 4 - 2019 - Paper 8
Step 1
Draw on Figure 11 the general I–V characteristic for this diode.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The I–V characteristic curve for the Zener diode should show a sharp breakdown at 5.1 V with a small change in current, indicating its behavior as a voltage reference device. The curve slopes upwards in the forward direction before reaching the Zener voltage.
Step 2
State the function of the Zener diode in this circuit.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The Zener diode provides a stable reference voltage of 5.1 V, allowing the operational amplifier to maintain a consistent non-inverting input voltage.
Step 3
Deduce whether a 100 Ω, 0.13 W resistor is suitable for R in Figure 12.
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Using the power formula P=I2R, where I is 5 mA, we find:
\text{Since } 0.0025 ext{ W (or 2.5 mW) is less than 0.13 W, the resistor is suitable.}$$
Step 4
Explain how this affects the light intensity at which W changes.
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
If the position of the resistor and Zener diode is swapped, the Zener diode will now be directly connected to the voltage source. This may lead to a higher current flowing through the diode, potentially overheating it and affecting the light intensity at which W changes.
Step 5
Write the Boolean algebra expression for the output Q in terms of W, X and Y based on the logic gates shown in Figure 13.
97%
117 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The output can be expressed as: Q=(X∧Y)∨W
This describes the logic that Q is true if both X and Y are true or if W is true.
Step 6
State one property that makes the MOSFET suitable for interfacing with logic gates.
97%
121 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The MOSFET has a high input impedance, minimizing the loading effect on the preceding circuit.
