A photodiode forms part of a light meter used for checking light levels in an office.

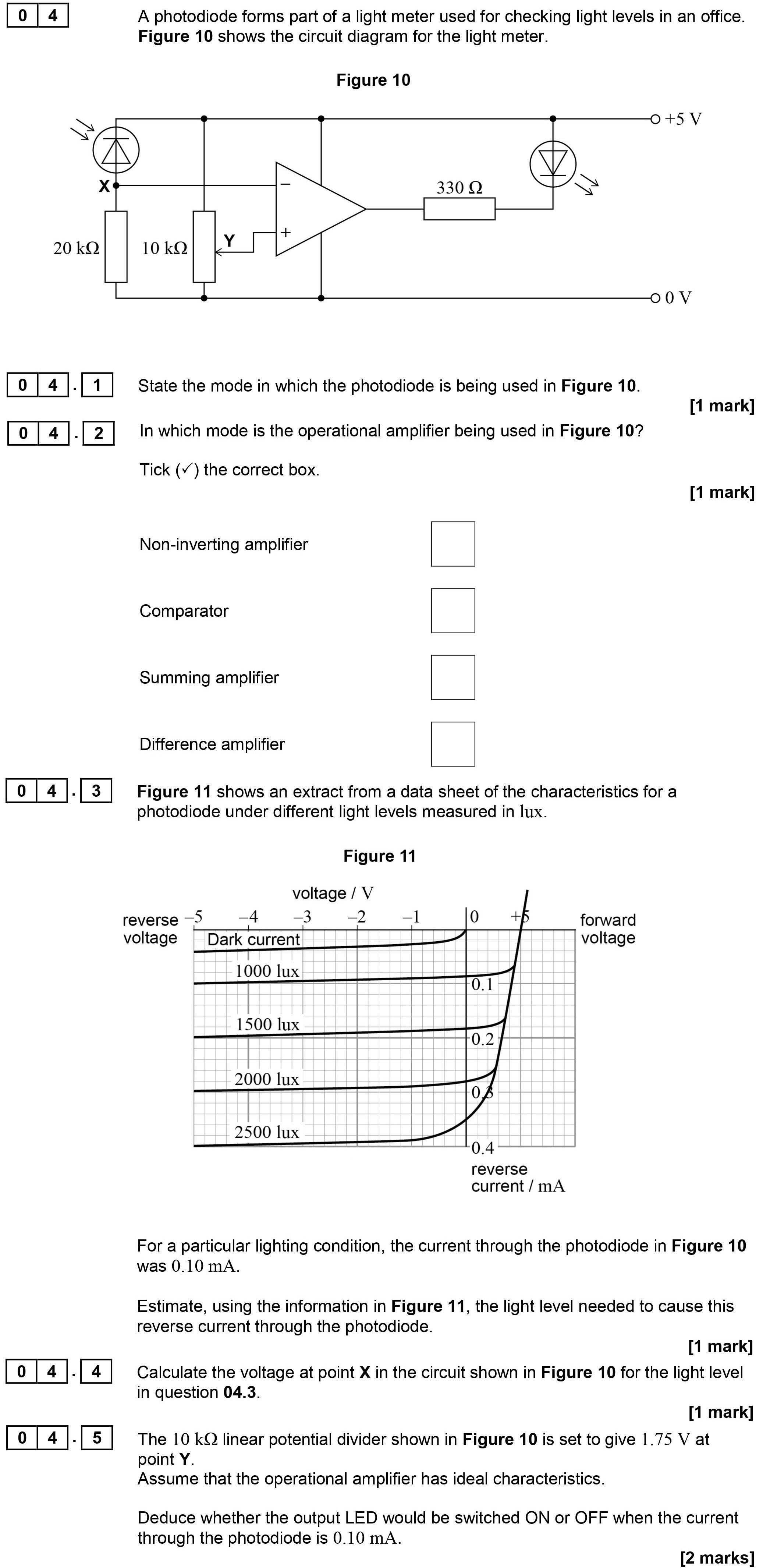

Figure 10 shows the circuit diagram for the light meter.
Figure 10
- 20 kΩ
... show full transcript
Worked Solution & Example Answer:A photodiode forms part of a light meter used for checking light levels in an office - AQA - A-Level Physics - Question 4 - 2017 - Paper 8
Step 1
State the mode in which the photodiode is being used in Figure 10.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The photodiode is being used in photoconductive mode, which involves applying a reverse bias to increase its sensitivity to light.
Step 2
In which mode is the operational amplifier being used in Figure 10?
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The operational amplifier in Figure 10 is operating in comparator mode, as it compares the voltages at its inverting and non-inverting terminals.
Step 3
Estimate, using the information in Figure 11, the light level needed to cause this reverse current through the photodiode.
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
From Figure 11, a reverse current of 0.10 mA corresponds to a light level of approximately 1000 lux (±10%).
Step 4
Calculate the voltage at point X in the circuit shown in Figure 10 for the light level in question 04.3.
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Using Ohm's law, the voltage at point X can be calculated as follows:
VX=IimesR=0.10extmAimes20extkΩ=2extV
Step 5
Decide whether the output LED would be switched ON or OFF when the current through the photodiode is 0.10 mA.
97%
117 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Since the voltage at point Y is set to 1.75 V and the voltage at point X is 2 V, the operational amplifier's output will be high (ON). Hence, the output LED would be switched ON.
