A student carries out an experiment to determine the resistivity of a metal wire - AQA - A-Level Physics - Question 8 - 2018 - Paper 1
Question 8

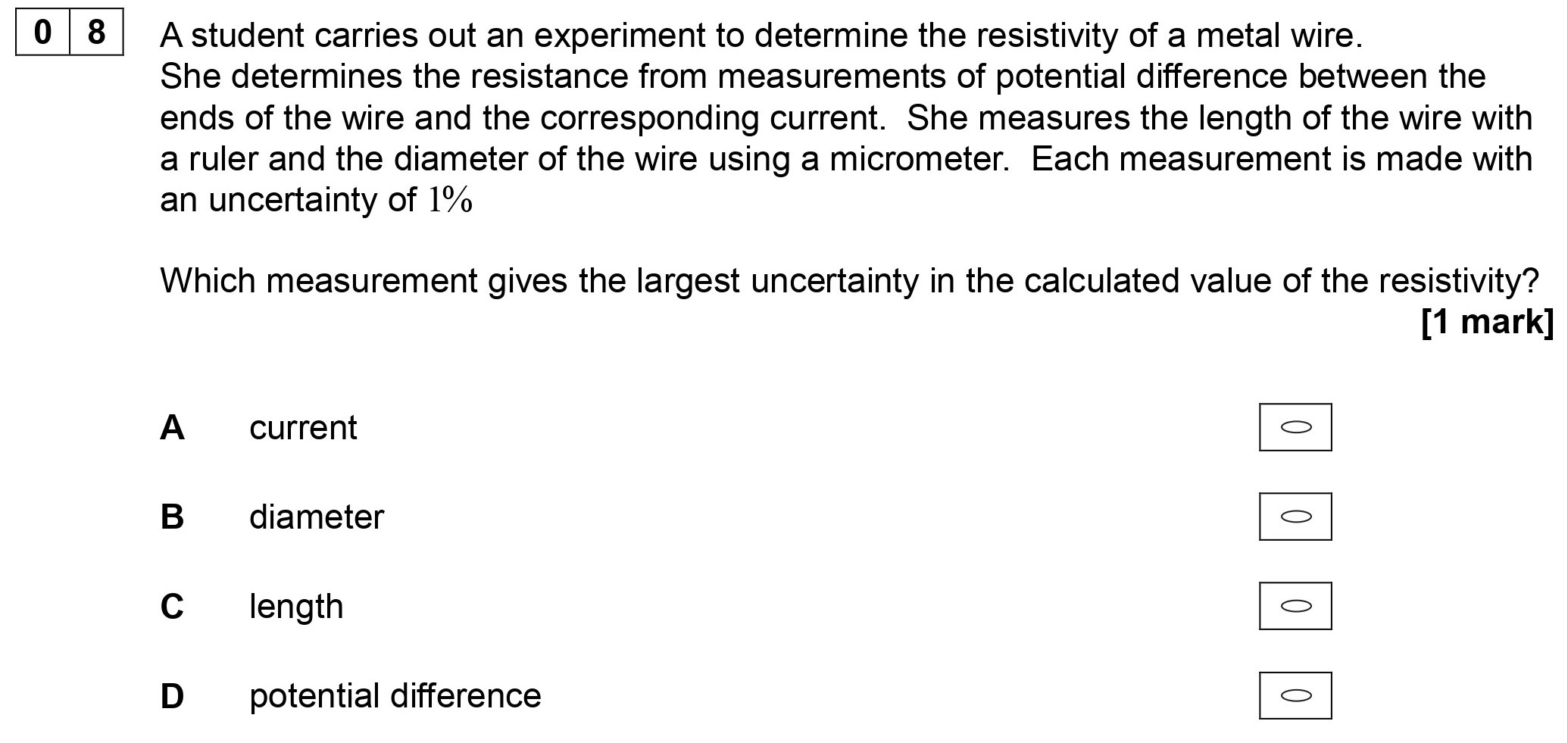

A student carries out an experiment to determine the resistivity of a metal wire. She determines the resistance from measurements of potential difference between the... show full transcript
Worked Solution & Example Answer:A student carries out an experiment to determine the resistivity of a metal wire - AQA - A-Level Physics - Question 8 - 2018 - Paper 1
Step 1
A current
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The uncertainty in the current measurement contributes to the overall uncertainty in resistivity, but it is relatively small.
Step 2
B diameter
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The diameter measurement influences the cross-sectional area significantly. A small percentage uncertainty in diameter results in a larger percentage uncertainty in calculated resistivity because area is squared in the formula.
Step 3
C length
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The length measurement affects the resistivity linearly. However, a 1% uncertainty in length does not have as significant an impact as in the area related to diameter.
Step 4
D potential difference
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The potential difference measurement also holds an uncertainty, but since it is only part of the formula, its impact is not as significant as that of diameter.
Step 5
Conclusion
97%
117 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Therefore, the measurement that gives the largest uncertainty in the calculated value of resistivity is the diameter of the wire.
