Figure 4 shows a logic system made of logic gates labelled 1 to 6
The logic system has inputs A and B and outputs X, Y and Z - AQA - A-Level Physics - Question 2 - 2022 - Paper 8
Question 2

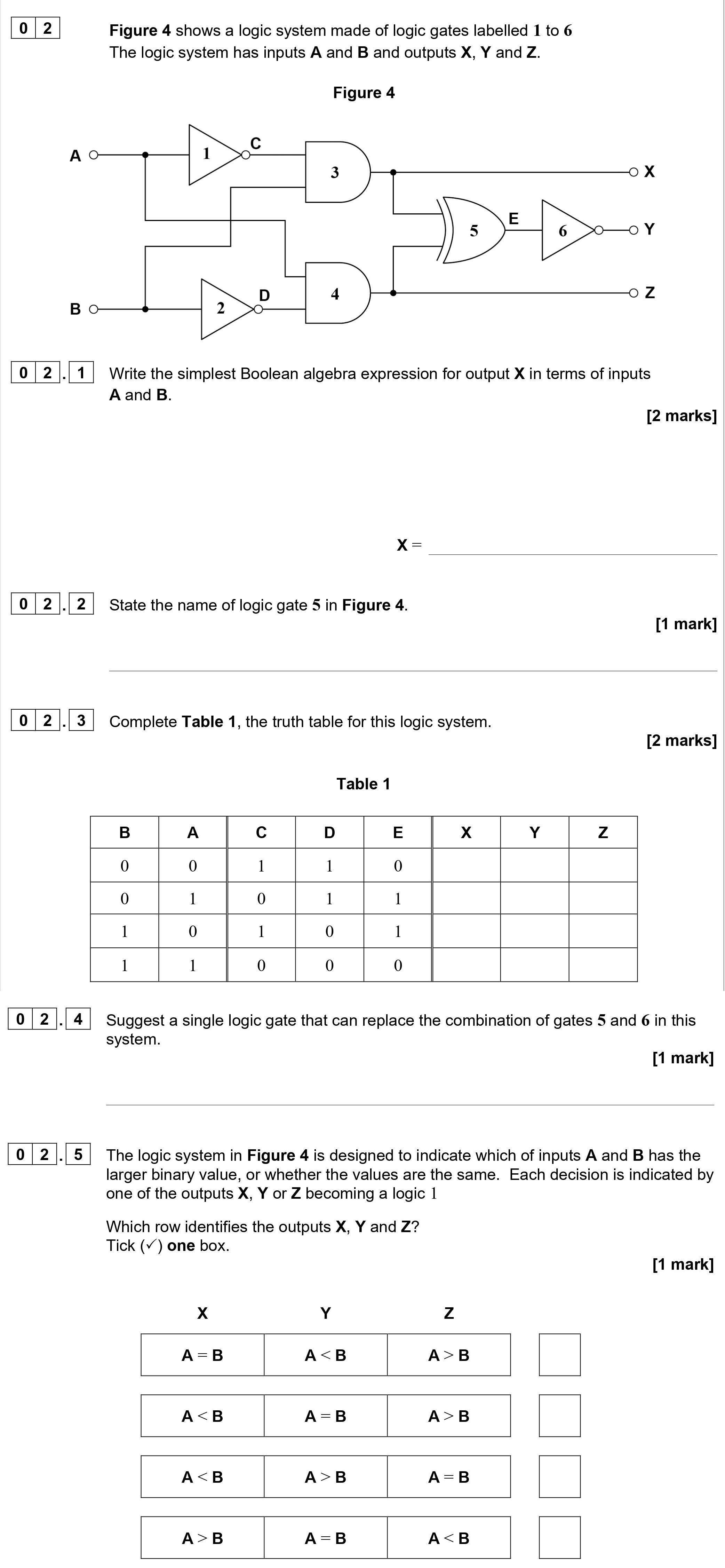

Figure 4 shows a logic system made of logic gates labelled 1 to 6
The logic system has inputs A and B and outputs X, Y and Z.
**0.2.1** Write the simplest Boolean a... show full transcript
Worked Solution & Example Answer:Figure 4 shows a logic system made of logic gates labelled 1 to 6
The logic system has inputs A and B and outputs X, Y and Z - AQA - A-Level Physics - Question 2 - 2022 - Paper 8
Step 1
0.2.1 Write the simplest Boolean algebra expression for output X in terms of inputs A and B.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
To derive the Boolean expression for output X, we first need to analyze the logic gates leading to output X. According to the logic setup in Figure 4, output X is activated when either input A is true or when input B is false, thus the expression can be simplified to:
X=A+B
Step 2
0.2.2 State the name of logic gate 5 in Figure 4.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The name of logic gate 5 in Figure 4 is the Exclusive OR (EOR) gate.
Step 3
0.2.3 Complete Table 1, the truth table for this logic system.
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Here's the completed truth table:
B
A
C
D
E
X
Y
Z
0
0
0
1
0
0
1
0
0
1
1
1
0
1
0
0
1
0
1
0
1
1
0
1
1
1
1
0
1
1
1
0
Step 4
0.2.4 Suggest a single logic gate that can replace the combination of gates 5 and 6 in this system.
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The combination of gates 5 and 6 can be replaced by a NAND gate.
Step 5
0.2.5 Which row identifies the outputs X, Y and Z?
97%
117 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The row that identifies the outputs X, Y and Z is:
