Stationary waves are set up on a rope of length 1.0 m fixed at both ends - AQA - A-Level Physics - Question 18 - 2020 - Paper 1

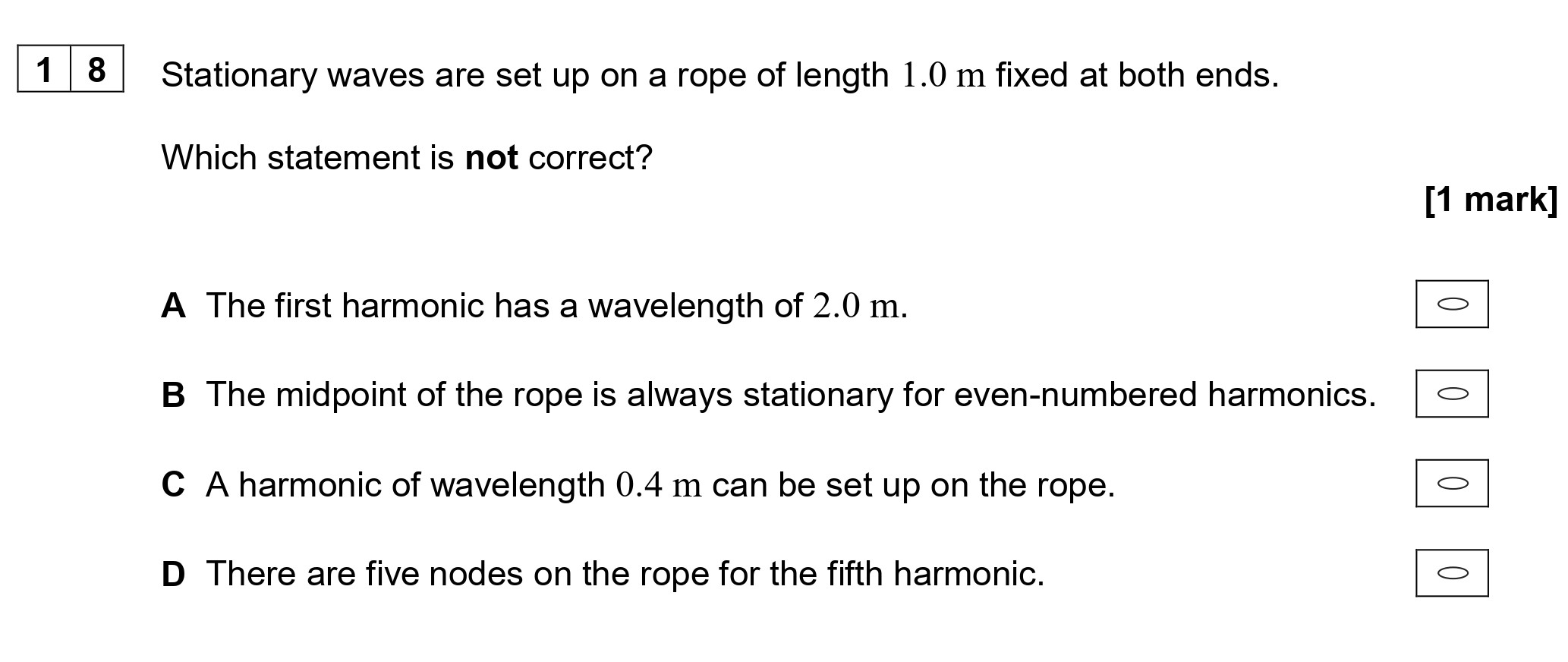

Question 18
Stationary waves are set up on a rope of length 1.0 m fixed at both ends.
Which statement is not correct?
A The first harmonic has a wavelength of 2.0 m.
B The midp... show full transcript
Worked Solution & Example Answer:Stationary waves are set up on a rope of length 1.0 m fixed at both ends - AQA - A-Level Physics - Question 18 - 2020 - Paper 1
Step 1
A The first harmonic has a wavelength of 2.0 m.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The length of the rope is 1.0 m. For the first harmonic (fundamental frequency), the wavelength (λ1) is equal to twice the length of the rope. Therefore, λ1=2L=2×1.0 m=2.0 m. This statement is correct.
Step 2
B The midpoint of the rope is always stationary for even-numbered harmonics.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
In even-numbered harmonics, the midpoint is indeed a node where there is no displacement, making this statement correct.
Step 3
C A harmonic of wavelength 0.4 m can be set up on the rope.
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The wavelengths for standing waves on a rope fixed at both ends can be calculated using the formula λn=n2L, where n is the harmonic number. For n=5, the wavelength is λ5=52×1.0=0.4 m. This statement is correct.
Step 4
D There are five nodes on the rope for the fifth harmonic.
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
For the fifth harmonic, there are a total of 6 nodes (at each end and at 5 evenly spaced points along the length of the rope). Therefore, this statement is not correct.
