[In this question i and j are horizontal unit vectors due east and due north respectively and position vectors are given relative to the fixed point O.]
A particle P moves with constant acceleration - Edexcel - A-Level Maths Mechanics - Question 8 - 2018 - Paper 1

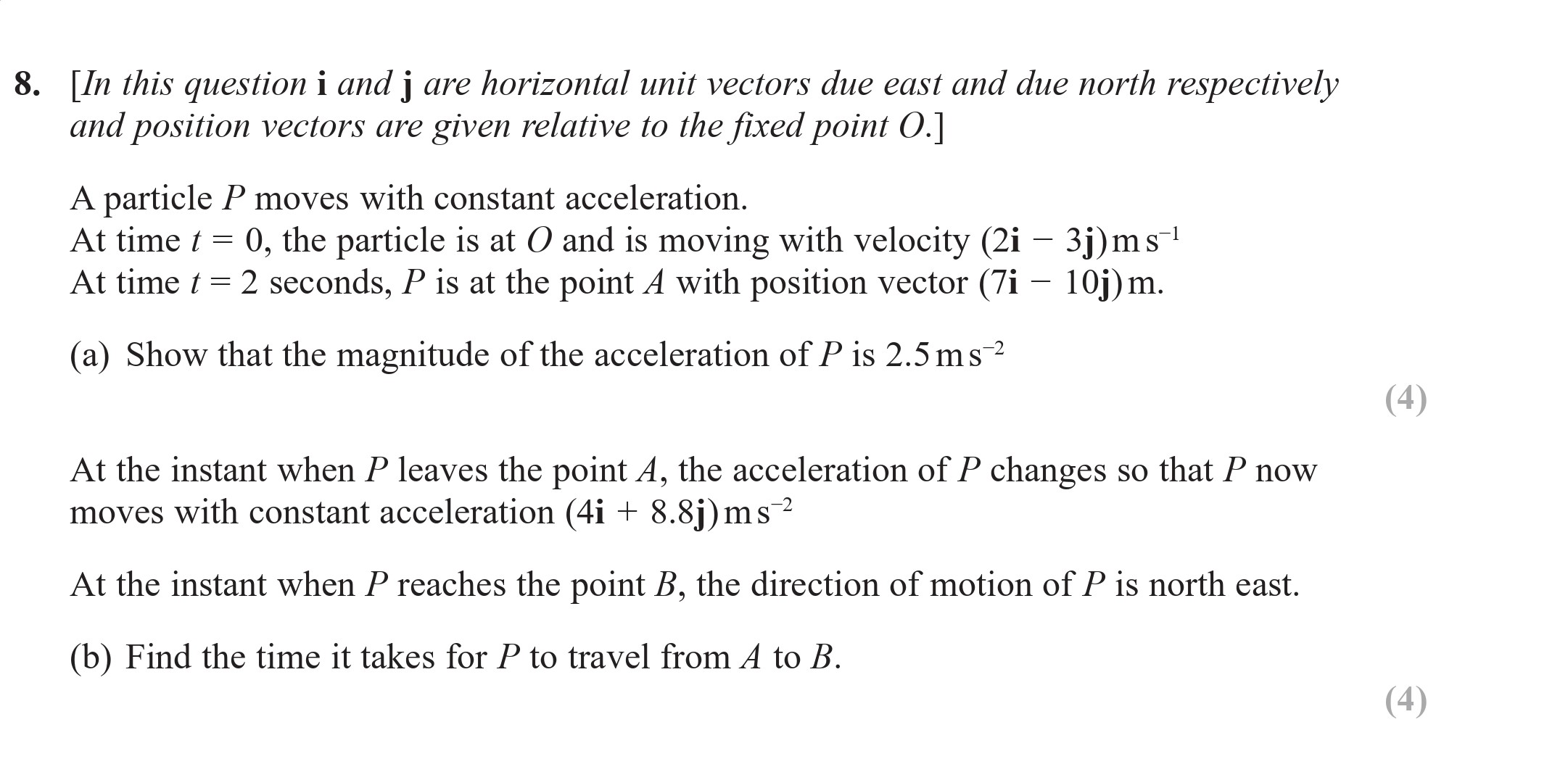

Question 8
[In this question i and j are horizontal unit vectors due east and due north respectively and position vectors are given relative to the fixed point O.]
A particle... show full transcript
Worked Solution & Example Answer:[In this question i and j are horizontal unit vectors due east and due north respectively and position vectors are given relative to the fixed point O.]
A particle P moves with constant acceleration - Edexcel - A-Level Maths Mechanics - Question 8 - 2018 - Paper 1
Step 1
(a) Show that the magnitude of the acceleration of P is 2.5 ms⁻².
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
To determine the acceleration, we can use the formula for position: s=ut+21at2
At time t = 0, the particle is at point O with position vector at that time as: r(0)=0, and its velocity is given as: v(0)=(2i−3j) ms−1
For t = 2 seconds, the position vector given is (7i - 10j) m.
Substituting these values into the equation for position: (7i−10j)=(2i−3j)(2)+21a(2)2
Simplifying the right-hand side: ⇒(7i−10j)=(4i−6j)+2a
Rearranging gives: 7i−10j−(4i−6j)=2a
Thus, 3i−4j=2a⇒a=23i−2j ms−2
Next, we calculate the magnitude of acceleration: ∣a∣=(23)2+(−2)2=49+4=49+416=425=25=2.5 ms−2
Therefore, the magnitude of the acceleration is confirmed to be 2.5 ms⁻².
Step 2
(b) Find the time it takes for P to travel from A to B.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Given the new constant acceleration of P as (4i + 8.5j) ms⁻² and the velocity at point A as (5i - 7j) ms⁻¹ (calculated from the previous section), we can determine the time it takes to travel to point B.
Using the equation: v=u+at where a=(4i+8.5j)
We need to find the final velocity when the object is at point B. We know the direction of motion is north-east, which means the final velocity can be expressed as: v=k(2i+2j) for some scalar k
To ensure that the components of the velocity match:
Set the components equal:
For the i component: 5+4t=k2
For the j component: −7+8.5t=k2
Setting these two equations equal and solving for t gives:
By adjusting the equations accordingly and simplifying will yield the time required.
After solving, we find that the time it takes for P to travel from A to B is 2.5 seconds.
