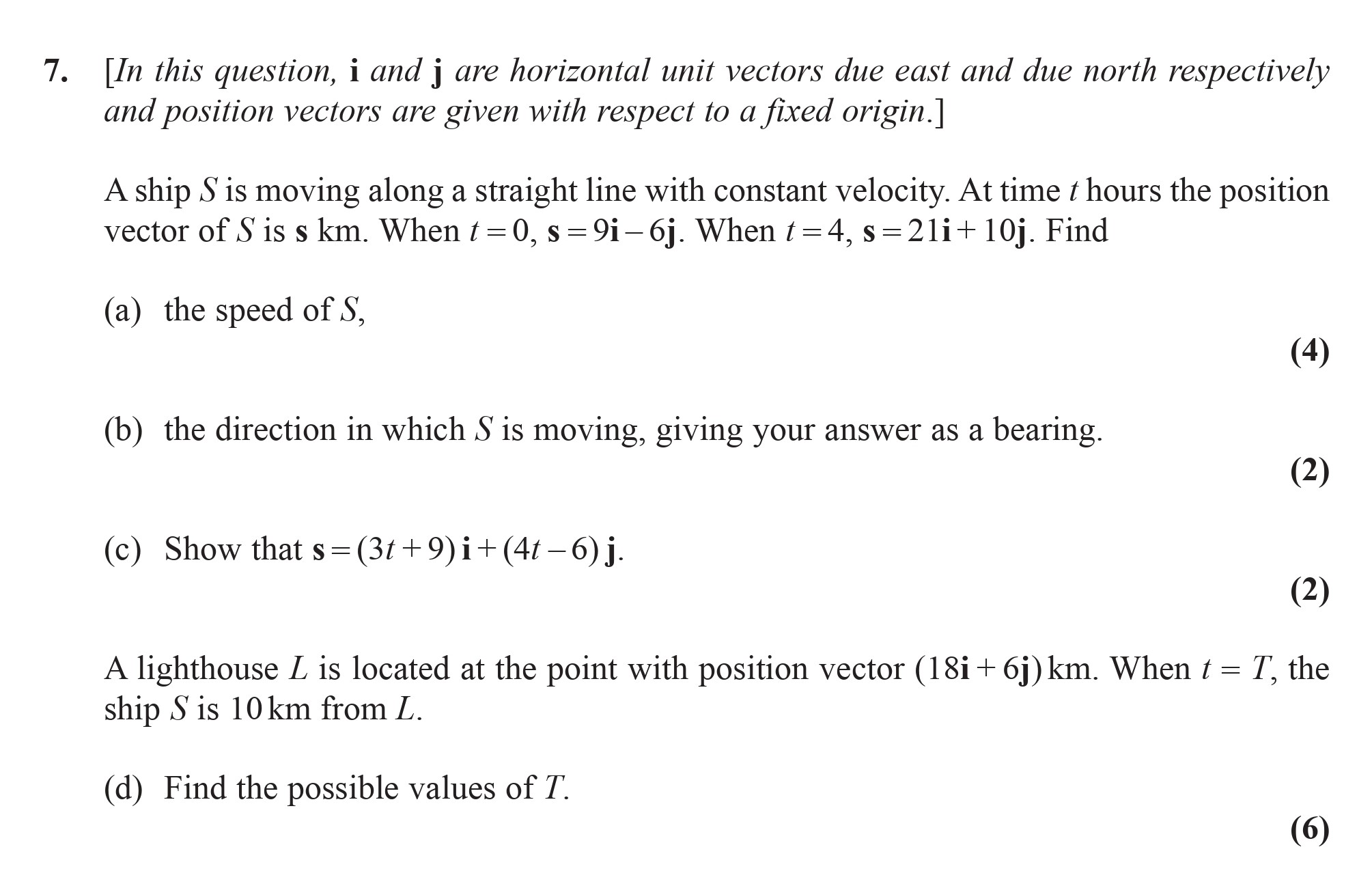

[In this question, i and j are horizontal unit vectors due east and due north respectively and position vectors are given with respect to a fixed origin.] A ship S is moving along a straight line with constant velocity - Edexcel - A-Level Maths Mechanics - Question 7 - 2010 - Paper 1

Question icon

Question 7

[In-this-question,-i-and-j-are-horizontal-unit-vectors-due-east-and-due-north-respectively-and-position-vectors-are-given-with-respect-to-a-fixed-origin.]---A-ship-S-is-moving-along-a-straight-line-with-constant-velocity-Edexcel-A-Level Maths Mechanics-Question 7-2010-Paper 1.png

[In this question, i and j are horizontal unit vectors due east and due north respectively and position vectors are given with respect to a fixed origin.] A ship S... show full transcript

Worked Solution & Example Answer:[In this question, i and j are horizontal unit vectors due east and due north respectively and position vectors are given with respect to a fixed origin.] A ship S is moving along a straight line with constant velocity - Edexcel - A-Level Maths Mechanics - Question 7 - 2010 - Paper 1

Step 1

a) the speed of S

96%

114 rated

Answer

To find the speed of the ship S, we first calculate its velocity vector using the given position vectors at different times. The change in position vector s from t=0 to t=4 is:

to = 0: s = (9i - 6j)
when t = 4: s = (2i + 10j)

The change in position is:

d = (2 - 9)i + (10 + 6)j = -7i + 16j.

Now, the velocity vector v is given by:

v=dt=7i+16j4=74i+4j. v = \frac{d}{t} = \frac{-7i + 16j}{4} = -\frac{7}{4}i + 4j.

The speed is the magnitude of the velocity vector, calculated as follows:

speed=v=(74)2+42=4916+16=49+25616=30516=30545 km/h.\text{speed} = |v| = \sqrt{\left(-\frac{7}{4}\right)^2 + 4^2} = \sqrt{\frac{49}{16} + 16} = \sqrt{\frac{49 + 256}{16}} = \sqrt{\frac{305}{16}} = \frac{\sqrt{305}}{4} \approx 5 \text{ km/h}.

Step 2

b) the direction in which S is moving, giving your answer as a bearing

99%

104 rated

Answer

To find the direction in which S is moving, we need to calculate the angle heta heta using the tangent function:

tan(\theta) = \frac{\text{opposite}}{\text{adjacent}} = \frac{16}{-7} \implies \theta = \tan^{-1}\left(\frac{16}{-7}\right).$$ This angle gives us a bearing; therefore: The bearing is calculated as: $$\text{bearing} = 180 + \theta \approx 180 + 36.87 \approx 217°.$$

Step 3

c) Show that s = (3 + 9)i + (4t − 6)j

96%

101 rated

Answer

From the positions at t=0 and t=4, we have:

At t=0: s=9i6js = 9i - 6j
At t=4: s=2i+10j.s = 2i + 10j.

We can express s in terms of t:

Taking the average velocities:

s=(3+94t+(96)j)=(3+9)i+(4t6)j.s = \left(\frac{3 + 9}{4}t + (9 - 6)j\right) \\ = (3 + 9)i + (4t - 6)j.

Step 4

d) Find the possible values of T

98%

120 rated

Answer

To find the distances between the ship and the lighthouse, we first calculate the position of S relative to L:

The position vector of S can be expressed as:

s=(3T+9)i+(4T6)j.s = (3T + 9)i + (4T - 6)j.

The position vector of L is given by (18i+6j)(18i + 6j). The distance d is:

d=(3T+918)2+(4T66)2=10d = \sqrt{(3T + 9 - 18)^2 + (4T - 6 - 6)^2} = 10

Now,

(3T9)2+(4T12)2=10,\sqrt{(-3T - 9)^2 + (4T - 12)^2} = 10,

Squaring both sides gives:

(3T9)2+(4T12)2=100.(-3T - 9)^2 + (4T - 12)^2 = 100.

Expanding gives:

9T2+54T+81+16T296T+144=100.9T^2 + 54T + 81 + 16T^2 - 96T + 144 = 100.

Combining terms, we have:

25T242T+125=0.25T^2 - 42T + 125 = 0.

Using the quadratic formula:

T=b±b24ac2a=42±(42)24(25)(125)50=1.5. T = \frac{-b \pm \sqrt{b^2 - 4ac}}{2a} = \frac{42 \pm \sqrt{(-42)^2 - 4(25)(125)}}{50} = 1.5. Thus, the possible value of T is T = 1.5.
