[In this question, the unit vectors i and j are due east and due north respectively:] A particle P is moving with constant velocity (−5i + 8j) m s⁻¹ - Edexcel - A-Level Maths Mechanics - Question 6 - 2008 - Paper 1

Question icon

Question 6

[In-this-question,-the-unit-vectors-i-and-j-are-due-east-and-due-north-respectively:]--A-particle-P-is-moving-with-constant-velocity-(−5i-+-8j)-m-s⁻¹-Edexcel-A-Level Maths Mechanics-Question 6-2008-Paper 1.png

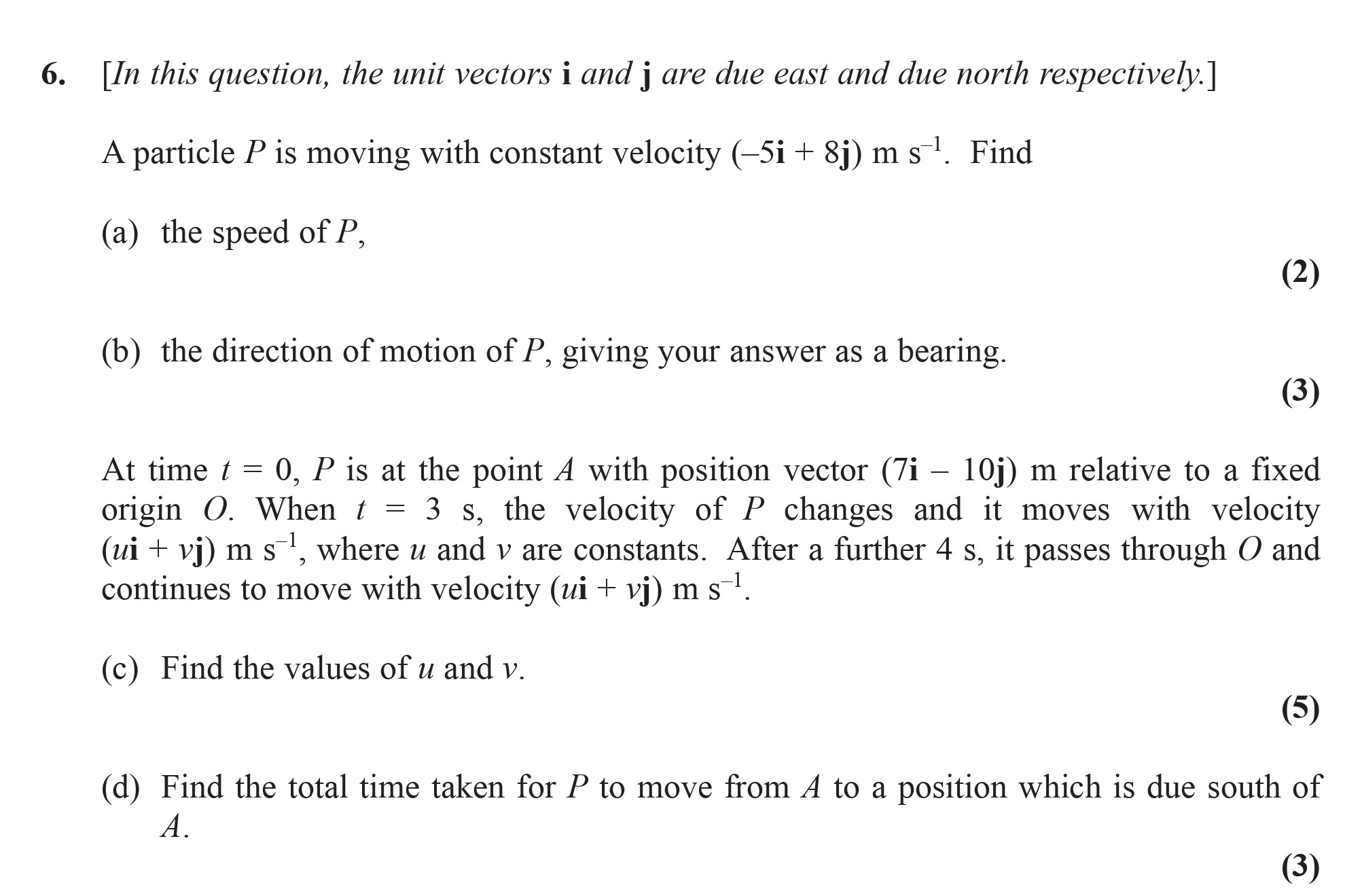

[In this question, the unit vectors i and j are due east and due north respectively:] A particle P is moving with constant velocity (−5i + 8j) m s⁻¹. Find (a) the ... show full transcript

Worked Solution & Example Answer:[In this question, the unit vectors i and j are due east and due north respectively:] A particle P is moving with constant velocity (−5i + 8j) m s⁻¹ - Edexcel - A-Level Maths Mechanics - Question 6 - 2008 - Paper 1

Step 1

Find speed of P

96%

114 rated

Answer

The speed of particle P is calculated using the formula for speed derived from its velocity vector. The velocity vector is given as

v=5i+8jv = -5i + 8j.

To find the speed, we compute:

extSpeed=sqrt(5)2+(8)2=sqrt25+64=sqrt899.43m/s. ext{Speed} = \\sqrt{(-5)^2 + (8)^2} = \\sqrt{25 + 64} = \\sqrt{89} \approx 9.43 \, m/s.

Step 2

Find the direction of motion of P, giving your answer as a bearing.

99%

104 rated

Answer

To determine the direction, we can find the angle that the velocity vector makes with the north direction (the positive j-axis).

Using the formula for the angle,

θ=tan1(85).\theta = \tan^{-1}\left(\frac{8}{-5}\right).

Calculating this gives us an angle in the fourth quadrant. To convert this to a bearing:

  1. Compute the angle:

    θtan1(1.6)58.0\theta \approx \tan^{-1}\left(-1.6\right) \approx -58.0^{\circ}.

  2. The bearing is given by:

    Bearing=36058.0=328.\text{Bearing} = 360 - 58.0 = 328^{\circ}.

Step 3

Find the values of u and v.

96%

101 rated

Answer

At time t = 3 s, the position vector of P is given by:

Position=(7i10j)+3(5i+8j)=(715)i+(10+24)j=8i+14j.\text{Position} = (7i - 10j) + 3(-5i + 8j) = (7 - 15)i + (-10 + 24)j = -8i + 14j.

At this moment, the velocity vector is (u + iv), leading to:

Change in Position=(8i+14j)=3(5i+8j)+3(u+iv).\text{Change in Position} = (-8i + 14j) = 3(-5i + 8j) + 3(u + iv).

By equating components, we can find u and v:

  1. For the i-component:

    8=3u15u=2.-8 = 3u - 15 \rightarrow u = 2.

  2. For the j-component:

    14=24+3vv=3.14 = 24 + 3v \rightarrow v = -3.

Step 4

Find the total time taken for P to move from A to a position which is due south of A.

98%

120 rated

Answer

The position due south of A can be represented as (7i - k), where k is the y-component, which can be solved with:

The initial point A is at (7i - 10j) and after 3 seconds it moves with a new velocity:

New Position=(78)+(10+14)=1i+14j.\text{New Position} = (7 - 8) + (-10 + 14) = -1i + 14j.

The particle continues to move in the direction of velocity (2i - 3j) m/s.

To calculate the time taken to reach the south position, let's set this equality and solve for time t:

Position after textseconds=7i(10+3t)j.\text{Position after } t ext{ seconds} = 7i - (10 + 3t) j.

Set the x-coordinate to 0 to find time:

72t=0t=3.5s.7 - 2t = 0 \rightarrow t = 3.5 \, s.

Total time taken = time at the start + time to reach = 3 s + 3.5 s = 10.5 s.
