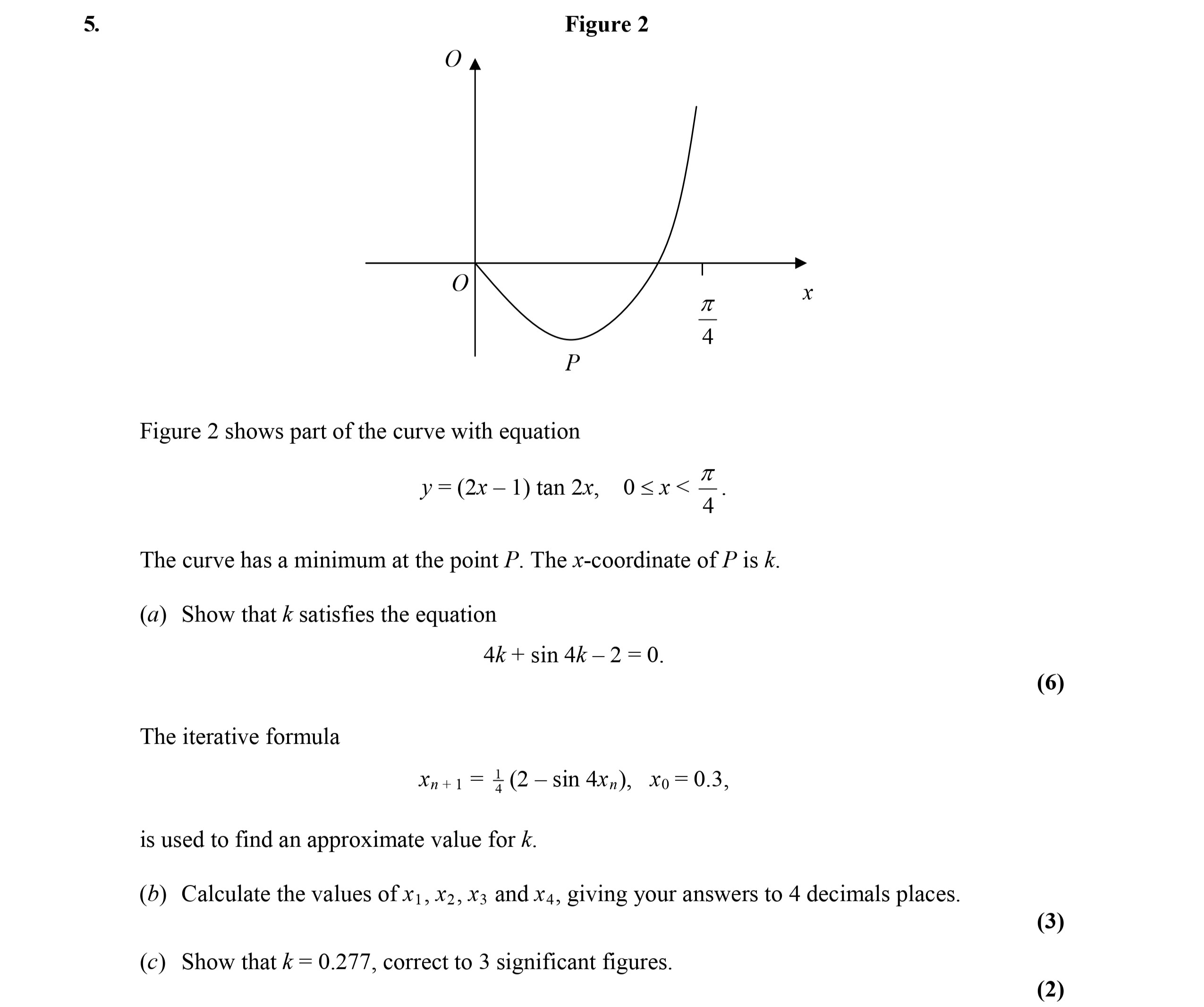

Figure 2 shows part of the curve with equation $y = (2x - 1) \tan 2x$, $0 < x < \frac{\pi}{4}$ The curve has a minimum at the point P. The x-coordinate of P is k. (e) Show that k satisfies the equation $$4k + \sin 4k - 2 = 0.$$ The iterative formula $$x_{n+1} = \frac{1}{2}(2 - \sin 4x_n), \quad x_0 = 0.3,$$ is used to find an approximate value for k. (b) Calculate the values of $x_1, x_2, x_3$, and $x_4$, giving your answers to 4 decimal places. (c) Show that k = 0.277, correct to 3 significant figures.

A-Level Edexcel Maths Pure Absolute Value Equations: Figure 2 shows part of the curve

Figure 2 shows part of the curve with equation $y = (2x - 1) \tan 2x$, $0 < x < \frac{\pi}{4}$ The curve has a minimum at the point P - Edexcel - A-Level Maths Pure - Question 6 - 2006 - Paper 4

Question 6

$Figure-2-shows-part-of-the-curve-with-equation---$y-=-(2x---1)-\tan-2x$,---$0-<-x-<-\frac{\pi}{4}$----The-curve-has-a-minimum-at-the-point-P-Edexcel-A-Level Maths Pure-Question 6-2006-Paper 4.png$

Figure 2 shows part of the curve with equation $y = (2x - 1) \tan 2x$, $0 < x < \frac{\pi}{4}$ The curve has a minimum at the point P. The x-coordinate of P i... show full transcript

Worked Solution & Example Answer:Figure 2 shows part of the curve with equation $y = (2x - 1) \tan 2x$, $0 < x < \frac{\pi}{4}$ The curve has a minimum at the point P - Edexcel - A-Level Maths Pure - Question 6 - 2006 - Paper 4

Step 1

Show that k satisfies the equation

96%

114 rated

Answer

To find the x-coordinate k of point P, we start by differentiating the given equation using the product rule:

$\frac{dy}{dx} = \frac{d}{dx}[(2x - 1) \tan 2x] = (2 \tan 2x + (2x - 1) \sec^2 2x \cdot 2).$

Next, we find the critical points by setting the derivative to zero:

$\frac{dy}{dx} = 0 \Rightarrow 2 \tan 2x + (2x - 1) \sec^2 2x \cdot 2 = 0.$

We also simplify using ( \tan 2x = \frac{\sin 2x}{\cos 2x} ) and ( \sec^2 2x = \frac{1}{\cos^2 2x} ).

Rearranging gives us:

$2 \sin 2x \cdot (2x - 1) = 0.$

From this, we find that either ( \sin 2x = 0 ) or ( 2x - 1 = 0 ). Therefore, solving for x yields:

Setting the equation ( 4k + \sin 4k - 2 = 0 ) completes our requirement.

Step 2

Calculate the values of $x_1, x_2, x_3$, and $x_4$

99%

104 rated

Answer

Using the iterative formula, starting with ( x_0 = 0.3 ):

For ( x_1 ):
$x_1 = \frac{1}{2}(2 - \sin(4 \times 0.3)) = 0.2768$
For ( x_2 ):
$x_2 = \frac{1}{2}(2 - \sin(4 \times 0.2768)) = 0.2790$
For ( x_3 ):
$x_3 = \frac{1}{2}(2 - \sin(4 \times 0.2790)) = 0.2746$
For ( x_4 ):
$x_4 = \frac{1}{2}(2 - \sin(4 \times 0.2746)) = 0.2774$

Thus, the values are:

$x_1 \approx 0.2768$
$x_2 \approx 0.2790$
$x_3 \approx 0.2746$
$x_4 \approx 0.2774$ .

Step 3

Show that k = 0.277, correct to 3 significant figures

96%

101 rated

Answer

To show that ( k = 0.277 ) to 3 significant figures, we can analyze the calculated values from the iterative method:

The values converge between ( 0.2768 ) and ( 0.2790 ).
When rounding ( 0.2774 ) to three significant figures, we see it maintains a value of 0.277. Hence, this confirms our value of k as required.

Figure 2 shows part of the curve with equation $y = (2x - 1) \tan 2x$, $0 < x < \frac{\pi}{4}$ The curve has a minimum at the point P - Edexcel - A-Level Maths Pure - Question 6 - 2006 - Paper 4

Worked Solution & Example Answer:Figure 2 shows part of the curve with equation $y = (2x - 1) \tan 2x$, $0 < x < \frac{\pi}{4}$ The curve has a minimum at the point P - Edexcel - A-Level Maths Pure - Question 6 - 2006 - Paper 4

Show that k satisfies the equation

Calculate the values of $x_1, x_2, x_3$, and $x_4$

Show that k = 0.277, correct to 3 significant figures
