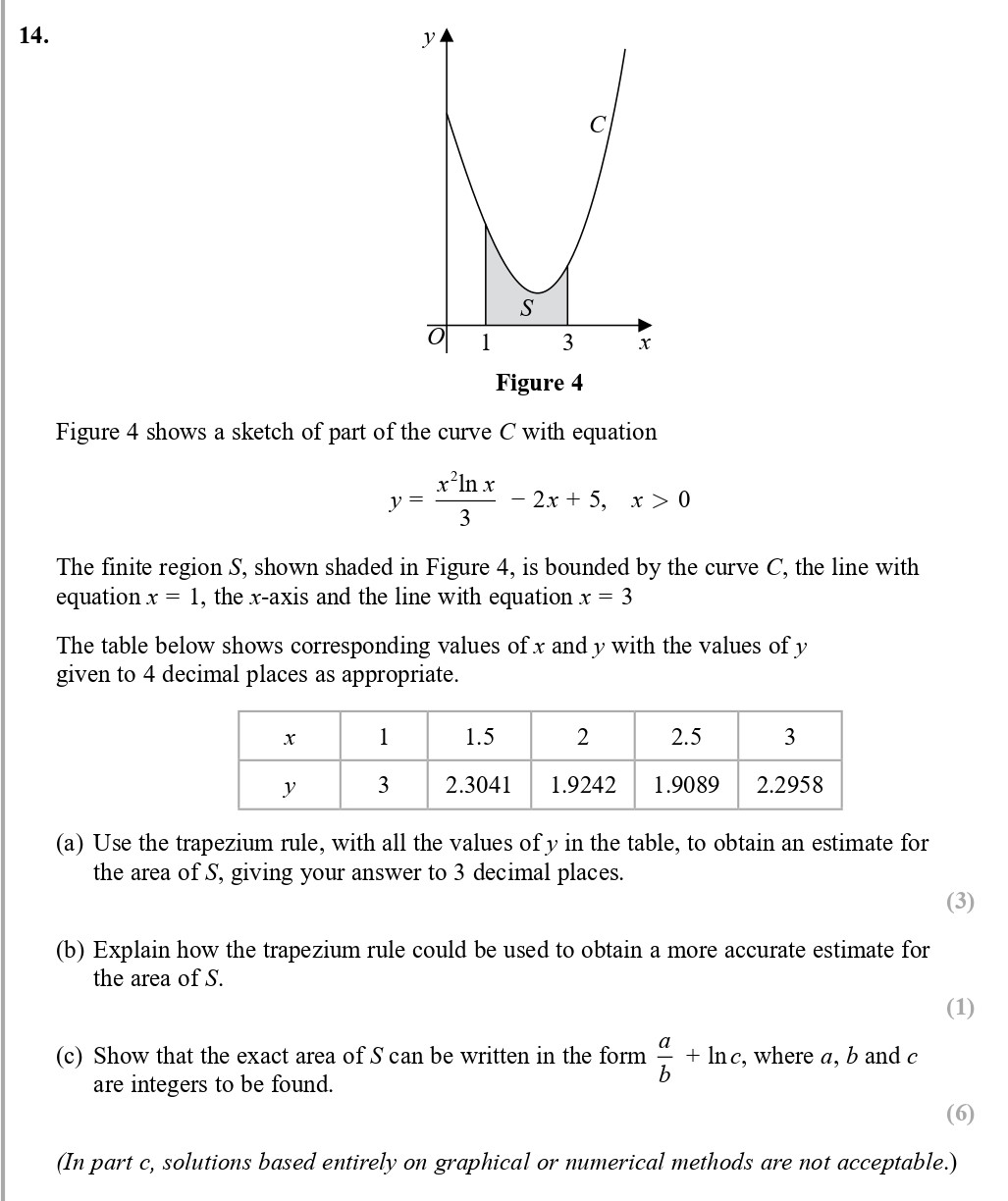

Figure 4 shows a sketch of part of the curve C with equation $$y = \frac{x^2 \ln x}{3} - 2x + 5, \; x > 0$$ The finite region S, shown shaded in Figure 4, is bounded by the curve C, the line with equation $x = 1$, the x-axis and the line with equation $x = 3$ - Edexcel - A-Level Maths Pure - Question 1 - 2017 - Paper 1

Question icon

Question 1

Figure-4-shows-a-sketch-of-part-of-the-curve-C-with-equation-$$y-=-\frac{x^2-\ln-x}{3}---2x-+-5,-\;-x->-0$$--The-finite-region-S,-shown-shaded-in-Figure-4,-is-bounded-by-the-curve-C,-the-line-with-equation-$x-=-1$,-the-x-axis-and-the-line-with-equation-$x-=-3$-Edexcel-A-Level Maths Pure-Question 1-2017-Paper 1.png

Figure 4 shows a sketch of part of the curve C with equation $$y = \frac{x^2 \ln x}{3} - 2x + 5, \; x > 0$$ The finite region S, shown shaded in Figure 4, is bounde... show full transcript

Worked Solution & Example Answer:Figure 4 shows a sketch of part of the curve C with equation $$y = \frac{x^2 \ln x}{3} - 2x + 5, \; x > 0$$ The finite region S, shown shaded in Figure 4, is bounded by the curve C, the line with equation $x = 1$, the x-axis and the line with equation $x = 3$ - Edexcel - A-Level Maths Pure - Question 1 - 2017 - Paper 1

Step 1

Use the trapezium rule, with all the values of $y$ in the table, to obtain an estimate for the area of S, giving your answer to 3 decimal places.

96%

114 rated

Answer

To estimate the area of region S using the trapezium rule, we first define the strip width: h=ban=314=0.5h = \frac{b - a}{n} = \frac{3 - 1}{4} = 0.5

The trapezium rule formula is given by: Area=h2[f(x0)+2(f(x1)+f(x2)+f(x3))+f(x4)]\text{Area} = \frac{h}{2}[f(x_0) + 2(f(x_1) + f(x_2) + f(x_3)) + f(x_4)]

Substituting the values from the table: Area=0.52[2.3041+2(1.9242+1.9089+2.2958)]\text{Area} = \frac{0.5}{2}[2.3041 + 2(1.9242 + 1.9089 + 2.2958)]

Calculating this gives: =0.25[2.3041+2(1.9242+1.9089+2.2958)]= 0.25[2.3041 + 2(1.9242 + 1.9089 + 2.2958)] =0.25[2.3041+2(6.1289)]= 0.25[2.3041 + 2(6.1289)] =0.25[2.3041+12.2578]= 0.25[2.3041 + 12.2578] =0.25[14.5619]= 0.25[14.5619] 3.6405\approx 3.6405

Thus, the estimate for the area of S, rounded to three decimal places, is: Area3.641\text{Area} \approx 3.641

Step 2

Explain how the trapezium rule could be used to obtain a more accurate estimate for the area of S.

99%

104 rated

Answer

To achieve a more accurate estimate using the trapezium rule, one can:

  • Increase the number of strips: This reduces the width of each strip, making the approximation closer to the actual area under the curve.
  • Decrease the width of the strips: By taking smaller intervals, we capture more fluctuations in the function's value.
  • Use more trapezia: This essentially means applying the trapezium method repeatedly over smaller ranges for better accuracy.

Step 3

Show that the exact area of S can be written in the form $\frac{a}{b} + I \ln c$, where $a$, $b$ and $c$ are integers to be found.

96%

101 rated

Answer

To find the exact area of S, we calculate:

Area=13(x2lnx32x+5)dx\text{Area} = \int_1^3 \left( \frac{x^2 \ln x}{3} - 2x + 5 \right) dx

We can split this integral: =13x2lnx3dx132xdx+135dx= \int_1^3 \frac{x^2 \ln x}{3} dx - \int_1^3 2x dx + \int_1^3 5 dx

Now, we integrate each part:

  1. Integration by parts for x2lnx3dx\int \frac{x^2 \ln x}{3} dx: Let u=lnxu = \ln x and dv=x23dxdv = \frac{x^2}{3} dx. Then, du=1xdx,v=x39du = \frac{1}{x} dx, \quad v = \frac{x^3}{9} This gives: =[x39lnx]1313x391xdx= \left[ \frac{x^3}{9} \ln x \right]_1^3 - \int_1^3 \frac{x^3}{9} \cdot \frac{1}{x} dx

  2. The second integral: 132xdx=[x2]13=91=8\int_1^3 2x dx = [x^2]_1^3 = 9 - 1 = 8

  3. The third integral: 135dx=[5x]13=155=10\int_1^3 5 dx = [5x]_1^3 = 15 - 5 = 10

Putting all the calculations together will yield the area in the desired form, plus some simplification, resulting in: Area=2827  where  a=28,b=27,c=27\text{Area} = \frac{28}{27} \; \text{where} \; a=28, b=27, c=27.
