Question 9

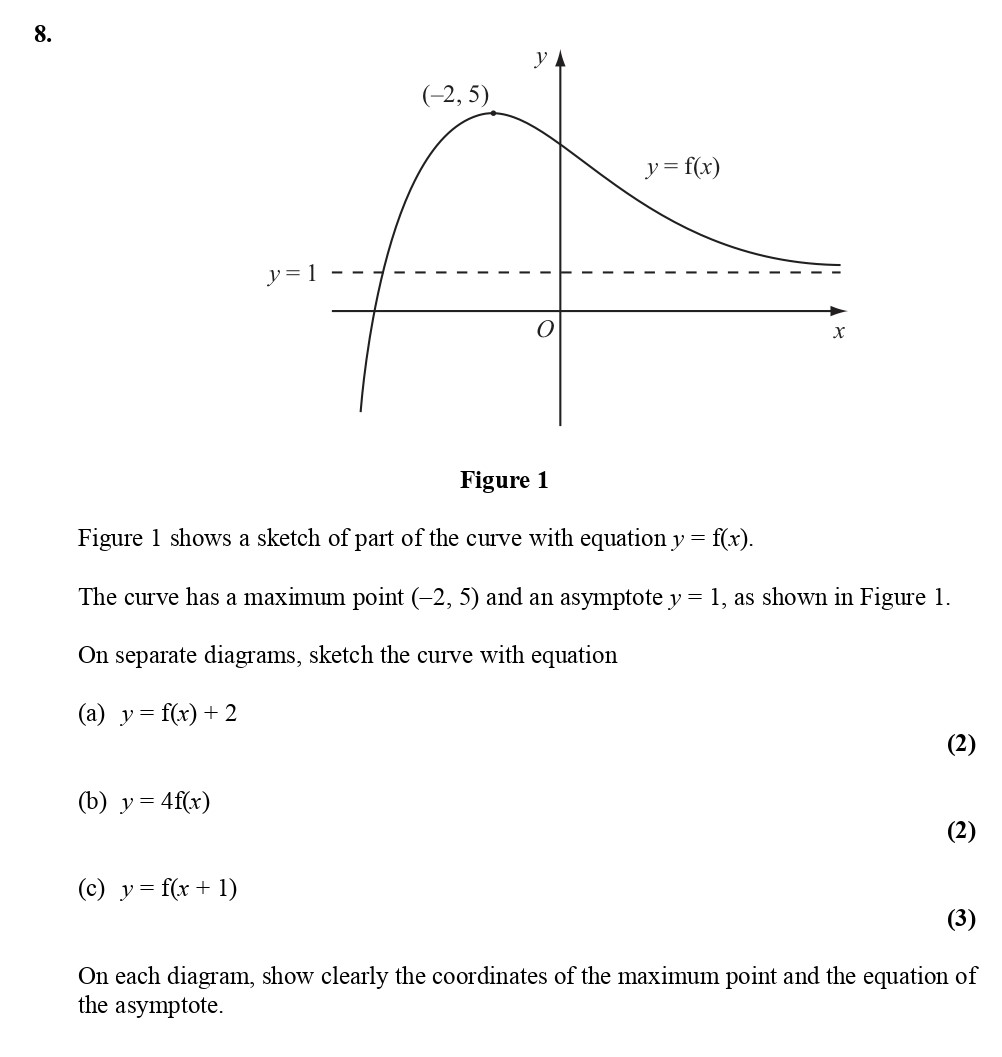

Figure 1 shows a sketch of part of the curve with equation $y = f(x)$.
The curve has a maximum point $(-2, 5)$ and an asymptote $y = 1$, as shown in Figure 1.
On... show full transcript
Worked Solution & Example Answer:Figure 1 shows a sketch of part of the curve with equation $y = f(x)$ - Edexcel - A-Level Maths Pure - Question 9 - 2010 - Paper 2
Step 1
y = f(x) + 2
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
For this equation, the graph of f(x) is translated vertically upwards by 2 units. Thus, the maximum point will shift from (−2,5) to (−2,7), while the asymptote will also move from y=1 to y=3. Therefore, the final sketch will show:
Maximum point: (−2,7)
Asymptote: y=3.
Step 2
y = 4f(x)
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
This transformation stretches the graph vertically by a factor of 4. Therefore, the maximum point is scaled from (−2,5) to (−2,20). The asymptote will remain at y=1. On the sketch, include:
Maximum point: (−2,20)
Asymptote: y=1.
Step 3
y = f(x + 1)
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
In this case, the graph of f(x) is translated horizontally to the left by 1 unit. The maximum point moves from (−2,5) to (−3,5), while the asymptote remains unchanged at y=1. The final sketch should depict:
