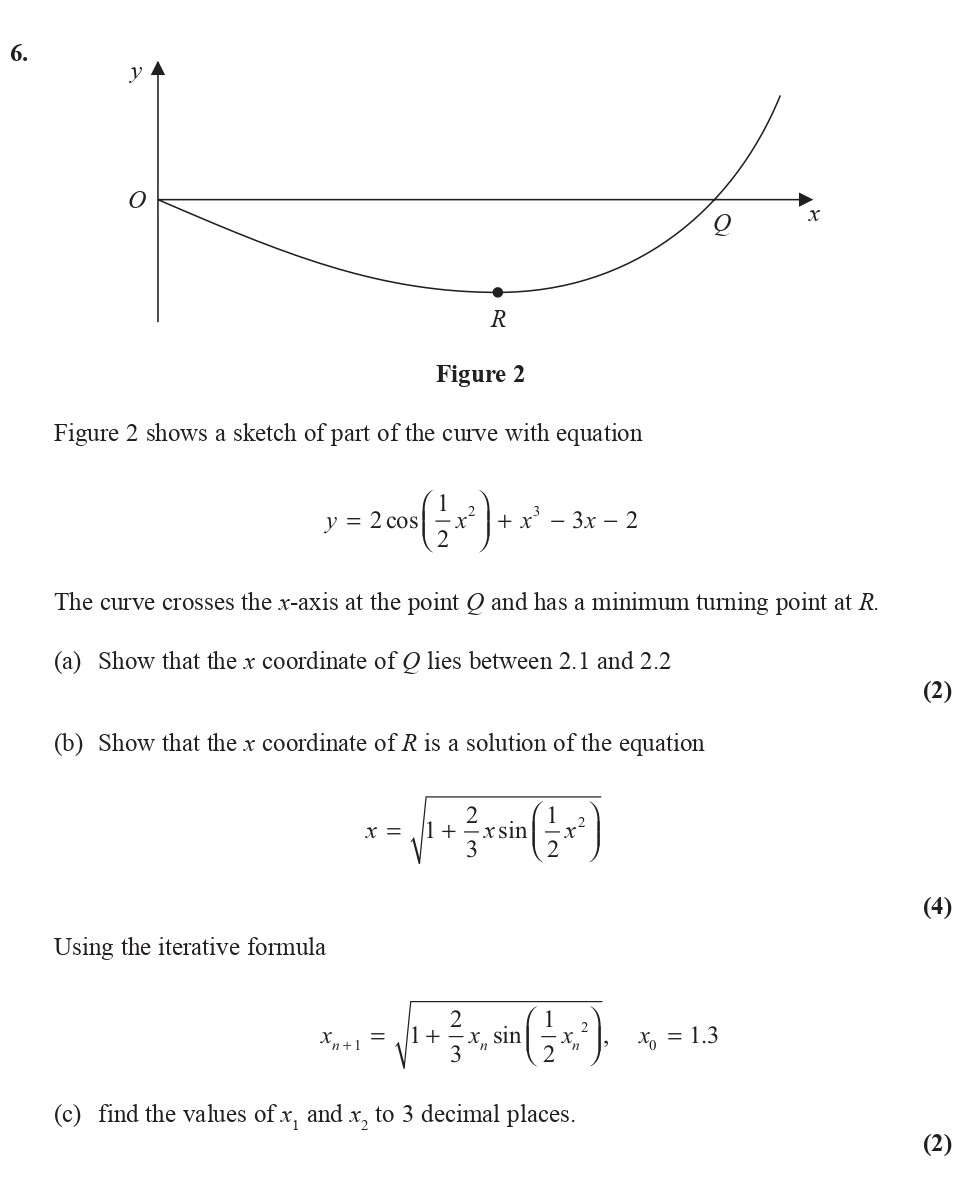

Figure 2 shows a sketch of part of the curve with equation y = 2 \, ext{cos} \, igg(\frac{1}{2} x^2 \bigg) + x^3 - 3x - 2 The curve crosses the x-axis at the point Q and has a minimum turning point at R - Edexcel - A-Level Maths Pure - Question 8 - 2014 - Paper 5

Question icon

Question 8

Figure-2-shows-a-sketch-of-part-of-the-curve-with-equation--y-=-2-\,--ext{cos}-\,-igg(\frac{1}{2}-x^2-\bigg)-+-x^3---3x---2--The-curve-crosses-the-x-axis-at-the-point-Q-and-has-a-minimum-turning-point-at-R-Edexcel-A-Level Maths Pure-Question 8-2014-Paper 5.png

Figure 2 shows a sketch of part of the curve with equation y = 2 \, ext{cos} \, igg(\frac{1}{2} x^2 \bigg) + x^3 - 3x - 2 The curve crosses the x-axis at the poi... show full transcript

Worked Solution & Example Answer:Figure 2 shows a sketch of part of the curve with equation y = 2 \, ext{cos} \, igg(\frac{1}{2} x^2 \bigg) + x^3 - 3x - 2 The curve crosses the x-axis at the point Q and has a minimum turning point at R - Edexcel - A-Level Maths Pure - Question 8 - 2014 - Paper 5

Step 1

Show that the x coordinate of Q lies between 2.1 and 2.2.

96%

114 rated

Answer

To determine the x coordinate of Q, we need to find the values of y at x = 2.1 and x = 2.2. Calculating:

  1. For x = 2.1:

y(2.1) = 2 , ext{cos} , igg(\frac{1}{2} (2.1)^2 \bigg) + (2.1)^3 - 3(2.1) - 2 \
= 2 , ext{cos} , (2.205) + 9.261 - 6.3 - 2 = 2 , ext{cos} , (2.205) + 0.961

  1. For x = 2.2:

y(2.2) = 2 , ext{cos} , igg(\frac{1}{2} (2.2)^2 \bigg) + (2.2)^3 - 3(2.2) - 2 \ = 2 , ext{cos} , (2.42) + 10.648 - 6.6 - 2 = 2 , ext{cos} , (2.42) + 2.048

Using the results, we observe a change of signs between 2.1 and 2.2, confirming that the x coordinate of Q lies between these values.

Step 2

Show that the x coordinate of R is a solution of the equation.

99%

104 rated

Answer

To prove that the x coordinate of R satisfies the equation given, we start with the expression:

x=1+23sin(12x2)x = \sqrt{1 + \frac{2}{3} \sin \bigg( \frac{1}{2} x^2 \bigg)}

By substituting the derivative of y into our analysis:

  1. Differentiate y with respect to x: dydx=2sin(12x2)+3x23\frac{dy}{dx} = -2 \sin \bigg( \frac{1}{2} x^2 \bigg) + 3x^2 - 3
  2. Set (\frac{dy}{dx} = 0) to find critical points where 2sin(12x2)+3x23=0-2 \sin \bigg( \frac{1}{2} x^2 \bigg) + 3x^2 - 3 = 0 and find intersections accordingly. This ensures that R satisfies the equation and boundaries are established.

Step 3

find the values of x_1 and x_2 to 3 decimal places.

96%

101 rated

Answer

To find the values of x_1 and x_2 using the iterative formula, we begin with:

xn+1=1+23sin(12xn2)x_{n+1} = \sqrt{1 + \frac{2}{3} \sin \bigg( \frac{1}{2} x_n^2 \bigg)}

Using the initial value x_0 = 1.3:

  1. For n = 0: x1=1+23sin(12(1.3)2)x_1 = \sqrt{1 + \frac{2}{3} \sin \bigg( \frac{1}{2} (1.3)^2 \bigg)} Calculate: x11.284 (to3decimalplaces)x_1 \approx 1.284\ (to \, 3 \, decimal \, places)
  2. For n = 1: x2=1+23sin(12(1.284)2)x_2 = \sqrt{1 + \frac{2}{3} \sin \bigg( \frac{1}{2} (1.284)^2 \bigg)} Calculate: x21.276 (to3decimalplaces)x_2 \approx 1.276 \ (to \, 3 \, decimal \, places)

Thus, the values are:

  • x_1 = 1.284
  • x_2 = 1.276.
