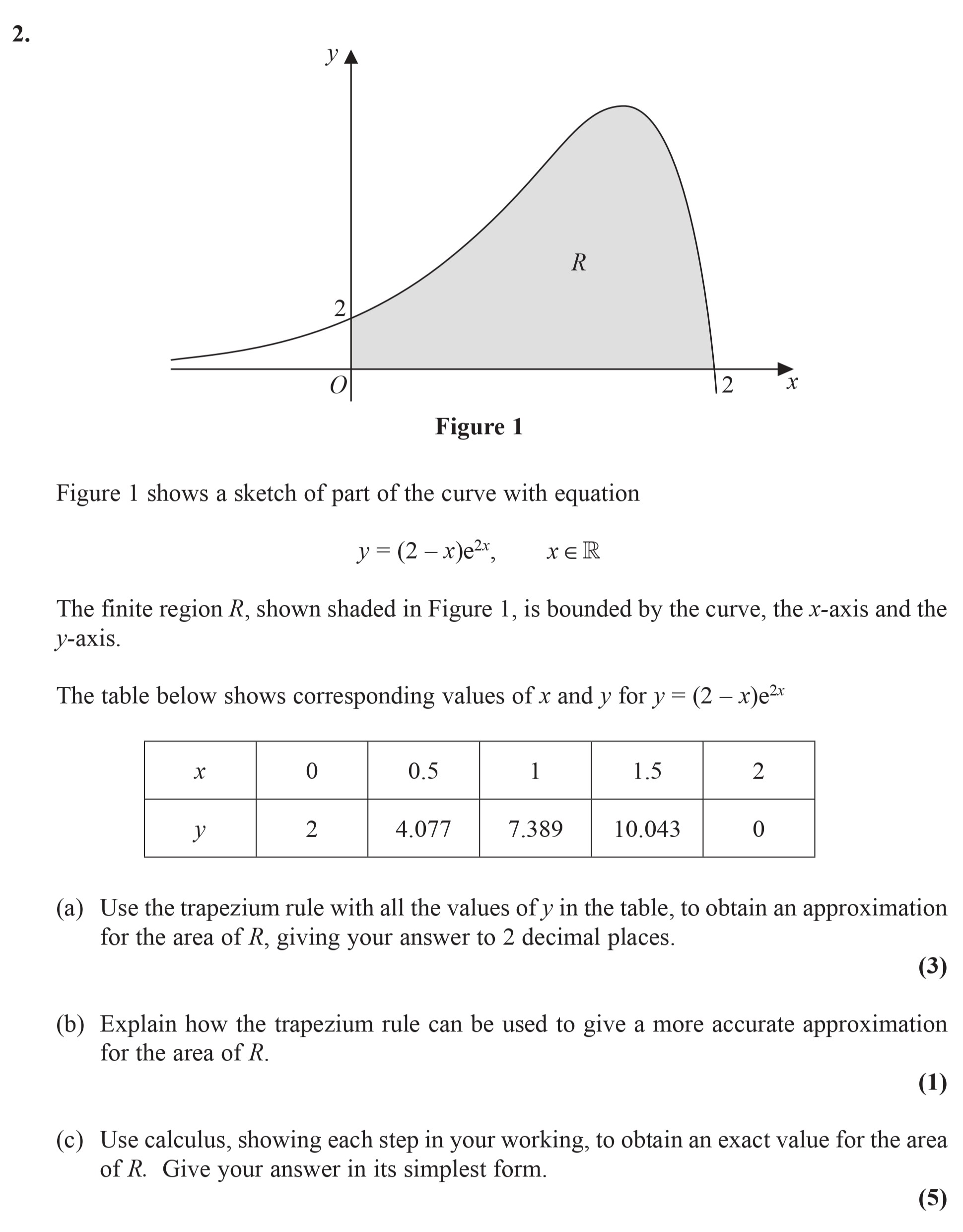

Figure 1 shows a sketch of part of the curve with equation y = (2 - x)e^{2x}, ext{x} ext{ in } ext{R} The finite region R, shown shaded in Figure 1, is bounded by the curve, the x-axis and the y-axis - Edexcel - A-Level Maths Pure - Question 4 - 2014 - Paper 8

Question icon

Question 4

Figure-1-shows-a-sketch-of-part-of-the-curve-with-equation--y-=-(2---x)e^{2x},--ext{x}--ext{-in-}--ext{R}--The-finite-region-R,-shown-shaded-in-Figure-1,-is-bounded-by-the-curve,-the-x-axis-and-the-y-axis-Edexcel-A-Level Maths Pure-Question 4-2014-Paper 8.png

Figure 1 shows a sketch of part of the curve with equation y = (2 - x)e^{2x}, ext{x} ext{ in } ext{R} The finite region R, shown shaded in Figure 1, is bounded ... show full transcript

Worked Solution & Example Answer:Figure 1 shows a sketch of part of the curve with equation y = (2 - x)e^{2x}, ext{x} ext{ in } ext{R} The finite region R, shown shaded in Figure 1, is bounded by the curve, the x-axis and the y-axis - Edexcel - A-Level Maths Pure - Question 4 - 2014 - Paper 8

Step 1

Use the trapezium rule with all the values of y in the table, to obtain an approximation for the area of R, giving your answer to 2 decimal places.

96%

114 rated

Answer

To apply the trapezium rule, we first identify the values from the table:

  • When x = 0, y = 2
  • When x = 0.5, y ≈ 4.077
  • When x = 1, y ≈ 7.389
  • When x = 1.5, y ≈ 10.043
  • When x = 2, y = 0

The area can be approximated using the formula:

A=12h(y0+2y1+2y2+2y3+y4)A = \frac{1}{2}h(y_0 + 2y_1 + 2y_2 + 2y_3 + y_4)

Here, each strip's width, hh, is 0.5 (the distance between each x-value). Therefore, we compute:

A=12×0.5×(2+2×4.077+2×7.389+2×10.043+0)A = \frac{1}{2} \times 0.5 \times (2 + 2 \times 4.077 + 2 \times 7.389 + 2 \times 10.043 + 0)

Calculating this gives:

  • Area = 12×0.5×(2+8.154+14.778+20.086+0)\frac{1}{2} \times 0.5 \times (2 + 8.154 + 14.778 + 20.086 + 0)
  • Area = 12×0.5×45.018=11.25\frac{1}{2} \times 0.5 \times 45.018 = 11.25 (to 2 decimal places).

Step 2

Explain how the trapezium rule can be used to give a more accurate approximation for the area of R.

99%

104 rated

Answer

The trapezium rule can be made more accurate by:

  • Increasing the number of intervals (or strips) used, which leads to a finer approximation.
  • Making the width of the trapezoids smaller, resulting in better approximations of the curve's shape.
  • Utilizing more values of x (more x-coordinates) to gather more sample points of the function.

Step 3

Use calculus, showing each step in your working, to obtain an exact value for the area of R. Give your answer in its simplest form.

96%

101 rated

Answer

To find the exact area under the curve, we set up the integral:

A=02(2x)e2xdxA = \int_0^2 (2 - x)e^{2x} \, dx

We can use integration by parts: Let:

  • u=(2x)u = (2 - x), so that du=dxdu = -dx
  • dv=e2xdxdv = e^{2x} dx, hence v=12e2xv = \frac{1}{2}e^{2x}

Applying integration by parts gives:

A=[12(2x)e2x]020212e2xdxA = \left[ \frac{1}{2}(2 - x)e^{2x} \right]_0^2 - \int_0^2 -\frac{1}{2}e^{2x} \, dx

Calculating the first term:
At x=2, (22)e4=0(2 - 2)e^{4} = 0 At x=0, (20)e0=2(2 - 0)e^{0} = 2. Therefore,
A=12(02)0212e2xdxA = \frac{1}{2}(0 - 2) - \int_0^2 -\frac{1}{2}e^{2x} \, dx

Evaluating the integral: 12e2xdx=14e2x\int -\frac{1}{2}e^{2x} \, dx = -\frac{1}{4}e^{2x}

Thus, A=1+(14e4+14e0)=114(e41)A = -1 + \left(-\frac{1}{4}e^{4} + \frac{1}{4}e^{0} \right) = -1 - \frac{1}{4}(e^{4} - 1)

To finalize the area: A=14114e4A = \frac{1}{4} - 1 - \frac{1}{4}e^{4}

Hence, the exact area is: 14114e4=3.2514e4\frac{1}{4} - 1 - \frac{1}{4}e^{4} = -3.25 - \frac{1}{4}e^{4}
