Question 10
A car stops at two sets of traffic lights.

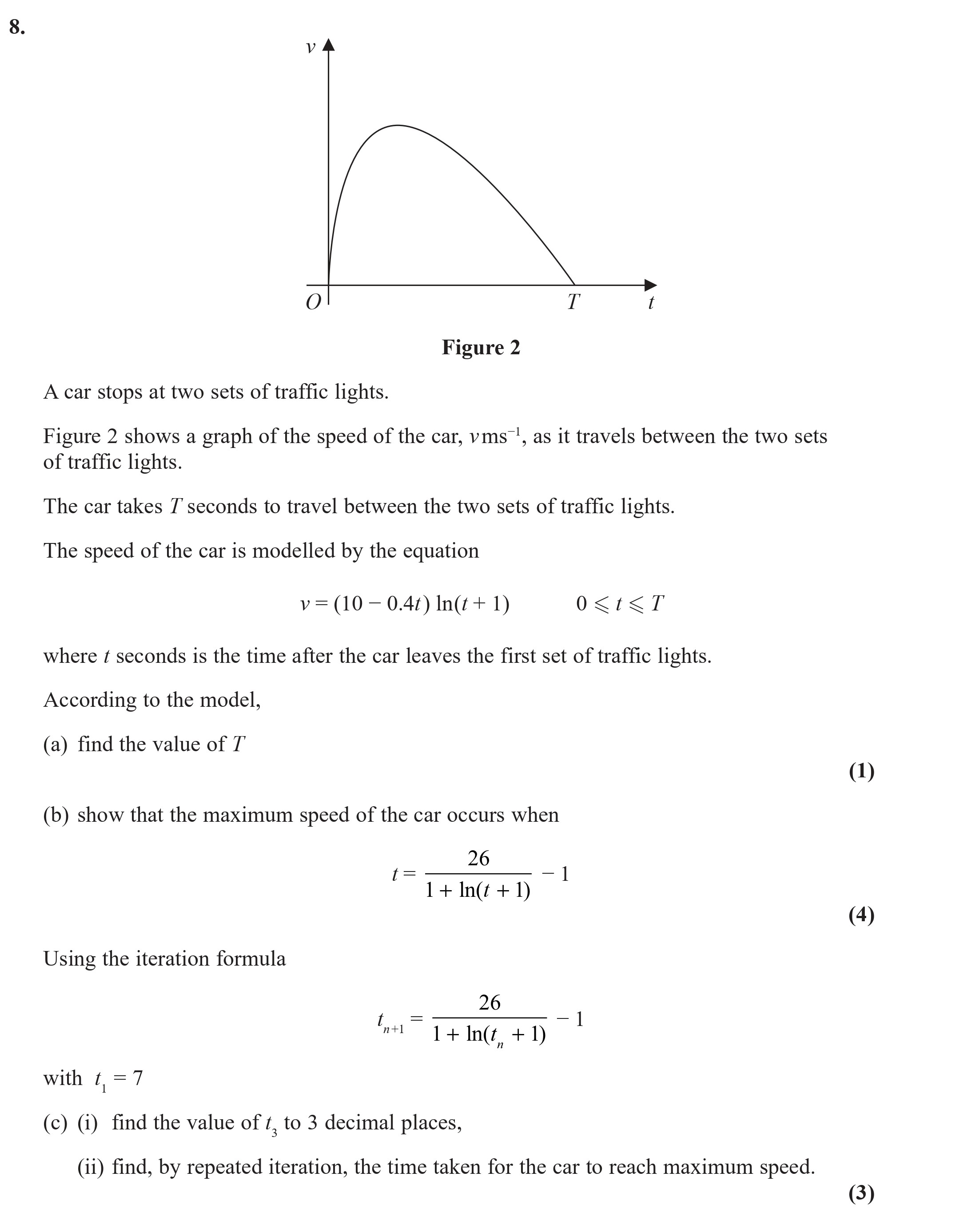

Figure 2 shows a graph of the speed of the car, v m/sˆ-1, as it travels between the two sets of traffic lights.
The car ... show full transcript
Worked Solution & Example Answer:A car stops at two sets of traffic lights - Edexcel - A-Level Maths Pure - Question 10 - 2022 - Paper 1
Step 1
find the value of T
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
To find the value of T, we set the speed v to 0 and solve for the time t where the car comes to stop:
0=(10−0.4T)ln(T+1)
This yields:
Either ( 10 - 0.4T = 0 ) which gives ( T = 25 ) seconds.
Or ( \ln(T + 1) = 0 ) implying ( T = 0 ).
Thus, the only valid solution is ( T = 25 ) seconds.
Step 2
show that the maximum speed of the car occurs when
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
To determine when the maximum speed occurs, we differentiate the speed function:
v=(10−0.4t)ln(t+1)
Using the product rule:
dtdv=((10−0.4)t+11+ln(t+1)(−0.4))
Set ( \frac{dv}{dt} = 0 ) to find critical points:
This leads to:
( (10 - 0.4) \frac{1}{t + 1} = 0.4 \ln(t + 1) )
Rearranging gives:
( t^* = \frac{26}{1 + \ln(t + 1)} - 1 )
Thus proving the maximum speed occurs at ( t^*).
Step 3
find the value of t_3 to 3 decimal places
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
