Question 8

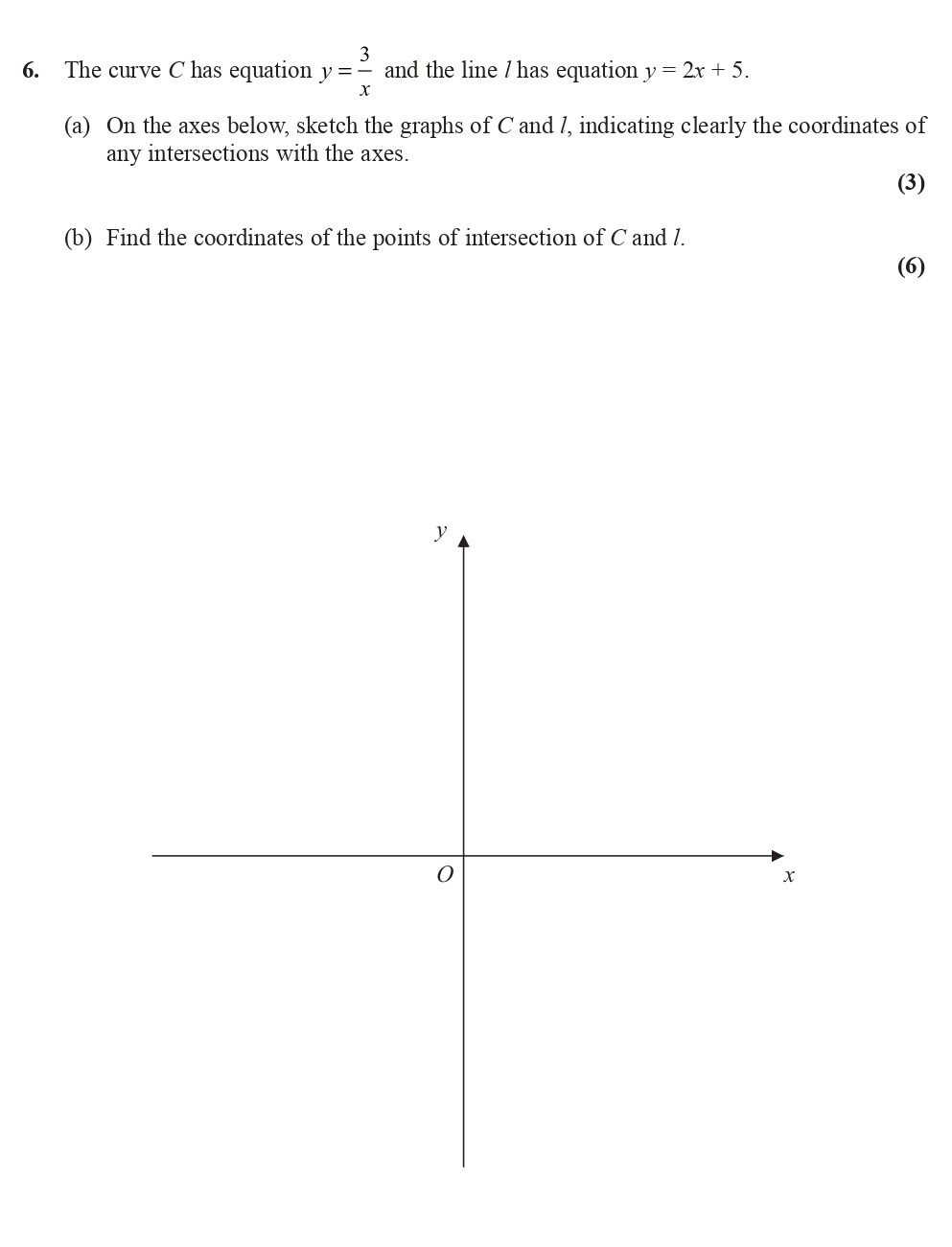

The curve C has equation $y = \frac{3}{x}$ and the line l has equation $y = 2x + 5$.
(a) On the axes below, sketch the graphs of C and l, indicating clearly the coo... show full transcript
Worked Solution & Example Answer:The curve C has equation $y = \frac{3}{x}$ and the line l has equation $y = 2x + 5$ - Edexcel - A-Level Maths Pure - Question 8 - 2008 - Paper 1
Step 1
Part (a): Sketch the graphs of C and l
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
To sketch the graphs:
Curve C: The equation of the curve is given by:
y=x3
The curve has two branches in quadrants I and III since it is hyperbolic.
The x-intercept occurs when y=0, which is not possible for this equation (as asymptotic).
The y-intercept occurs when x=1, thus we plot the point (1,3).
Line l: The equation of the line is:
y=2x+5
The x-intercept can be found by setting y=0:
2x+5=0⟹x=−25
The y-intercept occurs when x=0, giving y=5. Thus, the point (0,5) is also plotted.
Sketch: Using these intercepts and the shape described, we can sketch the graph of both functions on the axes provided.
Step 2
Part (b): Find the coordinates of the points of intersection of C and l
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
