Poly(butene) is a polymer made from crude oil in two stages - AQA - GCSE Chemistry - Question 7 - 2014 - Paper 1
Question 7

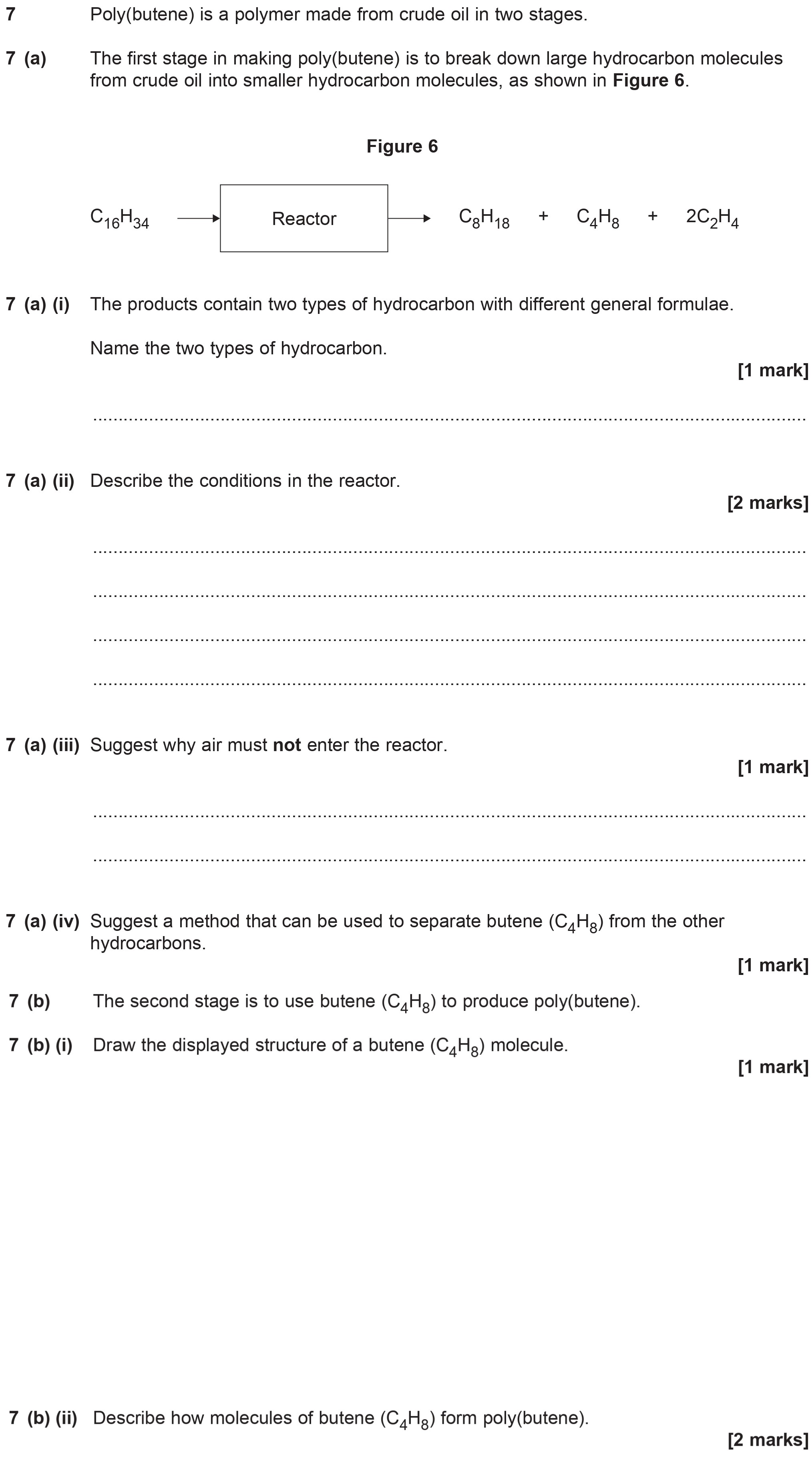

Poly(butene) is a polymer made from crude oil in two stages.
The first stage in making poly(butene) is to break down large hydrocarbon molecules from crude oil into... show full transcript
Worked Solution & Example Answer:Poly(butene) is a polymer made from crude oil in two stages - AQA - GCSE Chemistry - Question 7 - 2014 - Paper 1
Step 1
The products contain two types of hydrocarbon.
Name the two types of hydrocarbon.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The two types of hydrocarbon are alkanes and alkenes.
Step 2
Describe the conditions in the reactor.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The conditions in the reactor include a high temperature, typically ranging from 300 to 900 °C, and the presence of a catalyst or steam. This allows for the breakdown of large hydrocarbons into smaller molecules.
Step 3
Suggest why air must not enter the reactor.
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Air must not enter the reactor because oxygen can react with the hydrocarbons, which could lead to combustion and an explosion.
Step 4
Suggest a method that can be used to separate butene (C4H8) from the other hydrocarbons.
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
A suitable method for separating butene from other hydrocarbons is fractional distillation.
Step 5
Draw the displayed structure of a butene (C4H8) molecule.
97%
117 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The displayed structure of a butene (C4H8) molecule is shown below:
H H H
\\ | /
C=C
/ \
H H
Step 6
Describe how molecules of butene (C4H8) form poly(butene).
97%
121 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Molecules of butene (C4H8) form poly(butene) through a process called polymerization. During this process, many butene molecules react together, forming long chains or very large molecules, creating a polymer. The double bond in butene opens up, allowing the butene molecules to link together and form a single bond between them.
