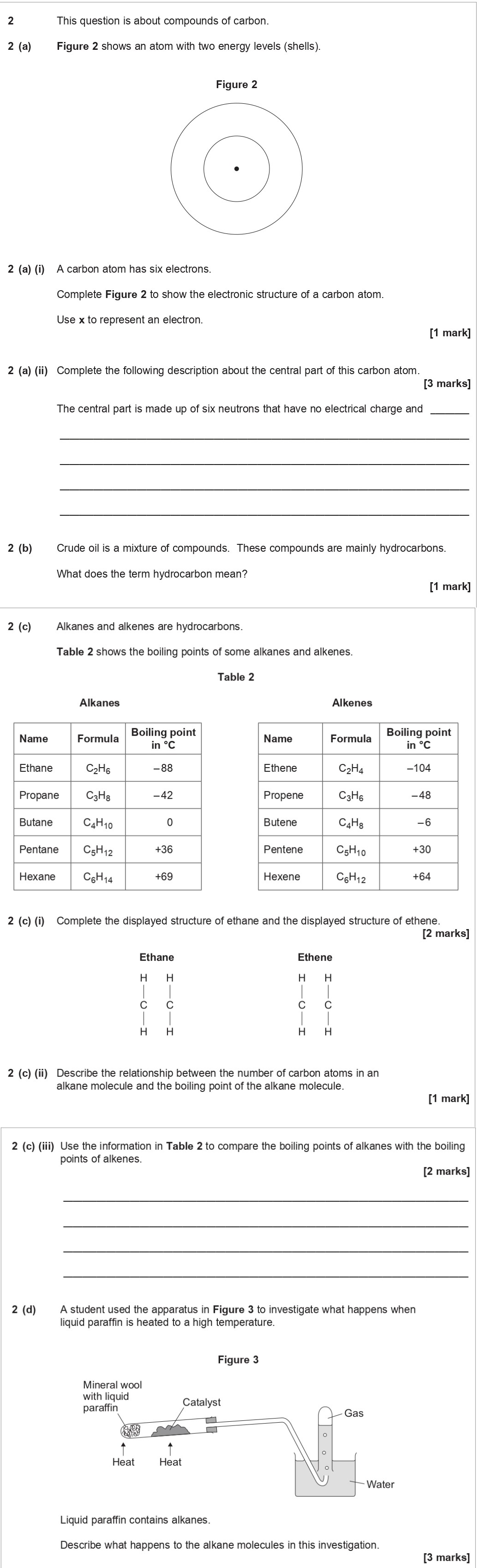

Question 2
This question is about compounds of carbon.
Figure 2 shows an atom with two energy levels (shells).
A carbon atom has six electrons.
Complete Figure 2 to show th... show full transcript
Worked Solution & Example Answer:This question is about compounds of carbon - AQA - GCSE Chemistry - Question 2 - 2017 - Paper 1
Step 1
Complete Figure 2 to show the electronic structure of a carbon atom.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
In Figure 2, the electronic structure of a carbon atom is represented with 6 electrons distributed across its two energy levels. The first energy level will contain 2 electrons, and the second energy level will contain 4 electrons, represented as follows:
x x
x x
Step 2
Complete the following description about the central part of this carbon atom.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The central part of the carbon atom is made up of six neutrons that have no electrical charge and six protons which are positively charged. Thus, it can be described as:
The central part contains six protons, which are positively charged.
Together with neutrons, they form the nucleus of the atom.
The nucleus is responsible for the atom's mass.
Step 3
What does the term hydrocarbon mean?
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
A hydrocarbon is made up of hydrogen and carbon (atoms) only. These molecules can consist solely of carbon and hydrogen atoms arranged in various structural forms.
Step 4
Complete the displayed structure of ethane and the displayed structure of ethene.
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The displayed structure of ethane (C2H6) is:
H H
| |
H–C–C–H
| |
H H
The displayed structure of ethene (C2H4) is:
H H
| |
H–C=C–H
| |
H H
Note that ethene has a double bond between the carbon atoms.
Step 5
Describe the relationship between the number of carbon atoms in an alkane molecule and the boiling point of the alkane molecule.
97%
117 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
As the number of carbon atoms increases in an alkane molecule, the boiling point of the alkane molecule increases. This trend is due to larger alkane molecules exhibiting greater London dispersion forces, which require more energy to overcome.
Step 6
Use the information in Table 2 to compare the boiling points of alkanes with the boiling points of alkenes.
97%
121 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The boiling points of alkanes are generally higher than the boiling points of alkenes that have the same number of carbon atoms. For instance:
Hexane (C6H14) boils at 69°C, while hexene (C6H12) boils at 64°C.
This trend can be attributed to the presence of double bonds in alkenes, which result in weaker intermolecular forces compared to the saturated alkanes.
Step 7
Describe what happens to the alkane molecules in this investigation.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
When liquid paraffin (which contains alkanes) is heated to a high temperature, the alkane molecules undergo cracking. This process breaks down larger alkane molecules into smaller ones, including smaller alkanes and alkenes. This thermal decomposition causes the alkanes to break down into gaseous products, which can lead to the formation of more reactive unsaturated hydrocarbons.
