Question 1

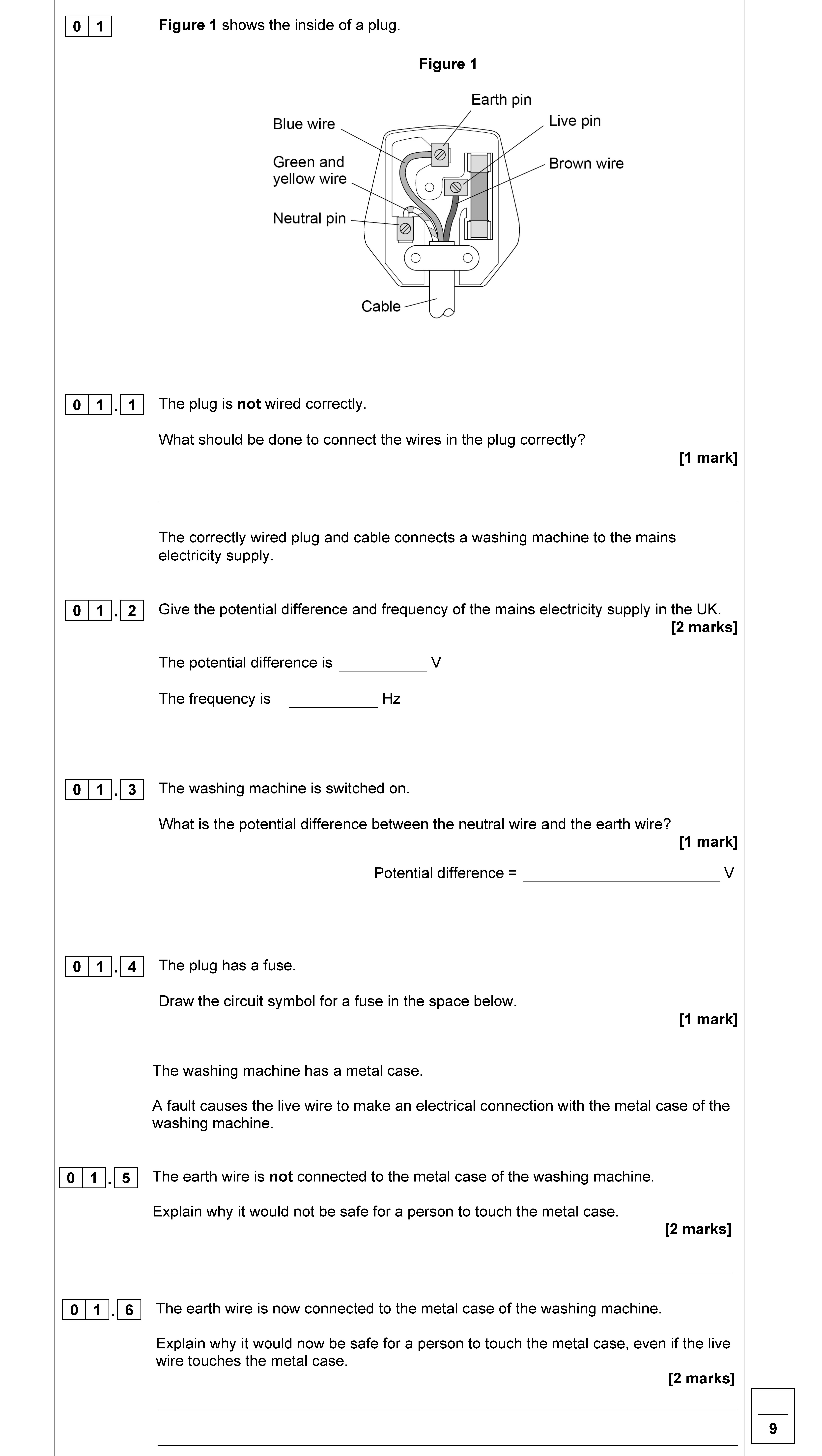

Figure 1 shows the inside of a plug.
The plug is not wired correctly.
What should be done to connect the wires in the plug correctly?
The correctly wired plug and ... show full transcript
Worked Solution & Example Answer:Figure 1 shows the inside of a plug - AQA - GCSE Physics Combined Science - Question 1 - 2020 - Paper 1
Step 1
The plug is not wired correctly.
What should be done to connect the wires in the plug correctly?
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Swap the blue wire and the green and yellow wire. Connect the blue wire to the neutral pin and the green and yellow wire to the earth pin.
Step 2
Give the potential difference and frequency of the mains electricity supply in the UK.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The potential difference is 230 V
The frequency is 50 Hz.
Step 3
What is the potential difference between the neutral wire and the earth wire?
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Potential difference = 0 V.
Step 4
Draw the circuit symbol for a fuse in the space below.
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The circuit symbol for a fuse is a rectangle with a line across the middle.
Step 5
Explain why it would not be safe for a person to touch the metal case.
97%
117 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The person could get an electric shock because there is a current in the person, providing a connection from the washing machine to the earth.
Step 6
Explain why it would now be safe for a person to touch the metal case, even if the live wire touches the metal case.
97%
121 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The charge flows through the earth wire (instead of the person) because the resistance of the earth wire is much less than that of a person, preventing electric shock.
