Scientists are developing a hypersonic aeroplane that will travel much faster than normal aeroplanes - AQA - GCSE Physics Combined Science - Question 6 - 2021 - Paper 2

Question icon

Question 6

Scientists-are-developing-a-hypersonic-aeroplane-that-will-travel-much-faster-than-normal-aeroplanes-AQA-GCSE Physics Combined Science-Question 6-2021-Paper 2.png

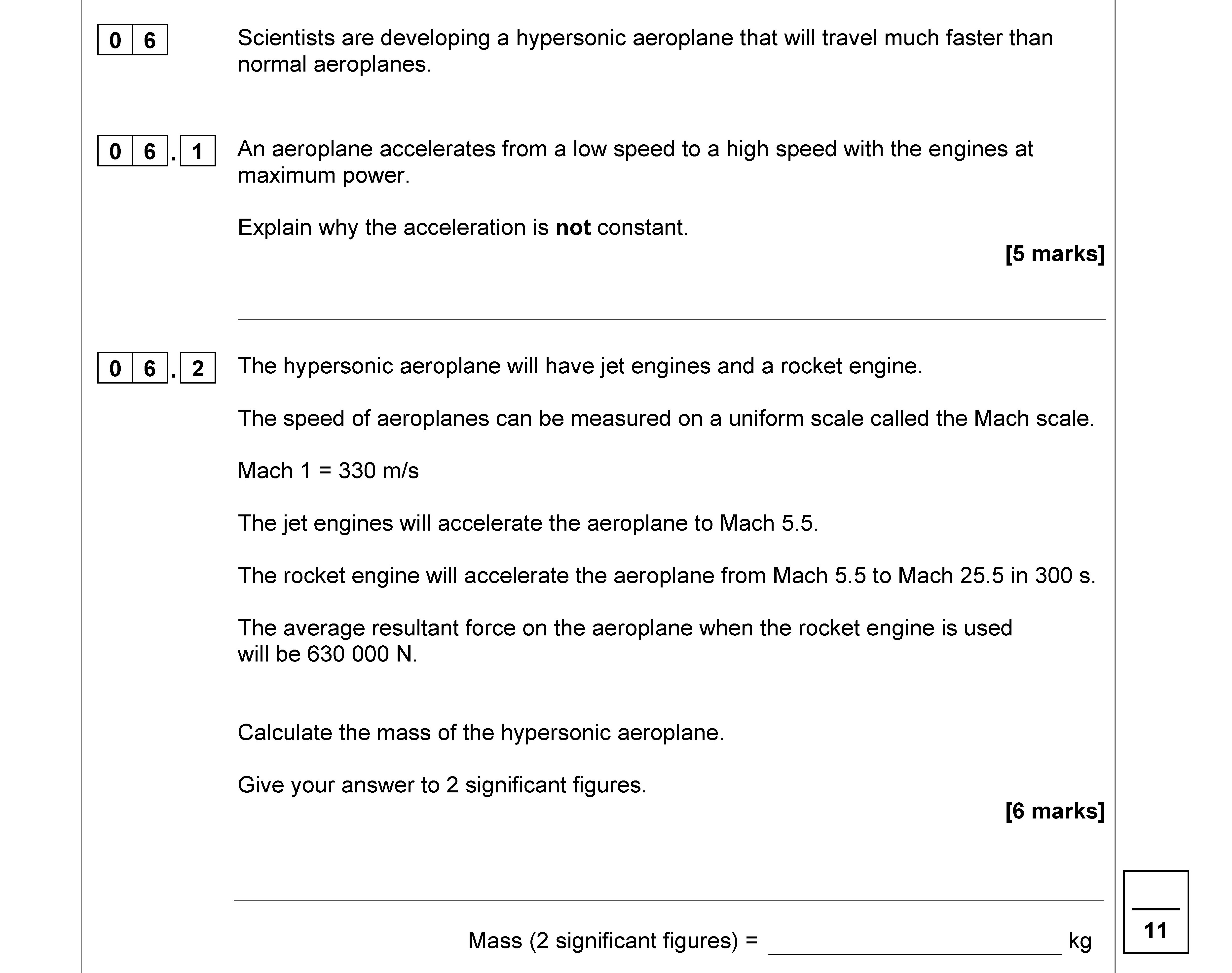

Scientists are developing a hypersonic aeroplane that will travel much faster than normal aeroplanes. An aeroplane accelerates from a low speed to a high speed with... show full transcript

Worked Solution & Example Answer:Scientists are developing a hypersonic aeroplane that will travel much faster than normal aeroplanes - AQA - GCSE Physics Combined Science - Question 6 - 2021 - Paper 2

Step 1

Explain why the acceleration is not constant.

96%

114 rated

Answer

At maximum power, the forward force of the engines is constant. However, as the aeroplane accelerates, the air resistance acting against it increases. This leads to a decrease in the resultant force because the resultant force is the difference between the engine force and the air resistance. Since acceleration is directly proportional to the resultant force according to Newton's second law, as the resultant force decreases, the acceleration will also diminish.

Step 2

Calculate the mass of the hypersonic aeroplane.

99%

104 rated

Answer

First, we determine the change in speed (Δv\Delta v):

Δv=(25.55.5)×330=6600m/s\Delta v = (25.5 - 5.5) \times 330 = 6600 \, \text{m/s}

Next, we calculate the acceleration (aa):

a=(25.5×330)(5.5×330)300=6600300=22m/s2a = \frac{(25.5 \times 330) - (5.5 \times 330)}{300} = \frac{6600}{300} = 22 \, \text{m/s}^2

Using the resultant force (F=630000NF = 630000 \, \text{N}) and calculated acceleration, we find the mass (mm):

F=m×aF = m \times a

Rearranging gives:

m=Fa=6300002228636.36kgm = \frac{F}{a} = \frac{630000}{22} \approx 28636.36 \, \text{kg}

Thus, the mass of the hypersonic aeroplane to 2 significant figures is:

m29000kgm \approx 29000 \, \text{kg}
