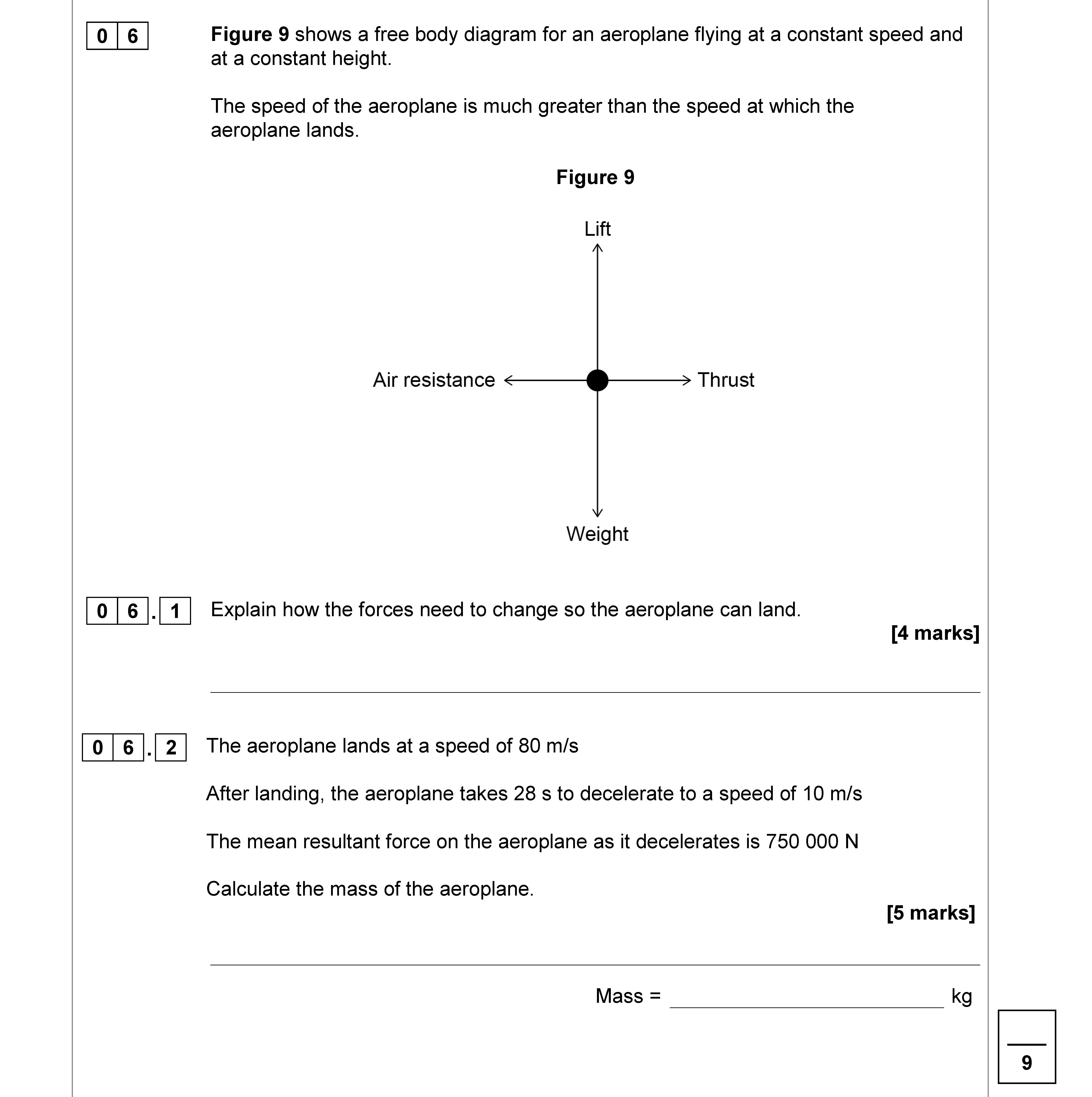

Figure 9 shows a free body diagram for an aeroplane flying at a constant speed and at a constant height. The speed of the aeroplane is much greater than the speed at which the aeroplane lands. 06.1 Explain how the forces need to change so the aeroplane can land. 06.2 The aeroplane lands at a speed of 80 m/s After landing, the aeroplane takes 28 s to decelerate to a speed of 10 m/s The mean resultant force on the aeroplane as it decelerates is 750 000 N Calculate the mass of the aeroplane. Mass = _____ kg

GCSE AQA Physics Combined Science Momentum: Figure 9 shows a free body diagr

Figure 9 shows a free body diagram for an aeroplane flying at a constant speed and at a constant height - AQA - GCSE Physics Combined Science - Question 6 - 2019 - Paper 2

Question 6

Figure-9-shows-a-free-body-diagram-for-an-aeroplane-flying-at-a-constant-speed-and-at-a-constant-height-AQA-GCSE Physics Combined Science-Question 6-2019-Paper 2.png

Figure 9 shows a free body diagram for an aeroplane flying at a constant speed and at a constant height. The speed of the aeroplane is much greater than the speed a... show full transcript

Worked Solution & Example Answer:Figure 9 shows a free body diagram for an aeroplane flying at a constant speed and at a constant height - AQA - GCSE Physics Combined Science - Question 6 - 2019 - Paper 2

Step 1

Explain how the forces need to change so the aeroplane can land.

96%

114 rated

Answer

As the aeroplane approaches landing, the thrust must decrease significantly. This allows for an increase in air resistance or drag, which will counterbalance the thrust. Since the aeroplane is decelerating, the lift must also decrease because it cannot exceed the weight—which remains constant. Therefore, a resultant downward force must be established so that the aircraft can safely descend to the runway.

Step 2

Calculate the mass of the aeroplane.

99%

104 rated

Answer

To find the mass of the aeroplane, we first need to calculate the deceleration:

Initial speed, $u = 80 \, m/s$
Final speed, $v = 10 \, m/s$
Time, $t = 28 \, s$

Using the formula for acceleration:
$a = \frac{v - u}{t} = \frac{10 - 80}{28} = -2.5 \,(m/s^2)$

Next, we apply Newton's second law:
$F = m \cdot a$
Given that the resultant force $F = -750000 \, N$ :
$-750000 = m \cdot (-2.5)$
Rearranging gives:
$m = \frac{-750000}{-2.5} = 300000 \, kg$

Thus, the mass of the aeroplane is:
Mass = 300,000 kg.

Figure 9 shows a free body diagram for an aeroplane flying at a constant speed and at a constant height - AQA - GCSE Physics Combined Science - Question 6 - 2019 - Paper 2

Worked Solution & Example Answer:Figure 9 shows a free body diagram for an aeroplane flying at a constant speed and at a constant height - AQA - GCSE Physics Combined Science - Question 6 - 2019 - Paper 2

Explain how the forces need to change so the aeroplane can land.

Calculate the mass of the aeroplane.
