A square, with sides of length x cm, is inside a circle - Edexcel - GCSE Maths - Question 8 - 2017 - Paper 3

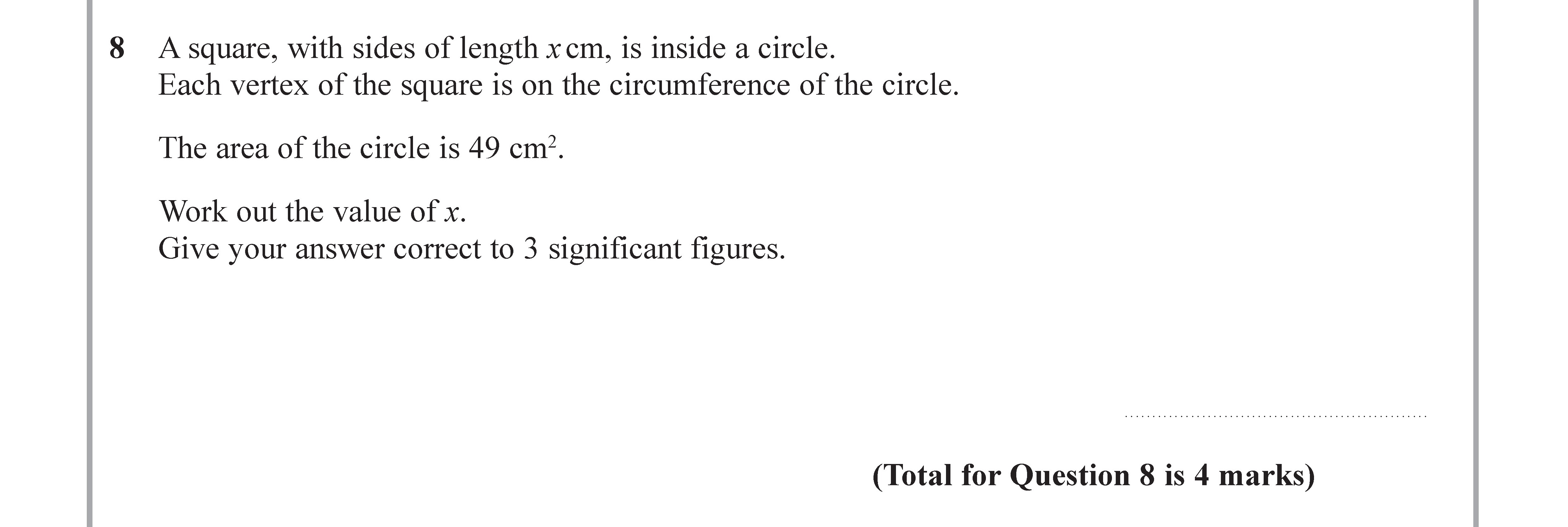

Question 8

A square, with sides of length x cm, is inside a circle. Each vertex of the square is on the circumference of the circle. The area of the circle is 49 cm². Work ou... show full transcript

Worked Solution & Example Answer:A square, with sides of length x cm, is inside a circle - Edexcel - GCSE Maths - Question 8 - 2017 - Paper 3

Step 1

The area of the circle is 49 cm²

96%

114 rated

Answer

First, we can determine the radius of the circle. The area of a circle is given by the formula:

$A = heta^2$

where ( r ) is the radius. Given that the area is 49 cm², we can solve for ( r ):

$49 = \pi r^2$

Rearranging this gives:

$r^2 = \frac{49}{\pi}$

Calculating ( r ):

$r = \sqrt{\frac{49}{\pi}}$

Calculating this yields:

First compute ( \pi \approx 3.14 )
So, ( r^2 \approx \frac{49}{3.14} \approx 15.6 )
Thus, ( r \approx \sqrt{15.6} \approx 3.95 ) cm.

Step 2

Find x using the relationship with the square

99%

104 rated

Answer

Each vertex of the square touches the circle. Therefore, the diameter of the circle is equal to the diagonal of the square. Using the relationship for the diagonal ( d ) of a square of side length ( x ):

$d = x\sqrt{2}$

The diameter of the circle is also:

$d = 2r = 2 \times 3.95 \approx 7.90 \text{ cm}$

Setting the two expressions for the diameter equal to each other gives:

$x\sqrt{2} = 7.90$

To find x, rearranging gives:

$x = \frac{7.90}{\sqrt{2}}$

Calculating ( x ):

First, compute ( \sqrt{2} \approx 1.414 )
So, ( x \approx \frac{7.90}{1.414} \approx 5.57 \text{ cm}$$.

Step 3

Give your answer correct to 3 significant figures

96%

101 rated

Answer

Finally, rounding 5.57 to three significant figures, we find:

$x \approx 5.57 ext{ cm}$ .
