Here are six graphs - Edexcel - GCSE Maths - Question 8 - 2019 - Paper 2
Question 8

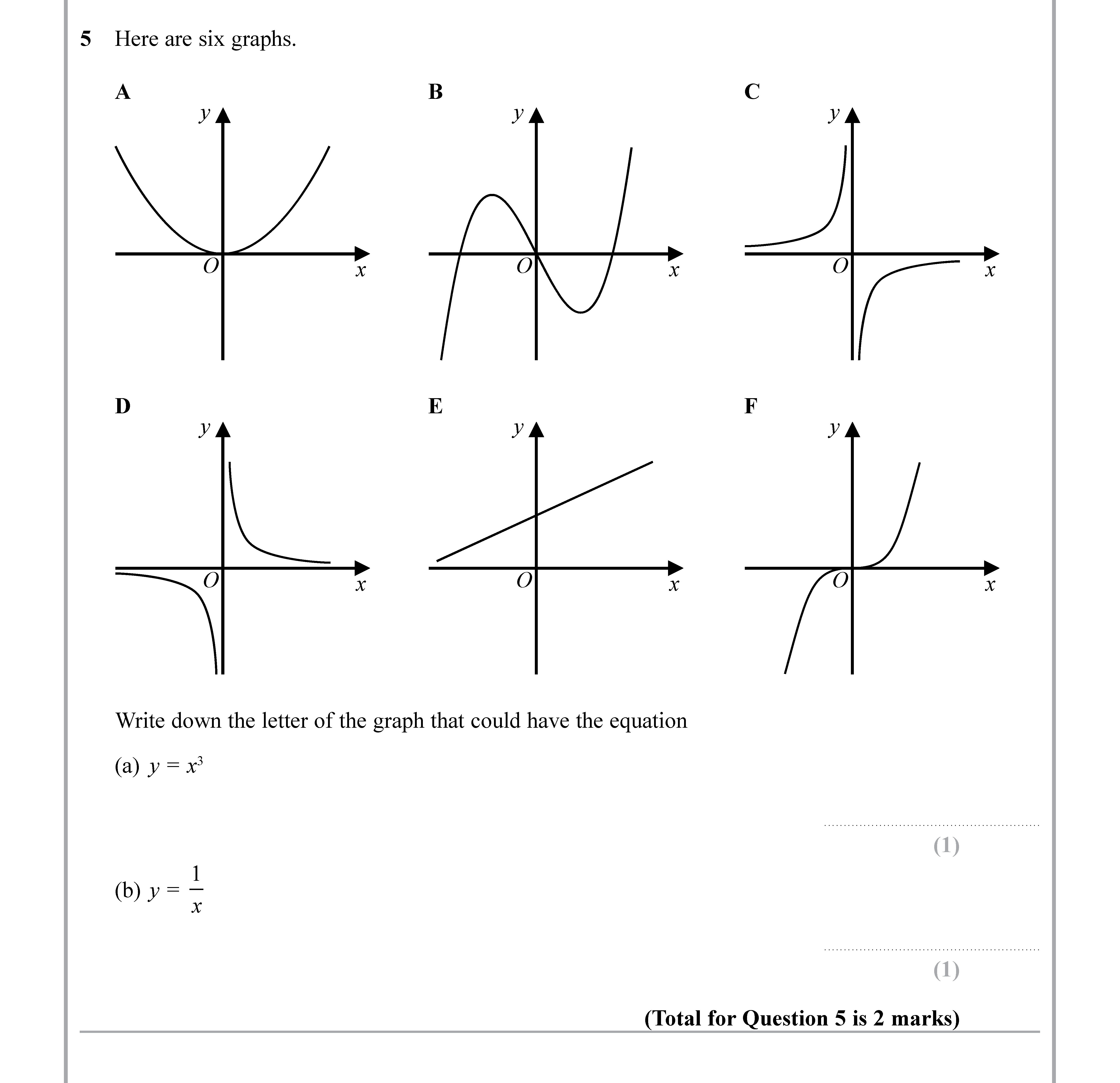

Here are six graphs.
A B C D E F
Write down the letter of the graph that could have the equation
(a) y = x^3
(b) y = \frac{1}{x}
Worked Solution & Example Answer:Here are six graphs - Edexcel - GCSE Maths - Question 8 - 2019 - Paper 2
Step 1
(a) y = x^3
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The graph that represents the equation y=x3 is graph F. This is a cubic function that passes through the origin and has the characteristic shape of an odd degree polynomial.
Step 2
(b) y = \frac{1}{x}
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The graph that corresponds to the equation y=x1 is graph D. This represents a hyperbola with vertical and horizontal asymptotes, depicting the relationship where y approaches infinity as x approaches zero from either side.
