The diagram shows a solid metal cuboid - Edexcel - GCSE Maths - Question 9 - 2018 - Paper 3

Question icon

Question 9

The-diagram-shows-a-solid-metal-cuboid-Edexcel-GCSE Maths-Question 9-2018-Paper 3.png

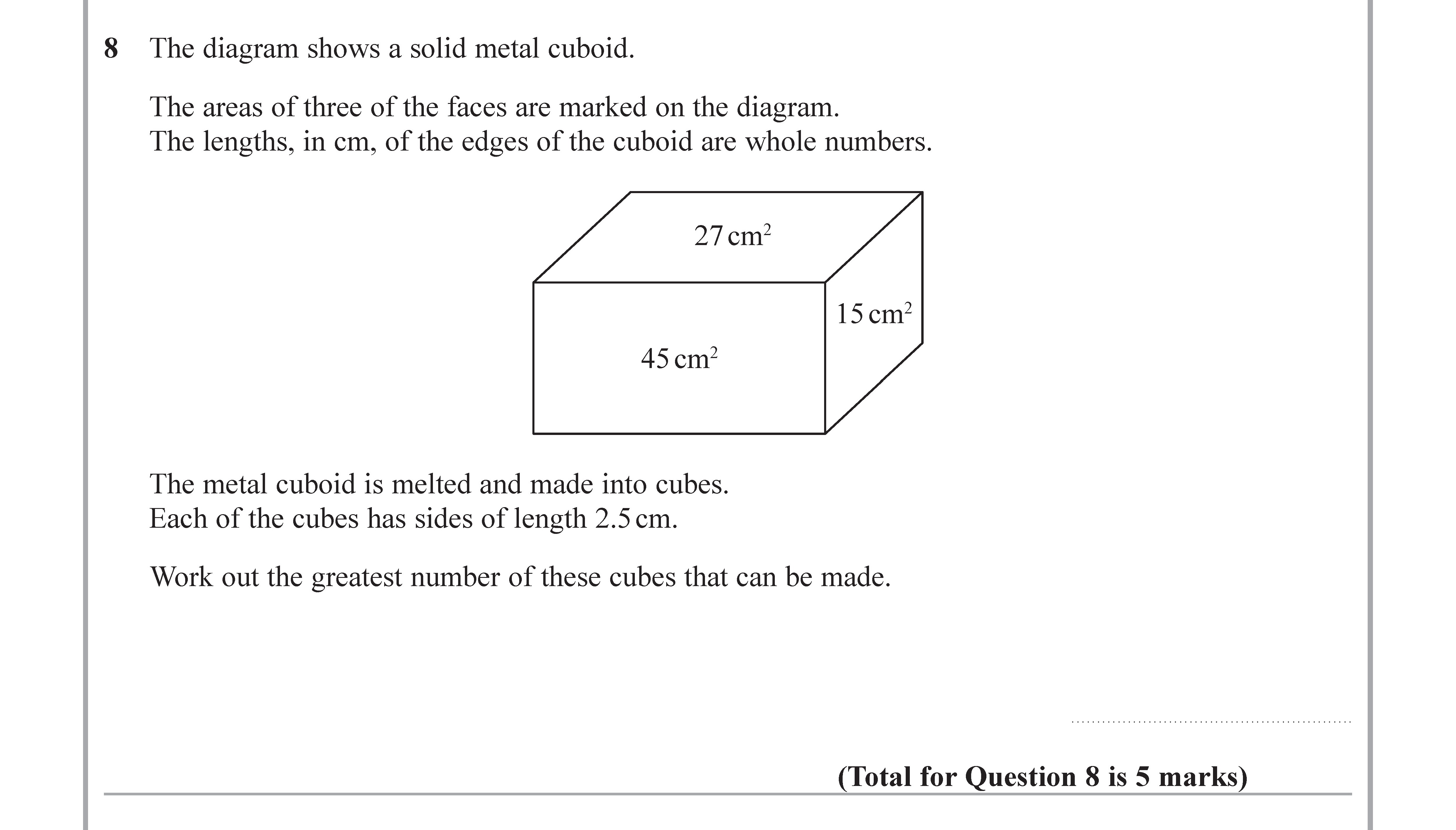

The diagram shows a solid metal cuboid. The areas of three of the faces are marked on the diagram. The lengths, in cm, of the edges of the cuboid are whole numbers.... show full transcript

Worked Solution & Example Answer:The diagram shows a solid metal cuboid - Edexcel - GCSE Maths - Question 9 - 2018 - Paper 3

Step 1

Calculate the dimensions of the cuboid

96%

114 rated

Answer

Given the areas of the faces:

  • Face with area 27 cm²: If length is x cm and width is y cm, then:

    x×y=27x \times y = 27

  • Face with area 45 cm²: If dimensions are y cm and height is z cm, then:

    y×z=45y \times z = 45

  • Face with area 15 cm²: If dimensions are x cm and height is z cm, then:

    x×z=15x \times z = 15

Now we can substitute and find the values of x, y, and z.

Step 2

Define dimensions through equations

99%

104 rated

Answer

From the equations, we can express:

  1. From the first equation, we express y: y=27xy = \frac{27}{x}
  2. Substituting this into the second equation: 27x×z=45z=45x27z=5x3\frac{27}{x} \times z = 45 \Rightarrow z = \frac{45x}{27} \Rightarrow z = \frac{5x}{3}
  3. Substitute y into the third equation: x×5x3=155x23=155x2=45x2=9x=3x \times \frac{5x}{3} = 15 \Rightarrow \frac{5x^2}{3} = 15 \Rightarrow 5x^2 = 45 \Rightarrow x^2 = 9 \Rightarrow x = 3

This gives us x = 3 cm.

Step 3

Calculate y and z using found x

96%

101 rated

Answer

Now substituting x back to get y and z:

  1. Calculate y: y=273=9 cmy = \frac{27}{3} = 9 \text{ cm}
  2. Calculate z: z=5×33=5 cmz = \frac{5 \times 3}{3} = 5 \text{ cm}

Thus, the dimensions of the cuboid are 3 cm, 9 cm, and 5 cm.

Step 4

Calculate the volume of the cuboid

98%

120 rated

Answer

The volume V of the cuboid is given by: V=x×y×z=3×9×5=135 cm3V = x \times y \times z = 3 \times 9 \times 5 = 135 \text{ cm}^3

Step 5

Calculate the number of cubes that can be made

97%

117 rated

Answer

Now, each cube has a side length of 2.5 cm. Thus, the volume of each cube is: Vcube=(2.5)3=15.625 cm3V_{cube} = (2.5)^3 = 15.625 \text{ cm}^3

To find the greatest number of cubes possible, divide the cuboid volume by the cube volume: Number of cubes=13515.6258.64\text{Number of cubes} = \frac{135}{15.625} \approx 8.64

Since we cannot have a fraction of a cube, the maximum number of cubes is 8.
