The diagram shows the graph of $x^2 + y^2 = 30.25$ - Edexcel - GCSE Maths - Question 21 - 2021 - Paper 1
Question 21

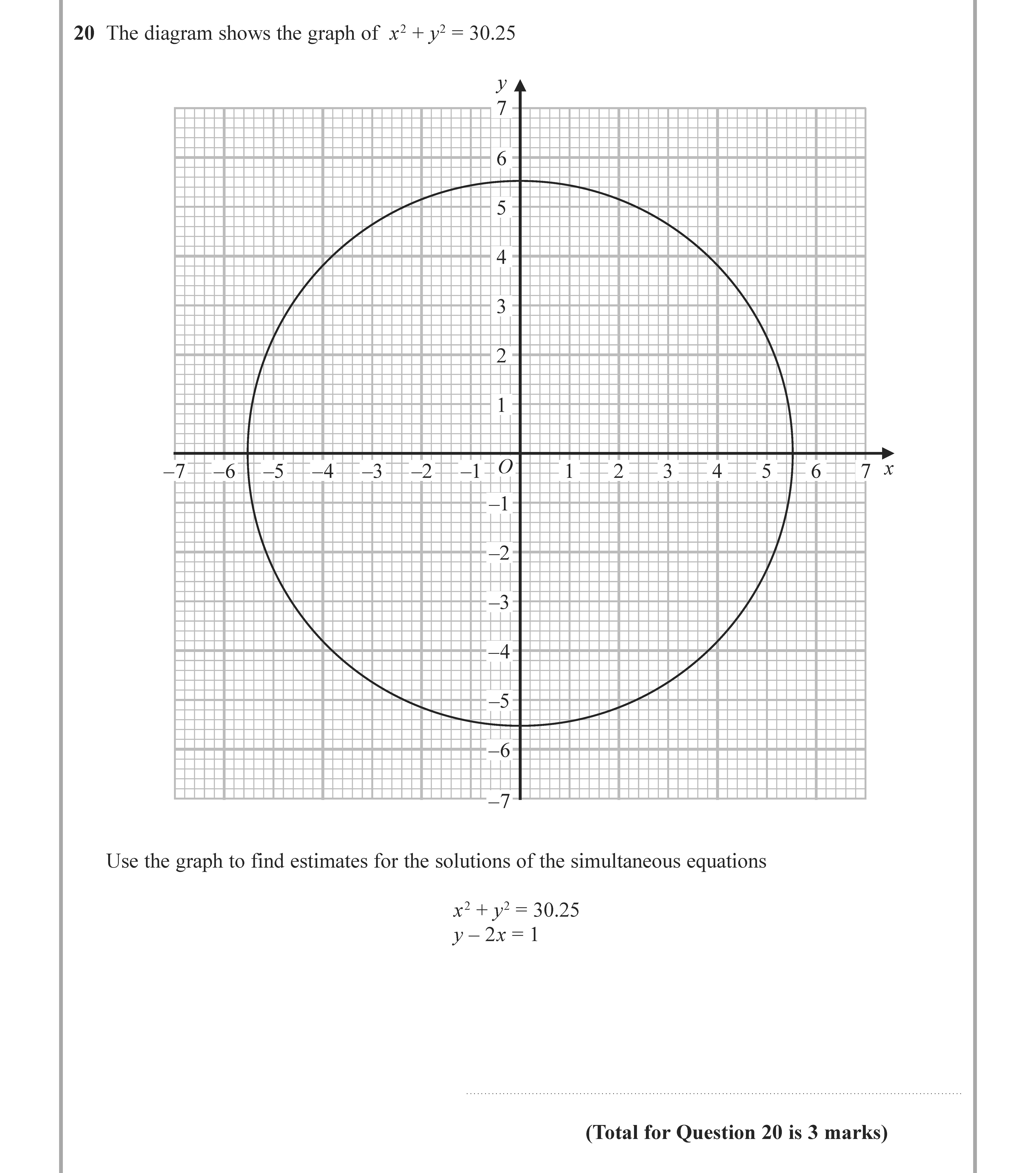

The diagram shows the graph of $x^2 + y^2 = 30.25$.
Use the graph to find estimates for the solutions of the simultaneous equations
$x^2 + y^2 = 30.25$
y - 2x = 1
Worked Solution & Example Answer:The diagram shows the graph of $x^2 + y^2 = 30.25$ - Edexcel - GCSE Maths - Question 21 - 2021 - Paper 1
Step 1
Plot the graph of $y - 2x = 1$
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
First, rearrange the equation to find the points:
y=2x+1
This is a linear equation with a slope of 2. You can find points by setting values for x:
For x=0, y=1.
For x=1, y=3.
Plot these points on the graph.
Step 2
Find intersection points with the circle
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Look for where the line intersects the circle defined by x2+y2=30.25.
When plotting, estimate the intersection points to the nearest coordinates:
One intersection at approximately (5,6).
Another intersection at approximately (−6,−5).
These points represent the estimated solutions to the simultaneous equations.
