On the grid, shade the region that satisfies all these inequalities - Edexcel - GCSE Maths - Question 14 - 2017 - Paper 2
Question 14

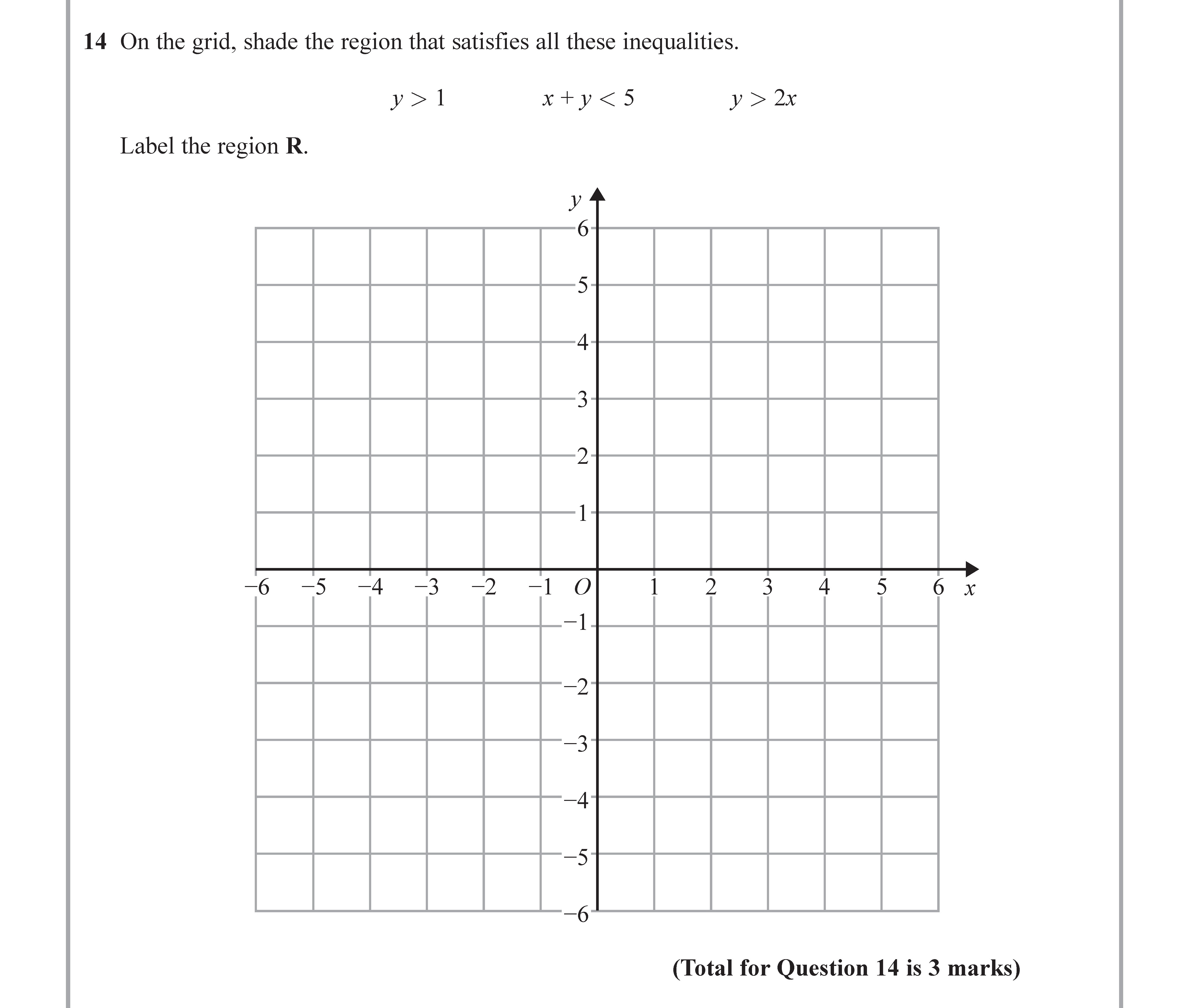

On the grid, shade the region that satisfies all these inequalities.
$y > 1$
$x + y < 5$
$y > 2x$
Label the region R.
Worked Solution & Example Answer:On the grid, shade the region that satisfies all these inequalities - Edexcel - GCSE Maths - Question 14 - 2017 - Paper 2
Step 1
$y > 1$
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
To graph this inequality, draw a horizontal line at y=1. This line is dashed because the inequality does not include the line itself (indicating that y can be greater than 1 but not equal to it). The shaded region is above this line.
Step 2
$x + y < 5$
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Rearranging the equation gives us y<−x+5. To graph, draw a dashed line for y=−x+5. The shaded region will be below this line.
Step 3
$y > 2x$
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
This inequality can be rewritten as y=2x. Plot this line, which is also dashed because y does not include the line itself. The shaded area is above this line.
Step 4
Label the region R
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The intersection of the shaded areas from all the inequalities defines the region labeled R. Shade this overlapping area distinctly to indicate the solution set.
