A, B and C are points on a circle of radius 5 cm, centre O - Edexcel - GCSE Maths - Question 18 - 2017 - Paper 3
Question 18

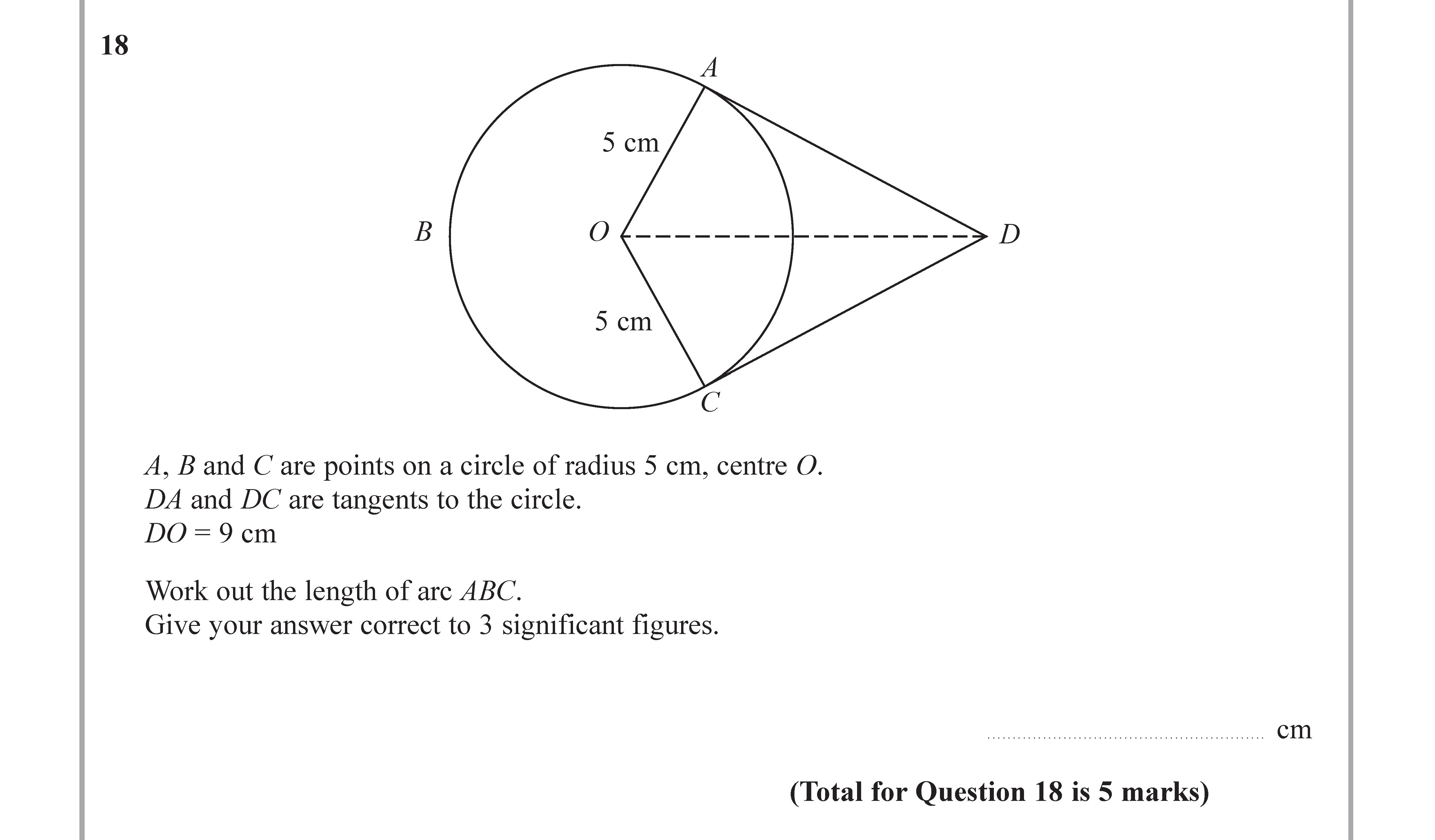

A, B and C are points on a circle of radius 5 cm, centre O.
DA and DC are tangents to the circle.
DO = 9 cm
Work out the length of arc ABC.
Give your answer correct... show full transcript
Worked Solution & Example Answer:A, B and C are points on a circle of radius 5 cm, centre O - Edexcel - GCSE Maths - Question 18 - 2017 - Paper 3
Step 1
Recognizing that ∠DAB or ∠DCB is 90° or right angle
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Since DA and DC are tangents to the circle from point D, we know that the angles ∠DAB and ∠DCB are right angles (90°).
Step 2
Using trigonometry to set up an equation in triangle ODA
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
In triangle ODA, we can use the cosine function to find the length of OD:
extcos(heta)=ODOA
where OA is the radius (5 cm) and OD is given as 9 cm. Hence,
cos(heta)=95.
Step 3
Calculating angle ∠AOD
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Using the inverse cosine function, we find
θ=cos−1(95)≈0.6435 radians.
Step 4
Finding the length of arc ABC
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The length of arc ABC can be calculated using the formula:
Length of arc=r×θ
where r is the radius (5 cm). Thus,
Length of arc=5×0.6435≈3.2175 cm.
Step 5
Final Answer
97%
117 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Rounding to three significant figures, the length of arc ABC is approximately 3.22 cm.
