A, B and C are points on the circumference of a circle, centre O - Edexcel - GCSE Maths - Question 20 - 2017 - Paper 3
Question 20

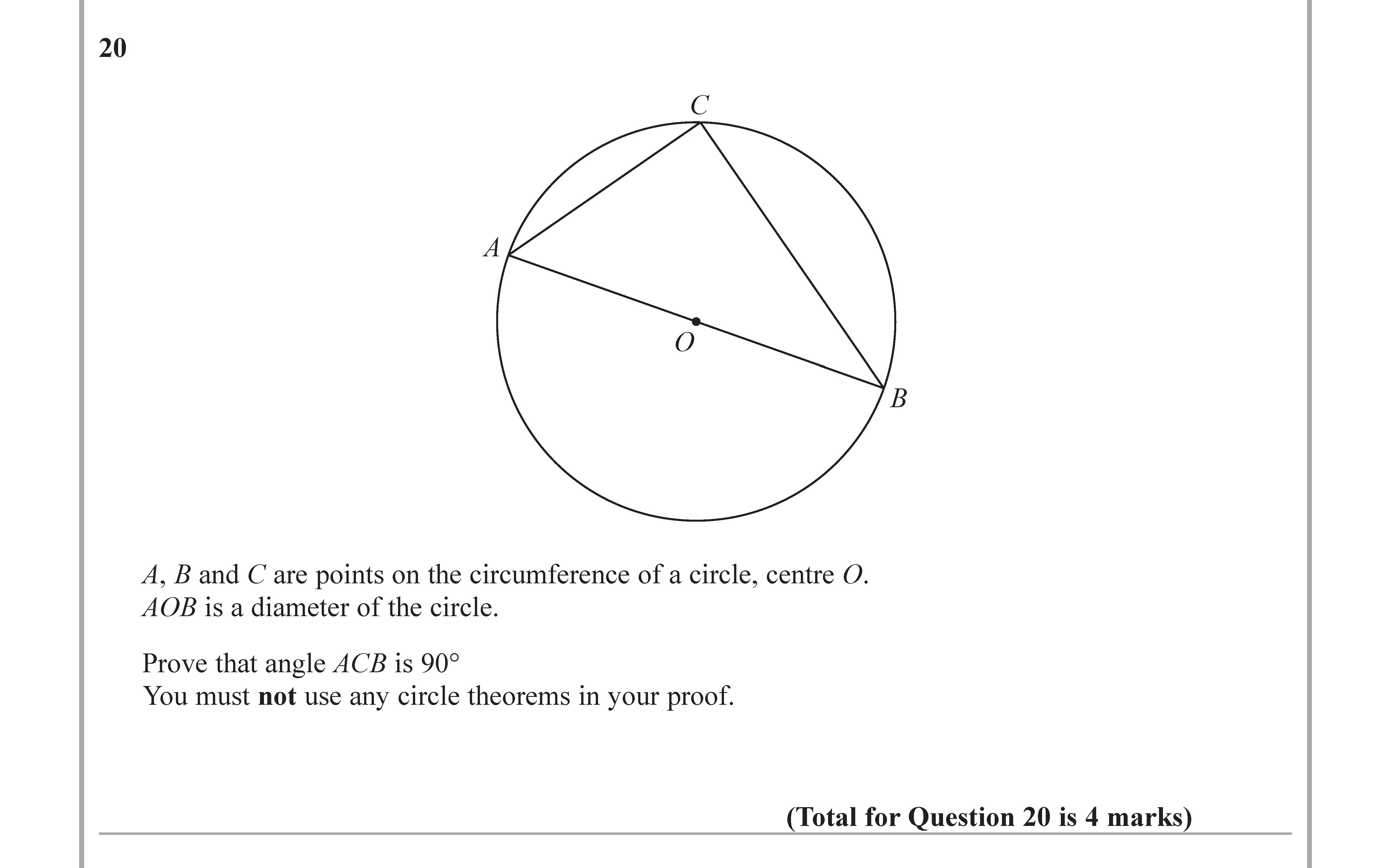

A, B and C are points on the circumference of a circle, centre O. AOB is a diameter of the circle.
Prove that angle ACB is 90°.
You must not use any circle theorem... show full transcript
Worked Solution & Example Answer:A, B and C are points on the circumference of a circle, centre O - Edexcel - GCSE Maths - Question 20 - 2017 - Paper 3
Step 1
Draw triangle ABC and identify relevant angles
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Begin by drawing triangle ABC with points A, B, and C on the circumference of the circle, and the center O. Note that AOB is a straight line, meaning that the angle AOB is 180°. Since O is the center of the circle, OA = OB (both are radii of the circle).
Step 2
Find the sum of angles in triangle ABC
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
In triangle ABC, the sum of the interior angles can be expressed as:
A+B+C=180°
Here, let angle ACB = C, angle CAB = A, and angle ABC = B. By substituting angle AOB into this equation, we get:
\Rightarrow C + (180° - C) = 180°$$
Step 3
Rearrangement and conclusion
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Rearranging the earlier expression leads to:
\Rightarrow C = 90°$$
Thus, we conclude that angle ACB measures 90°, proving that it is a right angle.
