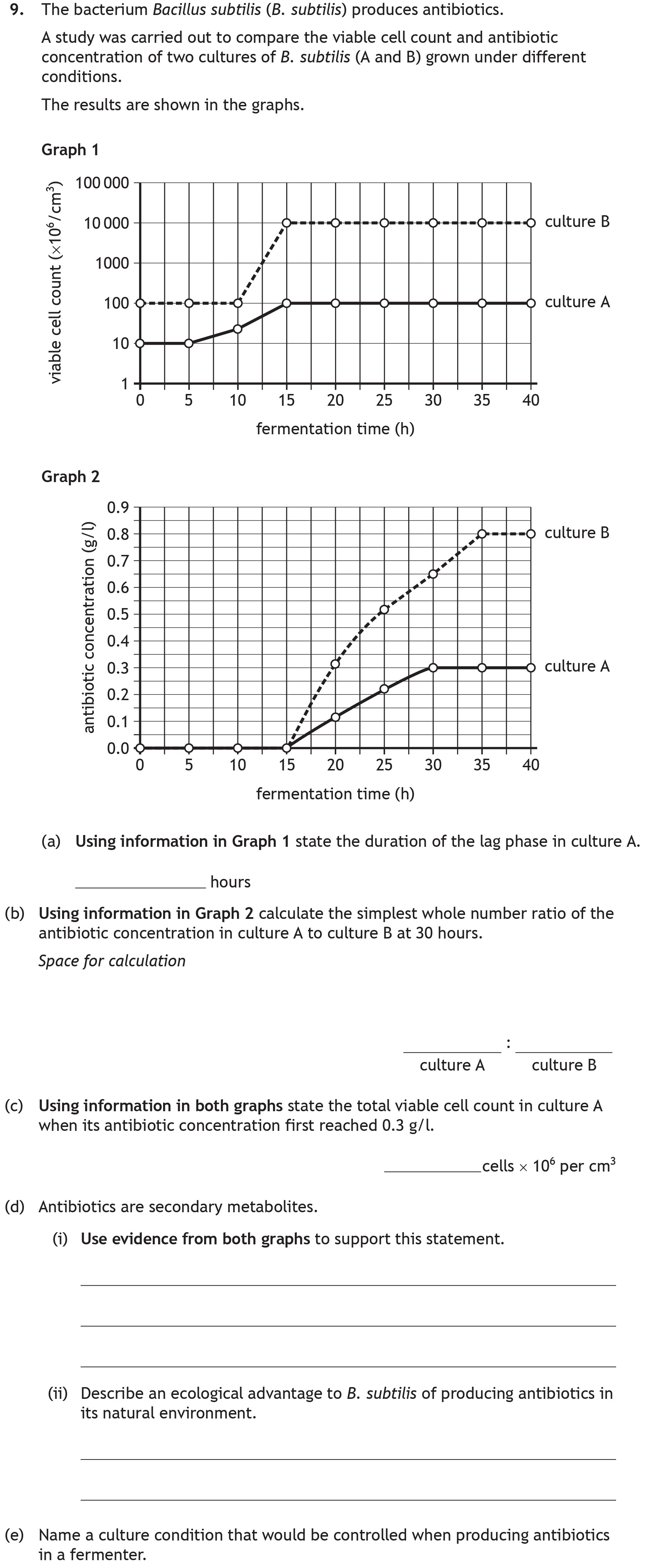

The bacterium Bacillus subtilis (B. subtilis) produces antibiotics.
A study was carried out to compare the viable cell count and antibiotic concentration of two cul... show full transcript
Worked Solution & Example Answer:The bacterium Bacillus subtilis (B - Scottish Highers Biology - Question 9 - 2022
Step 1
Using information in Graph 1 state the duration of the lag phase in culture A.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The lag phase in culture A lasts for 5 hours.
Step 2
Using information in Graph 2 calculate the simplest whole number ratio of the antibiotic concentration in culture A to culture B at 30 hours.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
At 30 hours, the antibiotic concentration in culture A is approximately 0.6 g/l and in culture B is approximately 0.1 g/l. The simplest whole number ratio is 6:1.
Step 3
Using information in both graphs state the total viable cell count in culture A when its antibiotic concentration first reached 0.3 g/l.
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The total viable cell count in culture A when its antibiotic concentration first reached 0.3 g/l is 100 cells x 10^6 per cm^3.
Step 4
Use evidence from both graphs to support this statement.
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Antibiotic production begins in the stationary phase, which can be seen in Graph 2 where the antibiotic concentration increases significantly as the viable cell count stabilizes in Graph 1.
Step 5
Describe an ecological advantage to B. subtilis of producing antibiotics in its natural environment.
97%
117 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Producing antibiotics allows B. subtilis to compete effectively for resources by reducing competition for nutrients and other raw materials in its environment.
Step 6
Name a culture condition that would be controlled when producing antibiotics in a fermenter.
97%
121 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Oxygen, pH, temperature, or sterility.
