Ethane-1,2-diol can be made from ethene - Scottish Highers Chemistry - Question 9 - 2018
Question 9
Ethane-1,2-diol can be made from ethene.

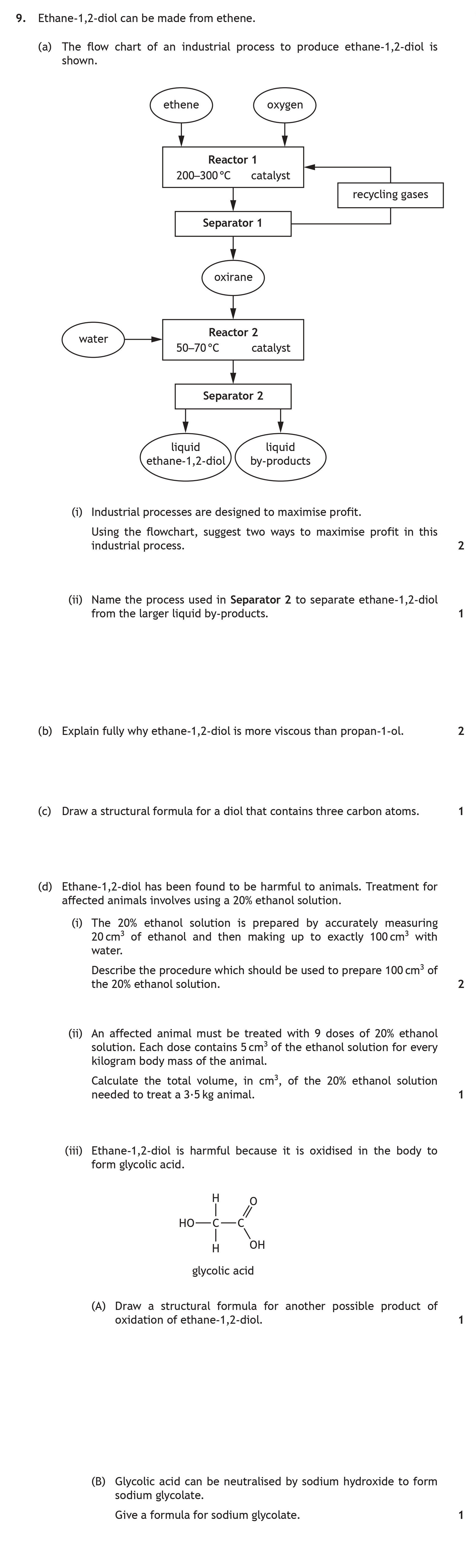

(a) The flow chart of an industrial process to produce ethane-1,2-diol is shown.
(i) Industrial processes are designed to ... show full transcript
Worked Solution & Example Answer:Ethane-1,2-diol can be made from ethene - Scottish Highers Chemistry - Question 9 - 2018
Step 1
Using the flowchart, suggest two ways to maximise profit in this industrial process.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Recycle (waste) gases to minimize the cost and maximize the reactants' efficiency.
Use a catalyst to increase the reaction rate and reduce energy requirements, thereby lowering operational costs.
Step 2
Name the process used in Separator 2 to separate ethane-1,2-diol from the larger liquid by-products.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Fractional distillation.
Step 3
Explain fully why ethane-1,2-diol is more viscous than propan-1-ol.
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Ethane-1,2-diol has two hydroxyl (-OH) groups compared to the one hydroxyl group in propan-1-ol. The presence of more -OH groups allows for stronger hydrogen bonding between ethane-1,2-diol molecules, resulting in higher viscosity due to the increased interaction and resistance to flow.
Step 4
Draw a structural formula for a diol that contains three carbon atoms.
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The structural formula for a diol with three carbon atoms can be represented as follows:
HO-CH2-CH(OH)-CH3
This structure shows two hydroxyl groups attached to a three-carbon backbone.
Step 5
Describe the procedure which should be used to prepare 100 cm³ of the 20% ethanol solution.
97%
117 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Use a pipette to measure exactly 20 cm³ of ethanol.
Transfer the measured ethanol into a 100 cm³ volumetric flask.
Add distilled water gradually until the total volume of the solution reaches 100 cm³. Ensure the bottom of the meniscus is at the mark for accuracy.
Step 6
Calculate the total volume, in cm³, of the 20% ethanol solution needed to treat a 3-5 kg animal.
97%
121 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
To treat a 3-5 kg animal with a dosage of 5 cm³ per kg, the total volume needed would be:
For 3 kg:
3 kg × 5 cm³/kg = 15 cm³
For 5 kg:
5 kg × 5 cm³/kg = 25 cm³
Thus, the total volume required is between 15 cm³ and 25 cm³.
Step 7
Draw a structural formula for another possible product of oxidation of ethane-1,2-diol.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
One possible product of oxidation is glycolic acid, represented as:
HO-CH2-COOH
This structure features a hydroxyl group and a carboxylic acid group.
Step 8
Give a formula for sodium glycolate.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The formula for sodium glycolate is NaC2H3O3.
