Ethane-1,2-diol can be made from ethene - Scottish Highers Chemistry - Question 9 - 2018
Question 9
Ethane-1,2-diol can be made from ethene.

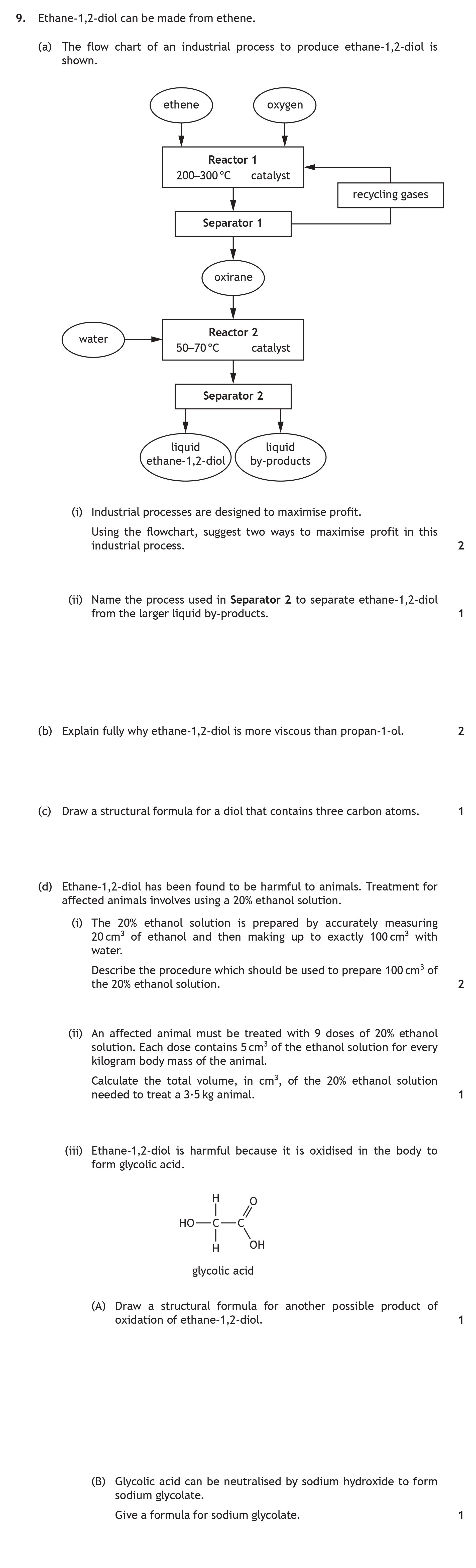

(a) The flow chart of an industrial process to produce ethane-1,2-diol is shown.
(i) Industrial processes are designed to ... show full transcript
Worked Solution & Example Answer:Ethane-1,2-diol can be made from ethene - Scottish Highers Chemistry - Question 9 - 2018
Step 1
Using the flowchart, suggest two ways to maximise profit in this industrial process.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Recycle (or recover) waste gases to minimize raw material costs.
Use a catalyst to increase the reaction rate, thereby reducing time and costs.
Step 2
Name the process used in Separator 2 to separate ethane-1,2-diol from the larger liquid by-products.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Fractional distillation.
Step 3
Explain fully why ethane-1,2-diol is more viscous than propan-1-ol.
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Ethane-1,2-diol contains two hydroxyl (-OH) groups, which lead to a greater capacity for hydrogen bonding compared to propan-1-ol, which has only one hydroxyl group. The stronger intermolecular forces increase the viscosity of ethane-1,2-diol, making it thicker and harder to flow than propan-1-ol.
Step 4
Draw a structural formula for a diol that contains three carbon atoms.
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
A possible structure is:
H H H
| | |
H-C - C - C - OH
| | |
OH OH H
This represents propane-1,2-diol.
Step 5
Describe the procedure which should be used to prepare 100 cm³ of the 20% ethanol solution.
97%
117 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Use a pipette to measure exactly 20 cm³ of ethanol.
Transfer the ethanol into a 100 cm³ volumetric flask.
Add distilled water to the flask until the total volume reaches 100 cm³.
Stopper the flask and invert several times to mix the solution thoroughly.
Step 6
Calculate the total volume, in cm³, of the 20% ethanol solution needed to treat a 3-5 kg animal.
97%
121 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
For a 3-5 kg animal:
Total volume = weight (kg) × 5 cm³ = 3 kg × 5 cm³ = 15 cm³ to 5 kg × 5 cm³ = 25 cm³.
Therefore, the total volume required ranges from 15 cm³ to 25 cm³.
Step 7
Draw a structural formula for another possible product of oxidation of ethane-1,2-diol.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
A possible product is:
H O H
| || |
H-C - C - C - OH
| | |
H H H
This represents propane-1,2-dione.
Step 8
Give a formula for sodium glycolate.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The formula for sodium glycocate is:
NaC₂H₃O₃.
