Complete the missing steps of the fetch-execute cycle - Scottish Highers Computing Science - Question 5 - 2023
Question 5

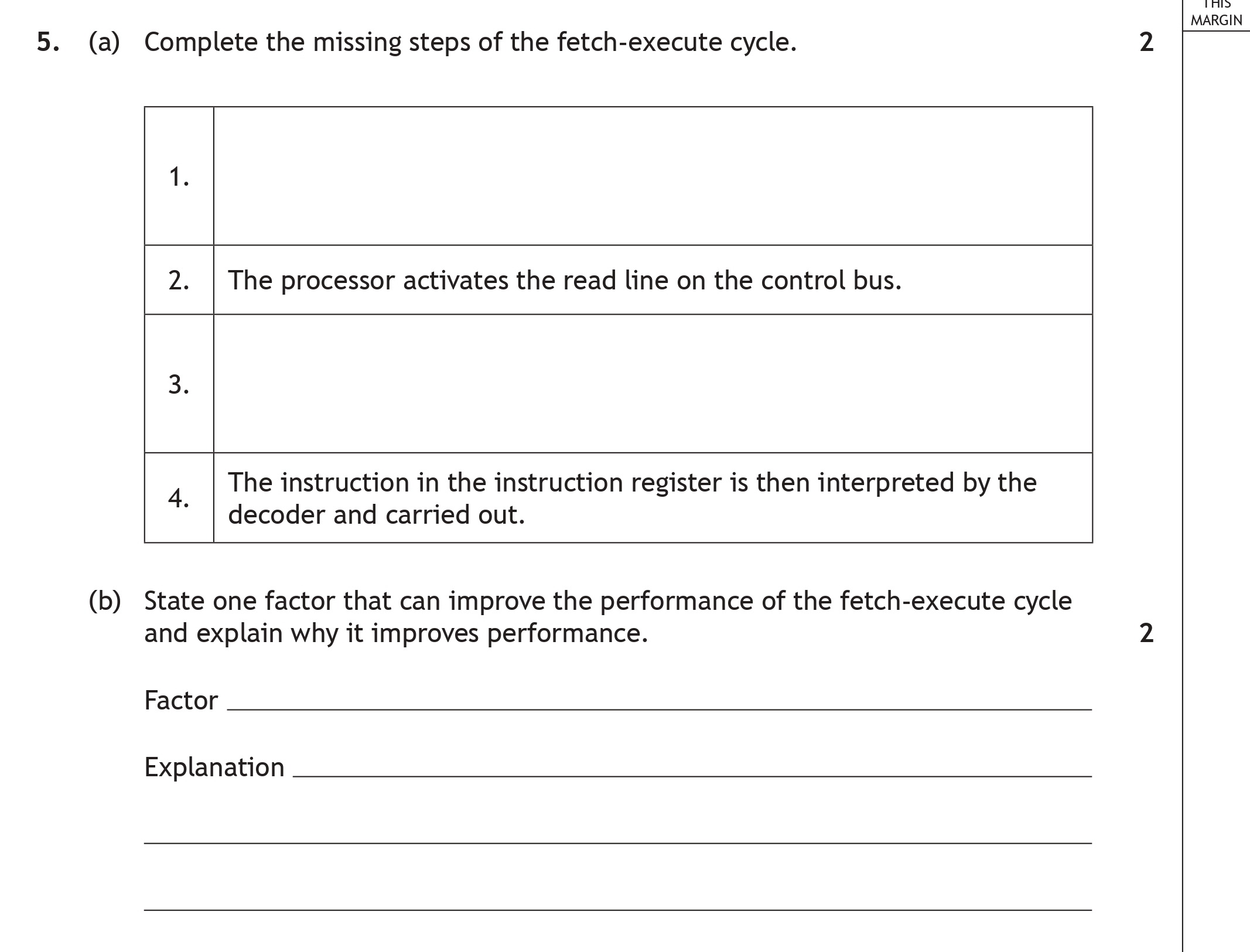

Complete the missing steps of the fetch-execute cycle.
1.
2. The processor activates the read line on the control bus.
3.
4. The instruction in the instruction r... show full transcript
Worked Solution & Example Answer:Complete the missing steps of the fetch-execute cycle - Scottish Highers Computing Science - Question 5 - 2023
Step 1
1. The address bus is set up with the address (by the processor).
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
This step indicates that the processor is preparing to fetch data by establishing the correct address from which to retrieve the instruction.
Step 2
3. The instruction is transferred on the data bus from memory to processor.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
At this stage, the instruction is fetched from the memory and transferred to the processor through the data bus.
Step 3
Factor
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Clock speed
Step 4
Explanation
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Increasing the clock speed allows the processor to execute more instructions per second, thereby enhancing the overall performance of the fetch-execute cycle.
