4. A student carried out an investigation into the effect of physical activity on respiration rate - Scottish Highers Human Biology - Question 4 - 2016
Question 4

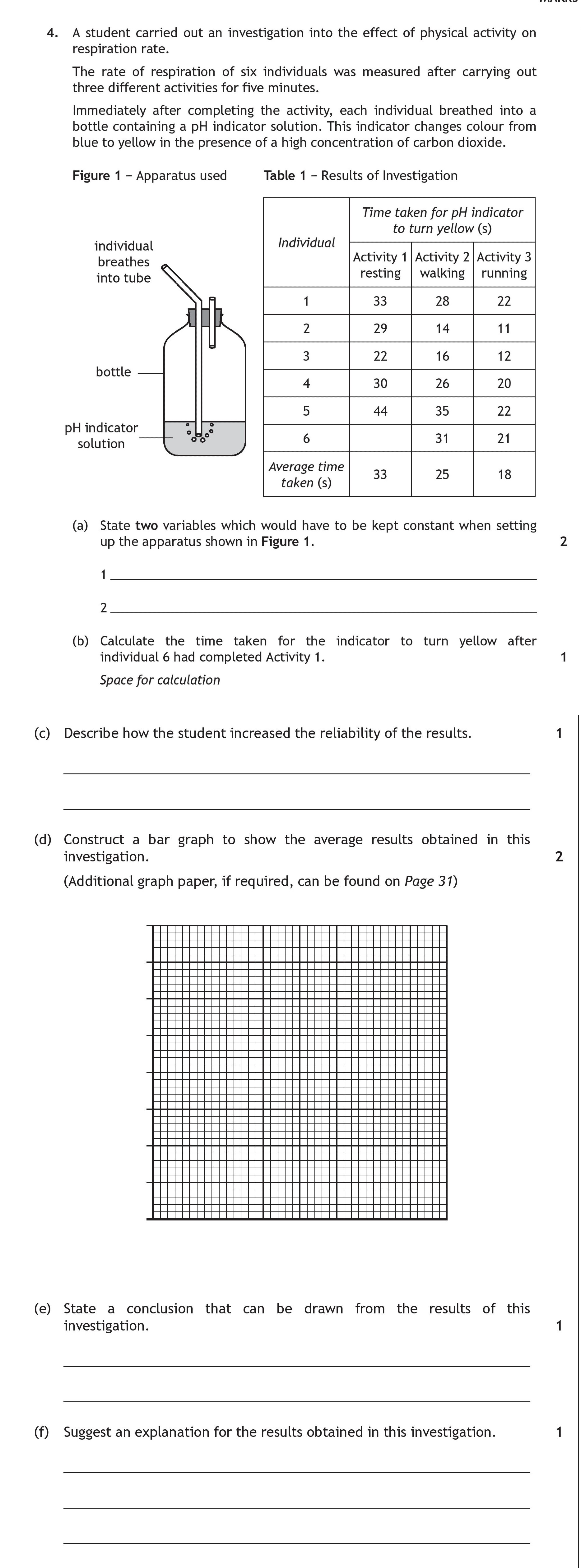

4. A student carried out an investigation into the effect of physical activity on respiration rate.
The rate of respiration of six individuals was measured after car... show full transcript
Worked Solution & Example Answer:4. A student carried out an investigation into the effect of physical activity on respiration rate - Scottish Highers Human Biology - Question 4 - 2016
Step 1
State two variables which would have to be kept constant when setting up the apparatus shown in Figure 1.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Temperature of the bottle and solution.
Volume of the pH indicator solution.
Step 2
Calculate the time taken for the indicator to turn yellow after individual 6 had completed Activity 1.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The time taken for the indicator to turn yellow after individual 6 completed Activity 1 is recorded as 31 seconds.
Step 3
Describe how the student increased the reliability of the results.
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The student increased the reliability of the results by repeating the investigation with several individuals and taking an average for each activity.
Step 4
Construct a bar graph to show the average results obtained in this investigation.
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
To construct the bar graph, plot the average times for each activity (33s for resting, 25s for walking, and 18s for running) on the Y-axis against the activity types on the X-axis. Ensure to label both axes appropriately.
Step 5
State a conclusion that can be drawn from the results of this investigation.
97%
117 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Increasing physical activity increases the respiration rate.
Step 6
Suggest an explanation for the results obtained in this investigation.
97%
121 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Increased respiration/activity produces more carbon dioxide. The body requires more ATP/energy during physical activities, leading to increased respiration effort.
