Question 8

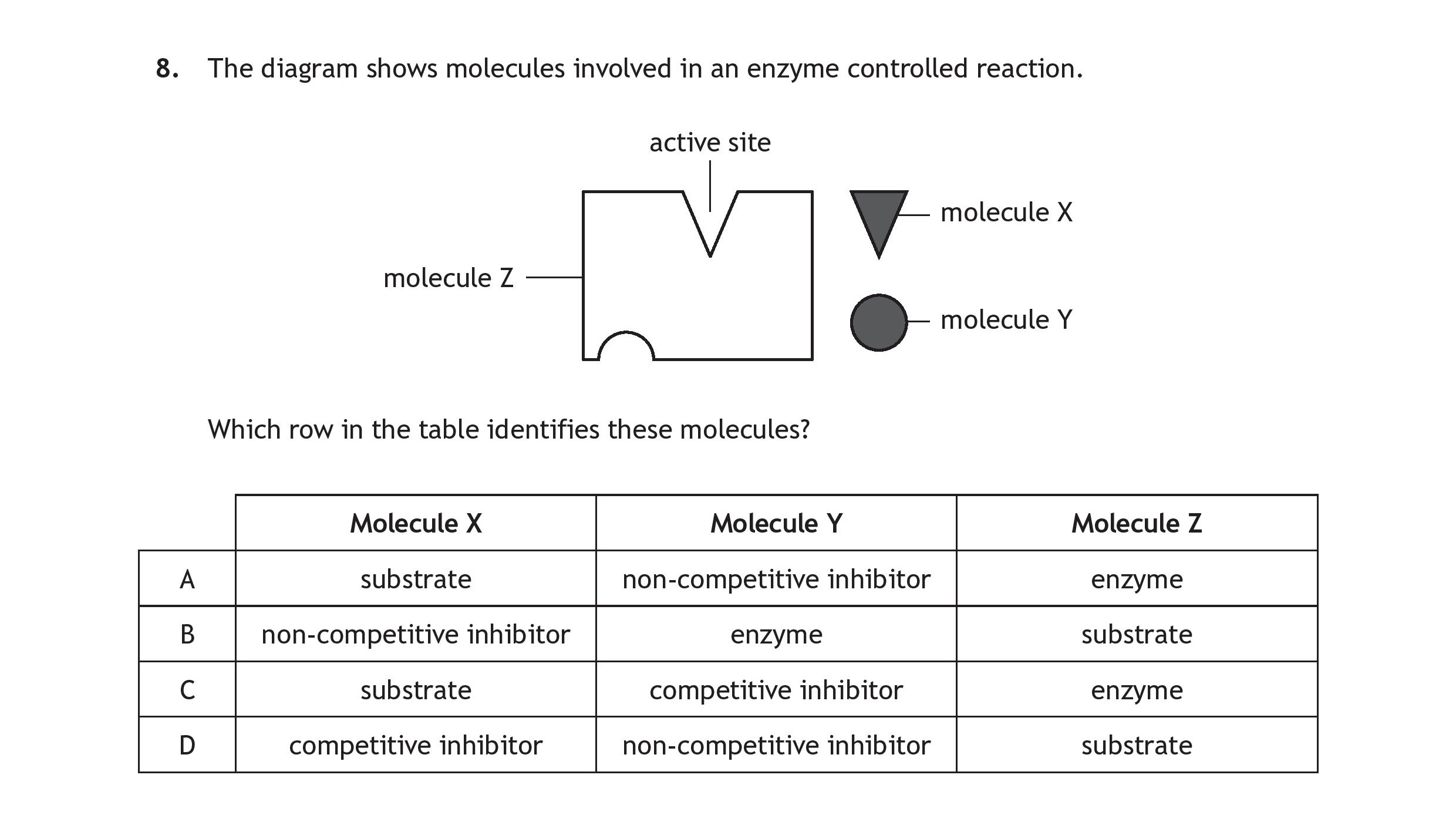

The diagram shows molecules involved in an enzyme controlled reaction.
active site
molecule Z
molecule Y
Which row in the table identifies these molecules?
| Mo... show full transcript
Worked Solution & Example Answer:The diagram shows molecules involved in an enzyme controlled reaction - Scottish Highers Human Biology - Question 8 - 2019
Step 1
Identify Molecule X
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Molecule X fits into the active site, indicating it is the substrate. The substrate is the molecule that an enzyme acts upon during a reaction.
Step 2
Identify Molecule Y
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Molecule Y is shown as a non-competitive inhibitor. This type of inhibitor binds to an enzyme at a site other than the active site, preventing the enzyme from functioning properly.
Step 3
Identify Molecule Z
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Molecule Z is classified as the enzyme itself, which acts upon the substrate (Molecule X) in the enzyme-controlled reaction.
Step 4
Select the Correct Row
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Based on the identification of the molecules, the correct row in the table is A: Molecule X is a substrate, Molecule Y is a non-competitive inhibitor, and Molecule Z is an enzyme.
