The diagram below represents three chemical reactions in the energy investment phase of glycolysis - Scottish Highers Human Biology - Question 4 - 2015
Question 4

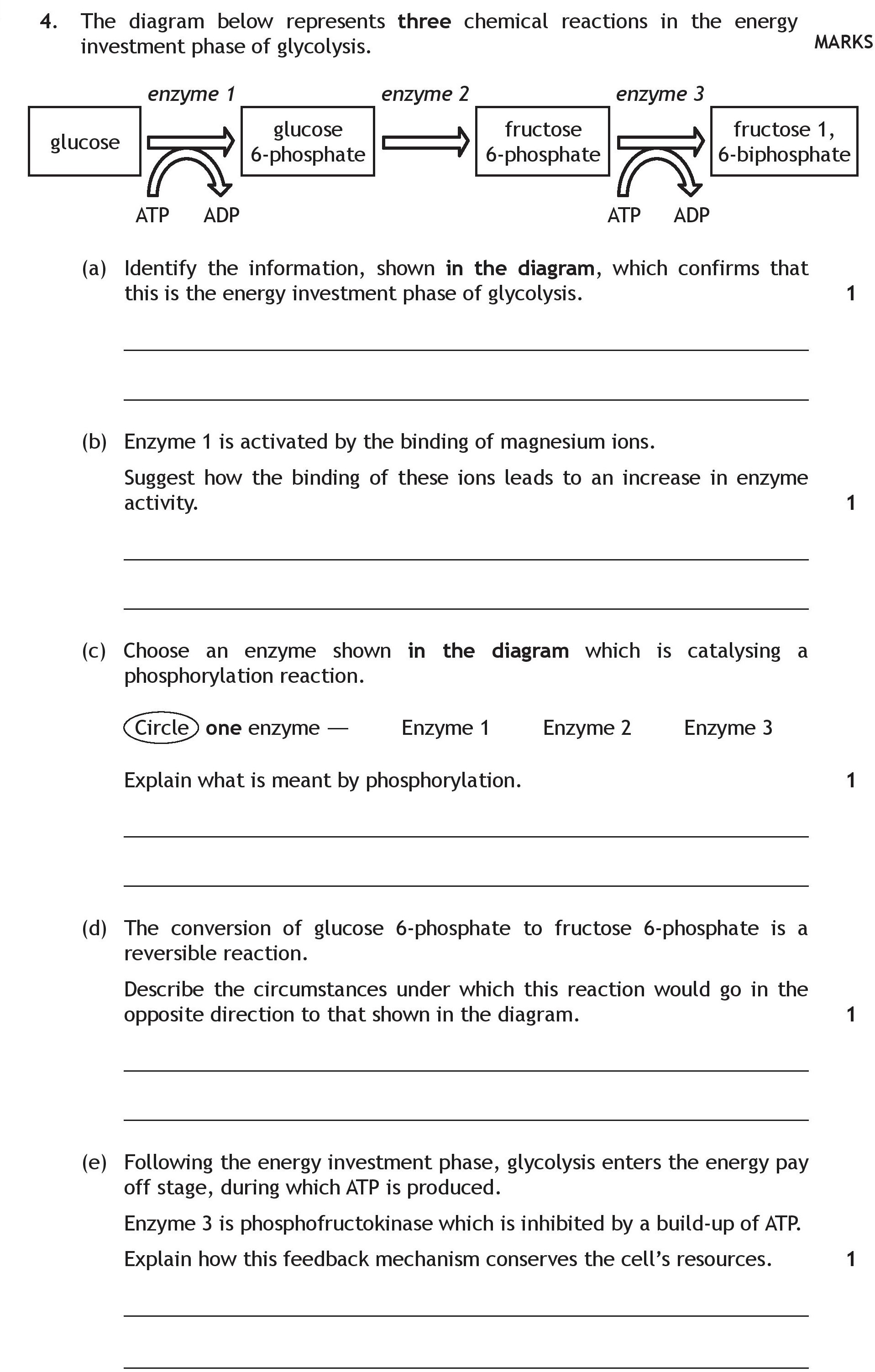

The diagram below represents three chemical reactions in the energy investment phase of glycolysis.
(a) Identify the information, shown in the diagram, which confir... show full transcript
Worked Solution & Example Answer:The diagram below represents three chemical reactions in the energy investment phase of glycolysis - Scottish Highers Human Biology - Question 4 - 2015
Step 1
Identify the information, shown in the diagram, which confirms that this is the energy investment phase of glycolysis.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
ATP is broken down/used up/converted to ADP.
Step 2
Suggest how the binding of magnesium ions leads to an increase in enzyme activity.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The binding of magnesium ions changes the shape/form of the active site to fit the substrate molecule better. This increases the enzyme's affinity for the substrate and lowers the activation energy.
Step 3
Choose an enzyme shown in the diagram which is catalysing a phosphorylation reaction.
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Enzyme 1 or Enzyme 3.
Explanation: Phosphorylation refers to the transfer of a phosphate group (from ATP) to a substrate.
Step 4
Describe the circumstances under which this reaction would go in the opposite direction to that shown in the diagram.
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
This reaction is likely to occur when there is a buildup of fructose 6-phosphate or when ATP levels are low, shifting the balance towards glucose 6-phosphate.
Step 5
Explain how this feedback mechanism conserves the cell’s resources.
97%
117 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
This ensures the cell only uses ATP when required or that glucose is only metabolized when it is needed, thereby preventing unnecessary energy expenditure.
