The diagram shows the cubic graph of $y = f(x)$, with stationary points at $(2, 0)$ and $(0, -2)$ - Scottish Highers Maths - Question 4 - 2023
Question 4

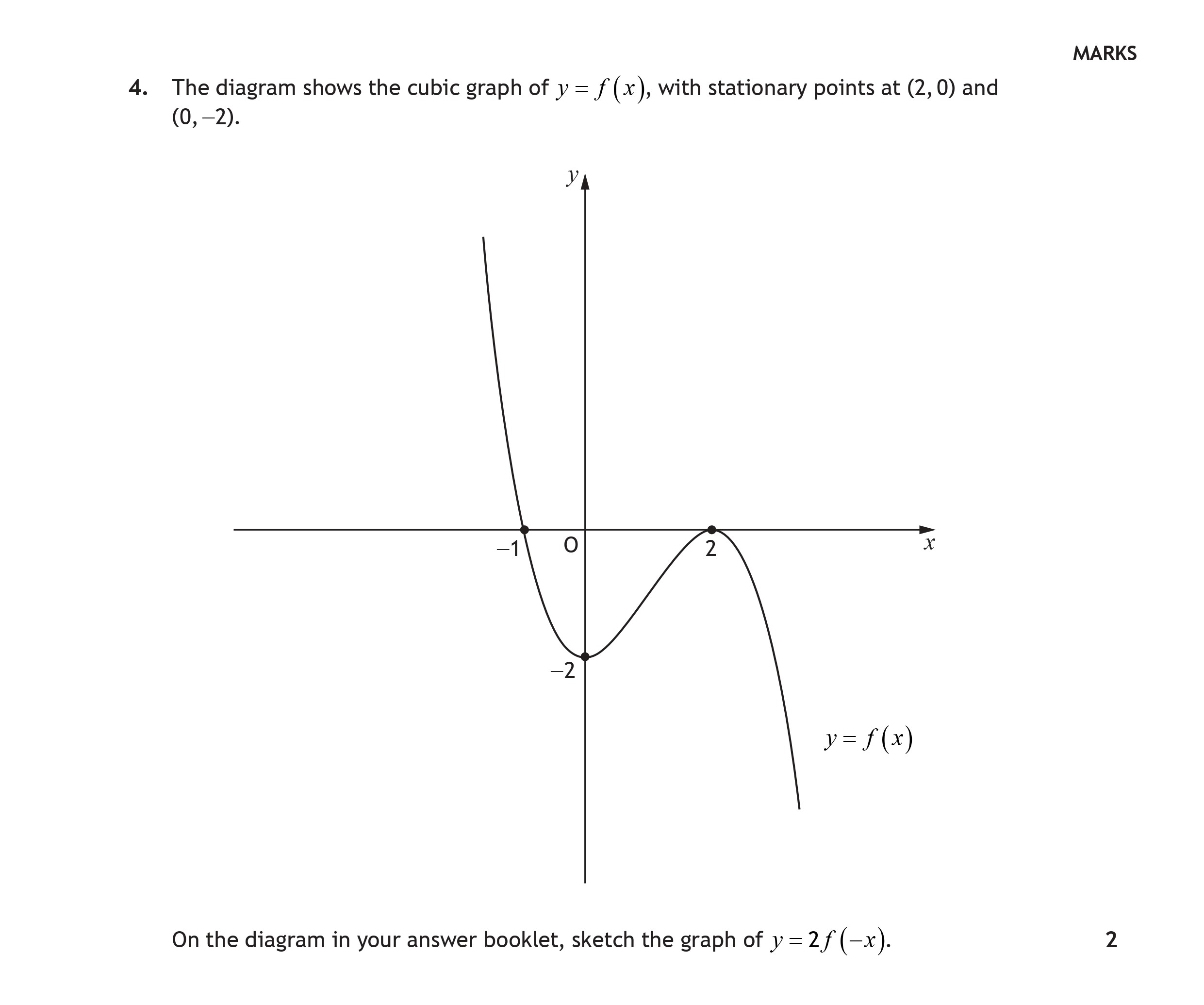

The diagram shows the cubic graph of $y = f(x)$, with stationary points at $(2, 0)$ and $(0, -2)$.
On the diagram in your answer booklet, sketch the graph of $y = ... show full transcript
Worked Solution & Example Answer:The diagram shows the cubic graph of $y = f(x)$, with stationary points at $(2, 0)$ and $(0, -2)$ - Scottish Highers Maths - Question 4 - 2023
Step 1
Reflect in the y-axis
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
To sketch y=2f(−x), start by reflecting the original graph y=f(x) in the y-axis. This means that all points (x,y) will transform to (−x,y).
Step 2
Apply vertical scaling
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Next, apply a vertical scaling of 2. This means that for each point (−x,y) on the reflected graph, the new point will be (−x,2y). Hence, the y-coordinates will be doubled.
Step 3
Sketch the final graph
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Finally, sketch the transformed graph using the adjustments made. The graph will now have the same shape but will be vertically stretched and reflected across the y-axis.
