Question 10

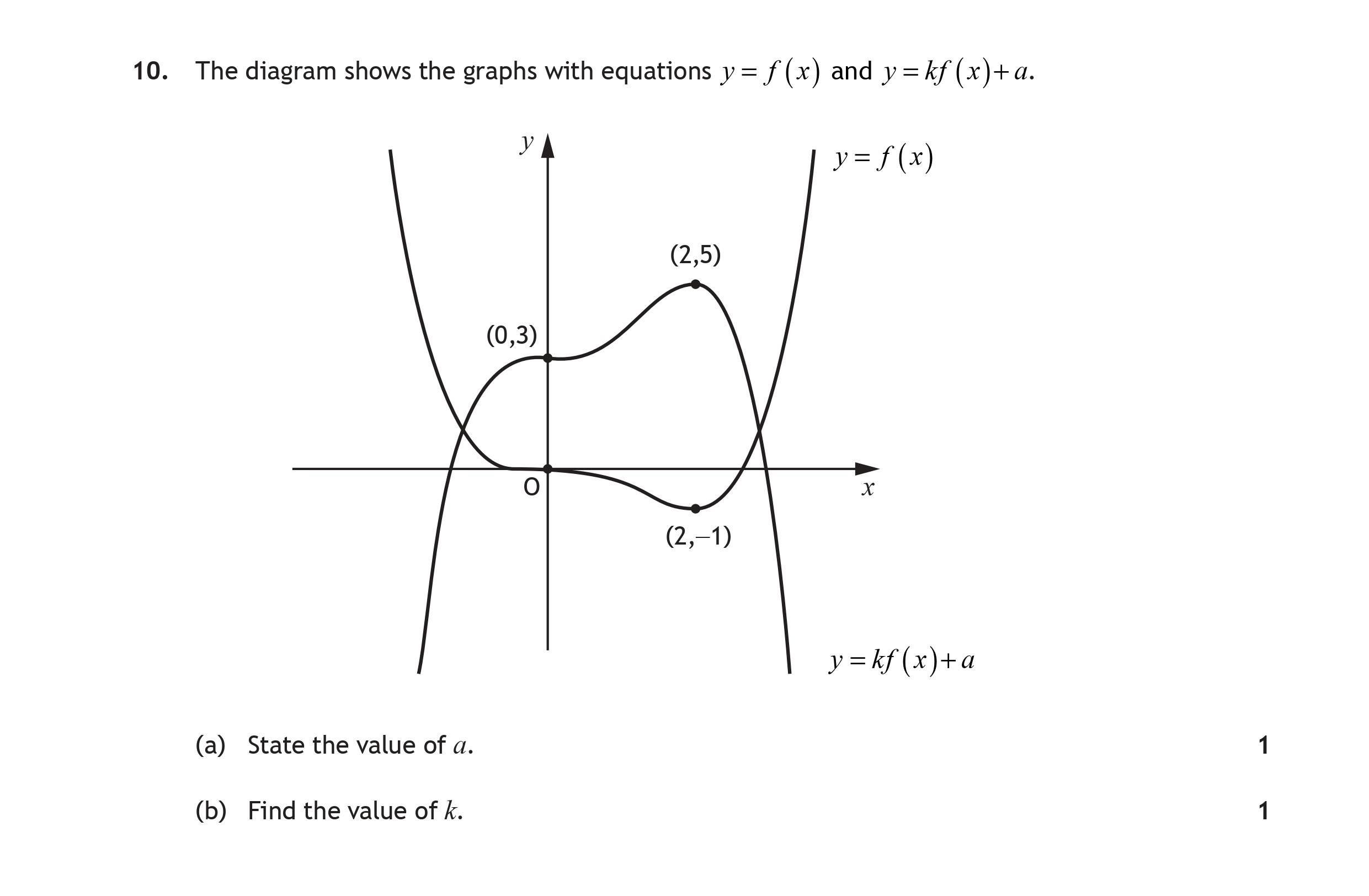

The diagram shows the graphs with equations $y = f(x)$ and $y = kf(x) + a$.
(a) State the value of $a$.
(b) Find the value of $k$.
Worked Solution & Example Answer:The diagram shows the graphs with equations $y = f(x)$ and $y = kf(x) + a$ - Scottish Highers Maths - Question 10 - 2019
Step 1
State the value of a.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
To find the value of a, observe the vertical shift of the graph of y=kf(x)+a. The graph intersects the y-axis at the point (0, 3). Therefore, the value of a is 3.
Step 2
Find the value of k.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
To determine the value of k, we need to analyze the y-coordinates at a common point between both graphs. At x=2, the graphs meet at (2, 5). The original function f(2)=−2. Using the transformation, we have:
5=k(−2)+3
Solving this yields:
5−3=−2k2=−2kk=−1
Thus, the value of k is -1.
