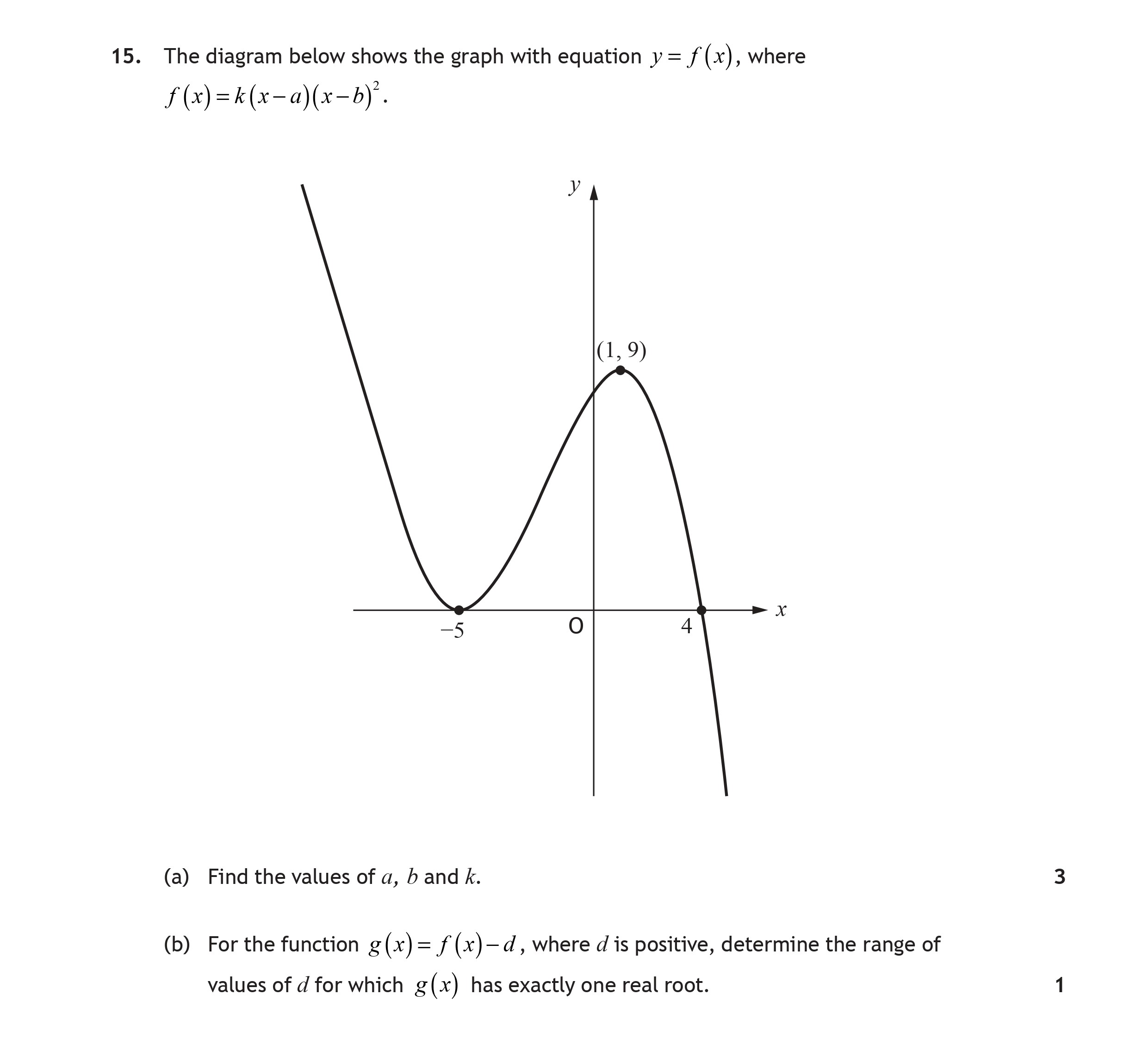

The diagram below shows the graph with equation $y = f(x)$, where
$f(x) = k(x-a)(x-b)$ - Scottish Highers Maths - Question 15 - 2016
Question 15
The diagram below shows the graph with equation $y = f(x)$, where
$f(x) = k(x-a)(x-b)$.
(a) Find the values of $a$, $b$ and $k$.
(b) For the function $g(y) = f(x)... show full transcript
Worked Solution & Example Answer:The diagram below shows the graph with equation $y = f(x)$, where
$f(x) = k(x-a)(x-b)$ - Scottish Highers Maths - Question 15 - 2016
Step 1
Find the values of $a$
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
From the graph, the roots are located at x=−5 and x=4. Based on the positive root structure of the equation, we assign:
a=−5
Step 2
Find the values of $b$
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Thus, we also identify:
b=4
Step 3
calculate $k$
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
To find the value of k, we use the known point (1,9).
Substituting into the equation:
f(1)=k(1−a)(1−b)
We calculate:
f(1)=k(1−(−5))(1−4)9=k(6)(−3)9=−18k
Solving for k yields:
k = - rac{1}{2}
Step 4
For the function $g(y) = f(x) - d$, determine the range of values of $d$
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
For g(y) to have exactly one real root, d must be equal to the maximum value of f(x). From the graph, the maximum value of f(x) occurs at the vertex, which is at (1,9):
Thus, the only value for d that allows g(y) to have exactly one real root is:
d<9
