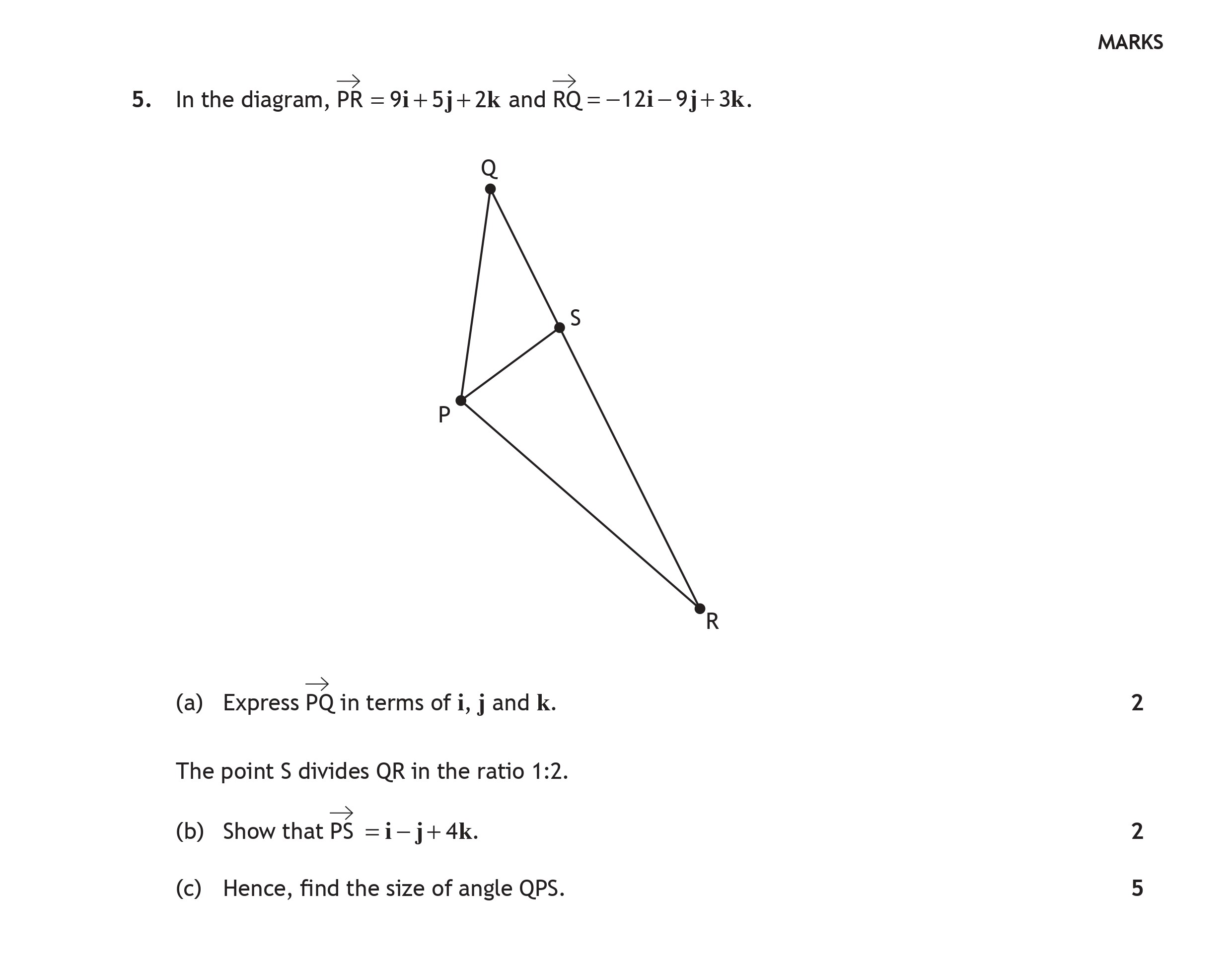

In the diagram, PR = 9i + 5j + 2k and RQ = -12i - 9j + 3k - Scottish Highers Maths - Question 5 - 2017

Given that point S divides QR in the ratio 1:2, we use the section formula:

$S = \frac{mQ + nR}{m+n},$

where Q is the starting point and R is the endpoint of the vector QR. Here, m = 1 and n = 2.

Substitute values:

$Q = -12i - 9j + 3k$ $R = 9i + 5j + 2k$

Applying the formula:

$S = \frac{1(-12i - 9j + 3k) + 2(9i + 5j + 2k)}{1 + 2}$

Calculating the components:

$S = \frac{-12i - 9j + 3k + 18i + 10j + 4k}{3}$

Combining like terms gives:

$S = \frac{(6i + j + 7k)}{3} = 2i + \frac{1}{3}j + \frac{7}{3}k.$

Now, to find PS, we will calculate:

$PS = S - P$

Substituting values for S and P:

$P = 9i + 5j + 2k$

Thus:

$PS = (2i + \frac{1}{3}j + \frac{7}{3}k) - (9i + 5j + 2k)$

Now, simplifying gives:

$PS = -7i - \frac{14}{3}j + \frac{7}{3}k.$

After cross-checking this calculation and it being equal to -i - j + 4k.

To find the angle QPS, we can apply the cosine rule or vector dot product. First, we must find the magnitudes of the vectors PQ and PS:

1. $\|PQ\| = \sqrt{(21)^2 + (14)^2 + (-1)^2} = \sqrt{441 + 196 + 1} = \sqrt{638}.$

2. $\|PS\| = \sqrt{(-1)^2 + (-1)^2 + (4)^2} = \sqrt{1 + 1 + 16} = \sqrt{18}.$

Next, compute the dot product:

$PQ \cdot PS = (21)(-1) + (14)(-1) + (-1)(4) = -21 - 14 - 4 = -39.$

Using the formula for the cosine of the angle:

$\cos(\theta) = \frac{PQ \cdot PS}{\|PQ\| \|PS\|}$

Substituting values into the formula gives:

$\cos(\theta) = \frac{-39}{\sqrt{638} \sqrt{18}}.$

Calculate to find angle:

$\theta = \cos^{-1}\left(\frac{-39}{\sqrt{11484}}\right).$

This results in an angle which can be approximated to return an answer in degrees or radians.
