Parents Pricing Home Scottish Highers Maths Straight Line Triangle ABC has vertices A(−5,−12), B(11,−8) and C(−3,6)
Triangle ABC has vertices A(−5,−12), B(11,−8) and C(−3,6) - Scottish Highers Maths - Question 1 - 2019 Question 1

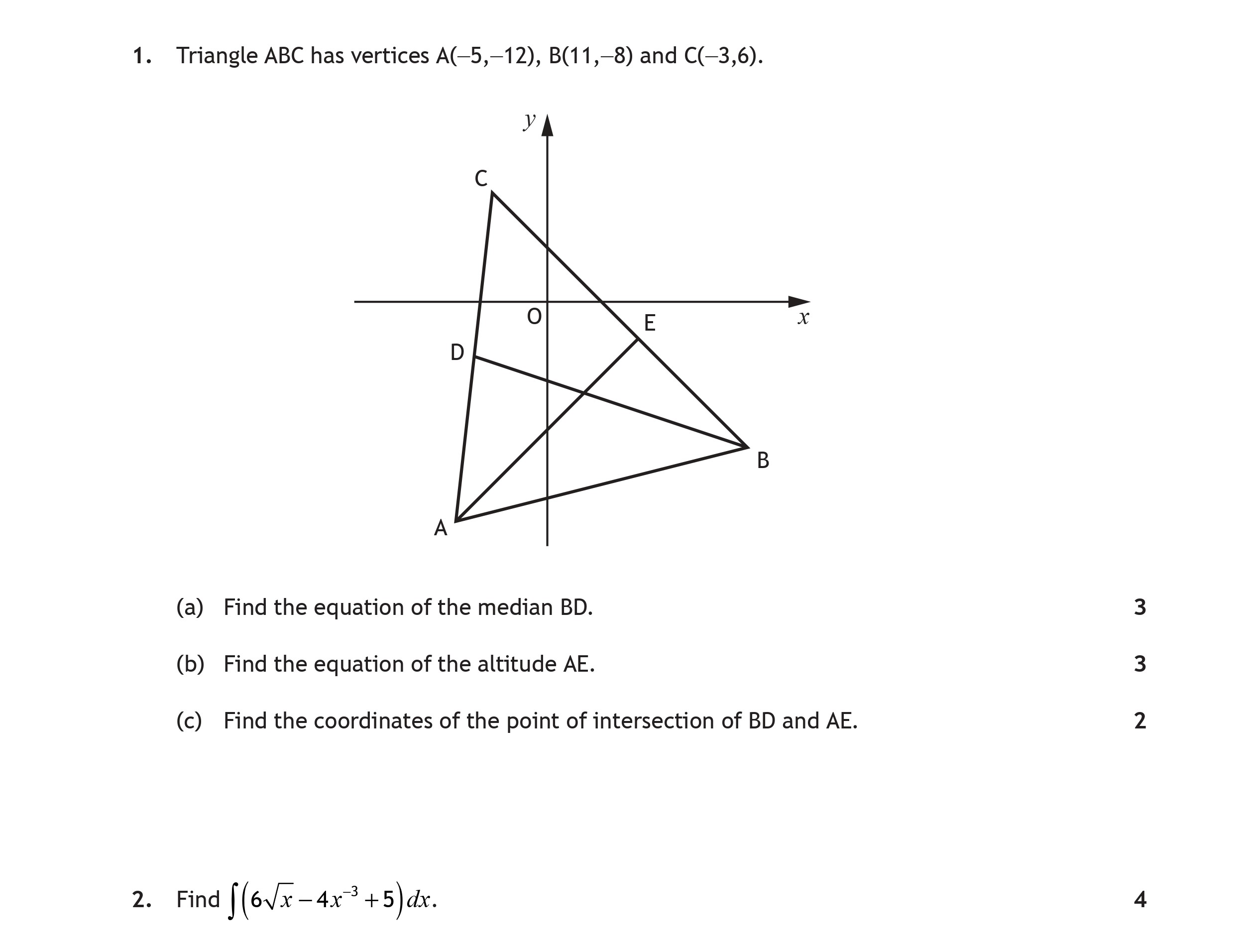

View full question Triangle ABC has vertices A(−5,−12), B(11,−8) and C(−3,6).
(a) Find the equation of the median BD.
(b) Find the equation of the altitude AE.
(c) Find the coordina... show full transcript
View marking scheme Worked Solution & Example Answer:Triangle ABC has vertices A(−5,−12), B(11,−8) and C(−3,6) - Scottish Highers Maths - Question 1 - 2019
Find the equation of the median BD. Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
To determine the equation of median BD, we first find the midpoint E of AC.
Calculate the Midpoint of AC:
Midpoint E can be calculated using the formula:
E = ( x 1 + x 2 2 , y 1 + y 2 2 ) = ( − 5 + ( − 3 ) 2 , − 12 + 6 2 ) = ( − 4 , − 3 ) E = \left( \frac{x_1 + x_2}{2}, \frac{y_1 + y_2}{2} \right) = \left( \frac{-5 + (-3)}{2}, \frac{-12 + 6}{2} \right) = \left( -4, -3 \right) E = ( 2 x 1 + x 2 , 2 y 1 + y 2 ) = ( 2 − 5 + ( − 3 ) , 2 − 12 + 6 ) = ( − 4 , − 3 )
Find the gradient of BD:
The coordinates of B are (11, -8) and E are (-4, -3). The gradient m can be found by:
m B D = y 2 − y 1 x 2 − x 1 = − 3 − ( − 8 ) − 4 − 11 = 5 − 15 = − 1 3 m_{BD} = \frac{y_2 - y_1}{x_2 - x_1} = \frac{-3 - (-8)}{-4 - 11} = \frac{5}{-15} = -\frac{1}{3} m B D = x 2 − x 1 y 2 − y 1 = − 4 − 11 − 3 − ( − 8 ) = − 15 5 = − 3 1
Determine the equation of BD:
Using the point-slope form of the line equation,
y − y 1 = m ( x − x 1 ) y - y_1 = m(x - x_1) \ y − y 1 = m ( x − x 1 )
where (x_1, y_1) is the point B (11, -8):
y − ( − 8 ) = − 1 3 ( x − 11 ) y - (-8) = -\frac{1}{3}(x - 11) y − ( − 8 ) = − 3 1 ( x − 11 )
This simplifies to:
y + 8 = − 1 3 x + 11 3 y + 8 = -\frac{1}{3}x + \frac{11}{3} \ y + 8 = − 3 1 x + 3 11
Rearranging gives:
3 y + 24 = − x + 11 3 y + x = − 13 3y + 24 = -x + 11 \ 3y + x = -13 3 y + 24 = − x + 11 3 y + x = − 13
Thus, the equation of median BD isx + 3 y = − 13 x + 3y = -13 x + 3 y = − 13
Find the equation of the altitude AE. Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
To find the equation of the altitude AE from A to BC, we need to:
Calculate the gradient of BC:
The coordinates of B are (11, -8) and C are (-3, 6). So, the gradient m of BC is:
m B C = 6 − ( − 8 ) − 3 − 11 = 14 − 14 = − 1 m_{BC} = \frac{6 - (-8)}{-3 - 11} = \frac{14}{-14} = -1 m BC = − 3 − 11 6 − ( − 8 ) = − 14 14 = − 1
Use the property of perpendicular lines:
The gradient of AE will be the negative reciprocal of m_{BC}, som A E = 1 m_{AE} = 1 m A E = 1
Determine the equation of AE:
Given A is (−5, −12), using the point-slope form:
y + 12 = 1 ( x + 5 ) y + 12 = 1(x + 5) \ y + 12 = 1 ( x + 5 )
This simplifies to:
y + 12 = x + 5 y = x − 7 y + 12 = x + 5 \ y = x - 7 y + 12 = x + 5 y = x − 7
Therefore, the equation of altitude AE isy = x − 7 y = x - 7 y = x − 7
Find the coordinates of the point of intersection of BD and AE. Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
To find the intersection of the two lines, we solve the equations:
Set Equations Equal:
From BD:x + 3 y = − 13 x + 3y = -13 x + 3 y = − 13
From AE:y = x − 7 y = x - 7 y = x − 7
Substitute y from AE into BD:
x + 3(x - 7) = -13 \
Simplifying gives:x + 3 x − 21 = − 13 4 x − 21 = − 13 4 x = 8 x = 2 x + 3x - 21 = -13 \ 4x - 21 = -13 \ 4x = 8 \ x = 2 x + 3 x − 21 = − 13 4 x − 21 = − 13 4 x = 8 x = 2
Find y Coordinate:
Substituting x = 2 x = 2 x = 2 y = 2 − 7 = − 5 y = 2 - 7 = -5 y = 2 − 7 = − 5
Therefore, the coordinates of the intersection point are (2, -5).
